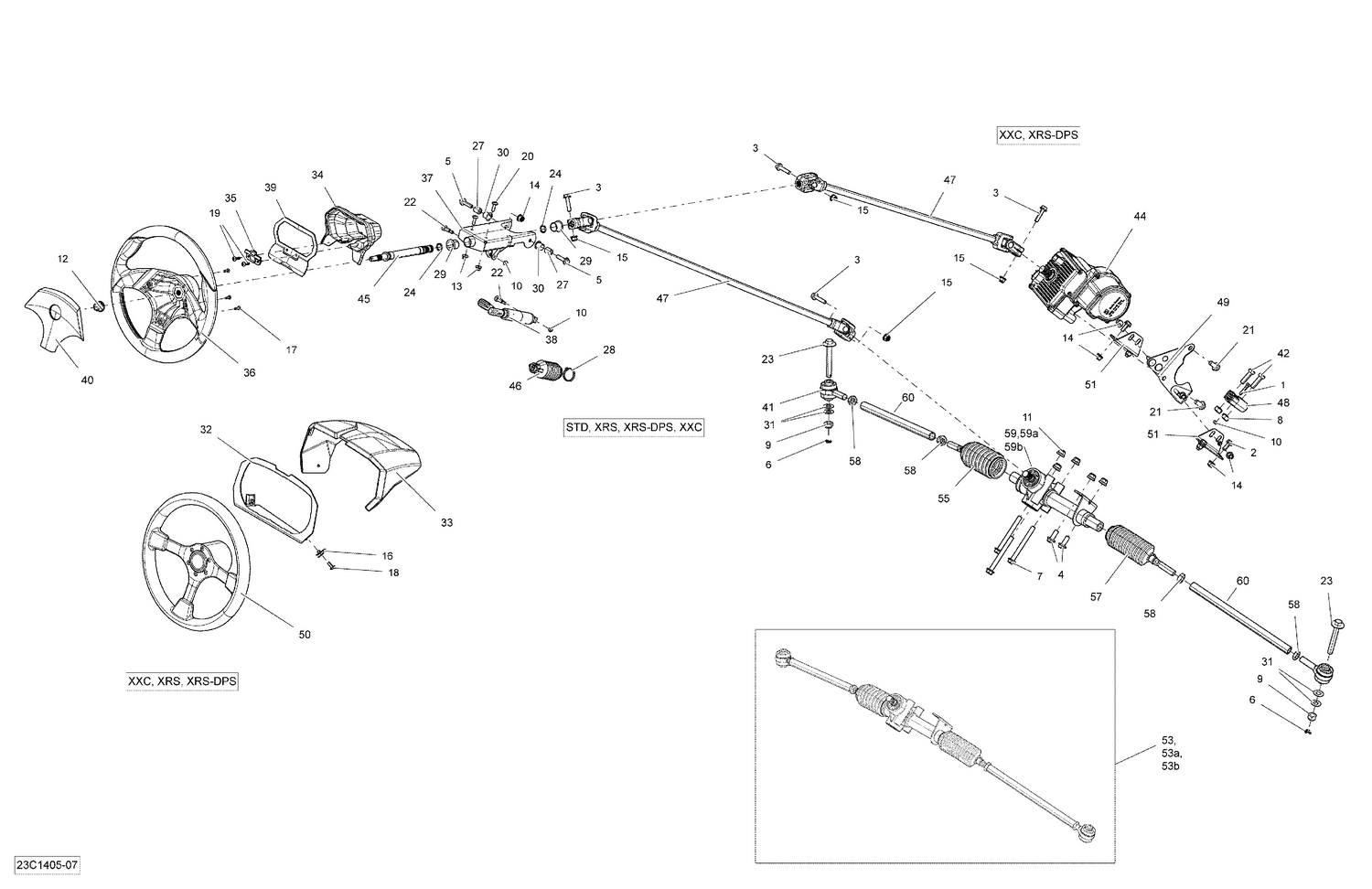

07- Steering
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063044 | Hex. Screw M6 X 30 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 | 207602546 | Hex. Flange Screw M10 X 25 |
| 5 | 207683044 | Hex. Flange Screw M8 X 30 |
| 6 | 211400017 | Cotter Pin |
| 7 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 8 | 232500416 | Elastic Stop Nut M10 |
| 9 | 232521416 | Elastic Stop Nut M12 |
| 10 | 232561414 | Elastic Stop Nut M6 |
| 11 | 233201436 | Hex. Flange Elastic Nut M10 |
| 12 | 233221414 | Hex. Flange Elastic Nut M12 |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 |
| 15 | 233281416 | Hex. Elastic Flange Nut M8 |
| 16 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 17 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 18 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 19 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 20 | 250000350 | Torx Truss Screw M6 X 20 |
| 21 | 250001134 | Hex. Flange Screw M10 X 20 This part replaces 250000601. |
| 22 | 250000649 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 23 | 250000657 | Hexagonal Screw M12 X 88 |
| 24 | 293300144 | O-Ring |
| 27 | 293900106 | Bushing |
| 28 | 414115200 | Tie-Rap 180 mm |
| 29 | 709402725 | Steering Bushing This part replaces 415108000. |
| 30 | 705600799 | Bushing |
| 31 | 706200281 | Hardened Washer This part replaces 250200086. |
| 32 | 707900013 | Cluster Support |
| 33 | 707900124 | Upper Cluster Cover |
| 34 | 709400514 | Speedometer Cover |
| 35 | 709400573 | Latch Indicator Cover |
| 36 | 709400650 | Steering Wheel |
| 37 | 709401391 | Painted Steering Wheel Support This part replaces 709400655. |
| 38 | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 39 | 709400760 | Cluster Support |
| 40 | 709400780 | Steering Center |
| 41 | 709401125 | Ball Joint |
| 42 | 207103586 | Hex. Screw M10 X 35 |
| 44 | 709401406 | Power Steering |
| 45 | 709401167 | Steering Shaft |
| 46 | 709401232 | Boot Tube Side |
| 48 | 709401294 | COUPLING - Call your local BRP dealership |
| 49 | 709401296 | SUPPORT - Call your local BRP dealership |
| 50 | 715001134 | STEERING WHEEL KIT - Call your local BRP dealership |
| 51 | 709401339 | SUPPORT - Call your local BRP dealership |
| 53 | XXX | Not Available As Spare Parts |
| 55 | 715900235 | Boot Kit, Pinion Side |
| 57 | 715900236 | Boot Kit, Tube Side |
| 58 | 715900238 | Steering Rod Nut |
| 59 | XXX | Not Available As Spare Parts |
| 60 | 709401427 | Tie Rod |
