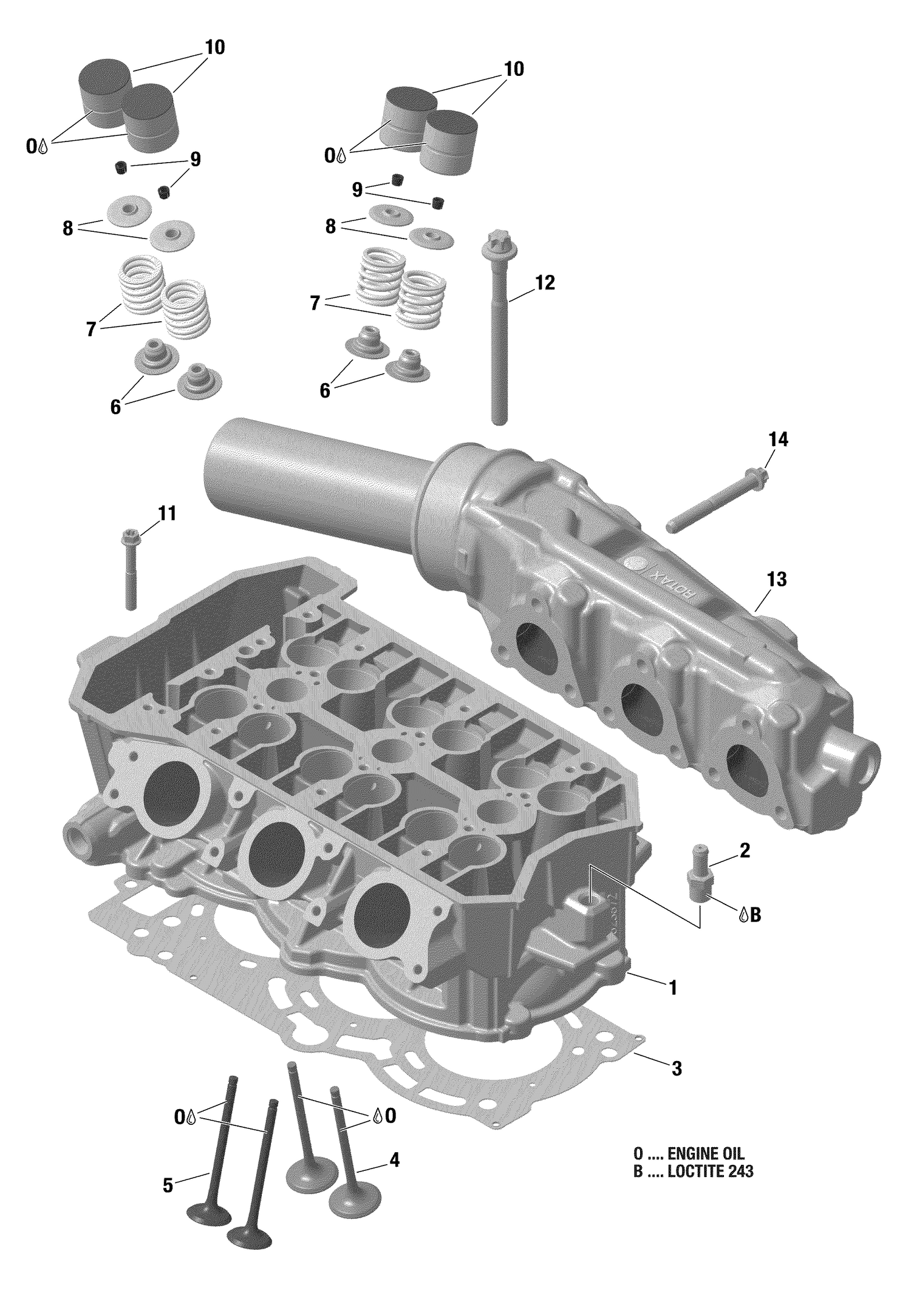

01- Cylinder Head And Exhaust Manifold - 903
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420213265 | Cylinder Head Ass'y This part replaces 420623878. |
| 2 | 420441420 | Hose Nipple |
| 3 | 420431813 | Cylinder Head Gasket |
| 4 | 420855131 | Intake Valve 29MM |
| 5 | 420855146 | Exhaust Valve 25 MM This part replaces 420855148. |
| 6 | 420431671 | Valve Stem Seal |
| 7 | 420939540 | Valve Spring |
| 8 | 420855150 | Valve Spring Retainer |
| 9 | 420254630 | Cotter Valve |
| 10 | 420855165 | Valve Lifter Bucket This part replaces 420855164. |
| 11 | 420440324 | Torx Flange Screw M6 X 45 |
| 12 | 420940945 | Torx Flange Screw M9 X 113 |
| 13 | 420673511 | Exhaust Manifold This part replaces 420673510. |
