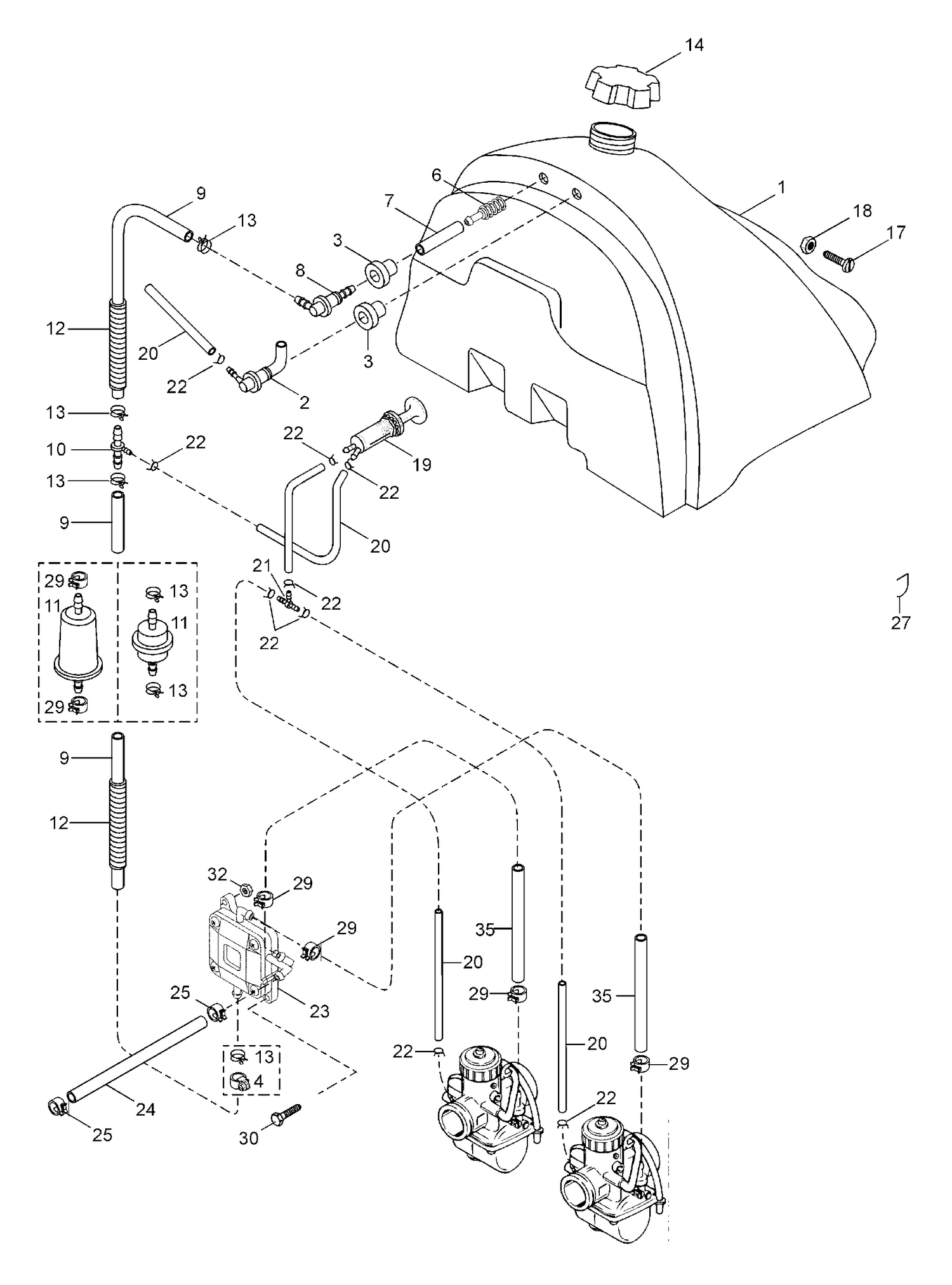

02- Fuel Tank
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5243838 | Fuel tank |
| 2 | 5442152 | Air vent fitting a’ssy |
| 3 | 280000674 | Grommet This part replaces 28037. |
| 4 | 27040 | Clamp |
| 6 | 414872100 | Fuel filter |
| 7 | 39048 | Fuel line 12.5/7.5 |
| 8 | 5341709 | CONNECTOR-MALE - Call your local BRP dealership |
| 9 | 39046 | Hose 11/8 |
| 10 | 415119300 | Plastic T-fitting (Prime |
| 11 | 414536500 | Fuel filter |
| 12 | 28012 | Tubing |
| 13 | 27119F | Clamp |
| 14 | 513033025 | Fuel Tank Cap This part replaces 572230500. |
| 17 | 40211 | Screw M6x35 |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 | 415060500 | Primer This part replaces 414479200. |
| 20 | 39035 | Airhose 5/3 |
| 22 | 543230 | Clamp, primer hode |
| 23 | 403901200 | Fuel pump |
| 24 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 25 | 414420700 | Universal Spring Clamp |
| 27 | 549200 | Gauge decal, empty |
| 29 | 414554800 | Spring clamp |
| 30 | 40193 | Screw M6x50 |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
