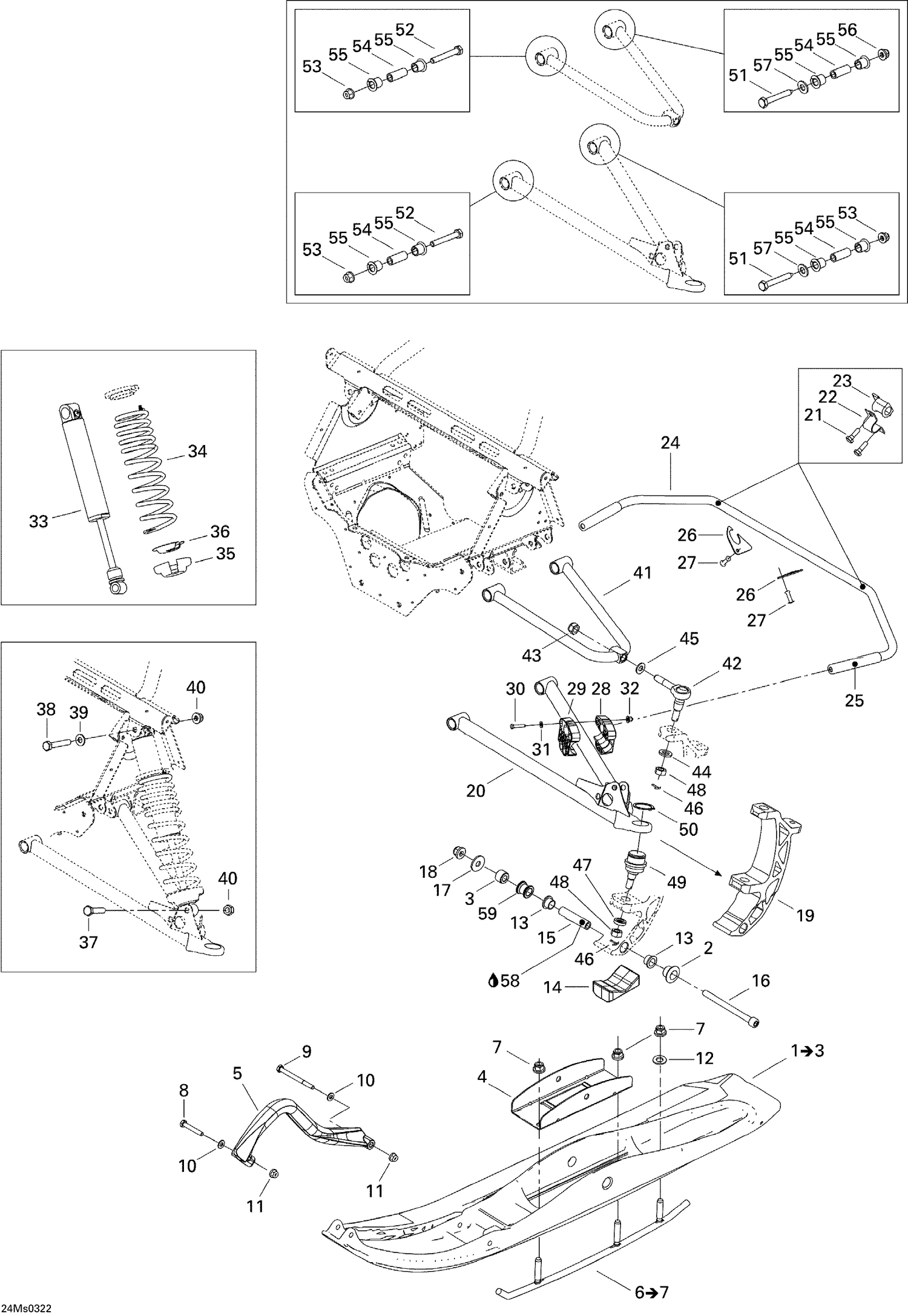

| Ref | Part Number | Description |
|---|
| 2 |
505070743 |
CUSHION - Call your local BRP dealership |
| 3 |
505070823 |
CUSHION - Call your local BRP dealership |
| 4 |
505070745 |
Ski Renforcement |
| 5 |
505070963 |
Black, Handle |
| 7 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 8 |
207085044 |
Hex. Screw M8 X 50 |
| 9 |
230080044 |
SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 10 |
234081410 |
Flat Washer 8 mm |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
399910100 |
Flat Washer |
| 13 |
505072690 |
Leg Bushing This part replaces 505070954. |
| 14 |
505070671 |
Ski Stopper |
| 15 |
506133300 |
Spacer |
| 16 |
250000069 |
Socket Head Screw M10 X 125 |
| 17 |
234002410 |
Flat Washer 10 mm |
| 18 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 19 |
505071214 |
Ski leg |
| 21 |
250000118 |
Hex. Screw With Nylon |
| 22 |
506095800 |
CLAMP - Call your local BRP dealership |
| 23 |
505070665 |
LH BUSHING, 5/8? - Call your local BRP dealership |
| 24 |
505070785 |
Stabilisator |
| 25 |
505070750 |
STABILISATOR BOOT, 5/8? - Call your local BRP dealership |
| 26 |
505070874 |
Plug |
| 27 |
293150103 |
Pop Rivet 3/16" |
| 28 |
505070667 |
RH HALF SLIDER - Call your local BRP dealership |
| 29 |
505070668 |
LH Half Slider |
| 30 |
207152544 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 31 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 32 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 33 |
505071135 |
Front Shock |
| 34 |
505070760 |
Spring |
| 35 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 36 |
706200785 |
Cap This part replaces 503141600. |
| 37 |
207005544 |
Hex. Screw M10 X 55 |
| 38 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 39 |
732900049 |
Washer |
| 40 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 41 |
505071222 |
RH upper arm |
| 42 |
505071110 |
Upper ball joint |
| 43 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 44 |
234021410 |
Flat Washer 12 mm |
| 45 |
503189276 |
Washer |
| 46 |
211400017 |
Cotter Pin |
| 47 |
505071184 |
Washer |
| 48 |
232221414 |
Hex. Castellated Nut M12 |
| 49 |
505071074 |
Lower Ball Joint |
| 50 |
293370035 |
Circlip |
| 51 |
250000114 |
Cone Screw M10 X 75 |
| 52 |
207007044 |
Hex. Screw M10 X 70 |
| 53 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 54 |
505070960 |
Aluminium Bushing |
| 55 |
505070566 |
Arm Bushing |
| 56 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 57 |
503189564 |
Washer |
| 58 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 505070881 |
Coussinet |
DR, 5/8" - Appelez votre concessionnaire BRP local 505070881 |
| 505070881 |
RH |
BUSHING, 5/8 - Call your local BRP dealership 505070881 |
| 505071047 |
LH |
Ski, Black Ass'y 505071047 |
| 505071047 |
Ski |
GA Ass., Noir 505071047 |
| 505071296 |
Bras |
Inférieur DR 505071296 |
| 505071296 |
RH |
Lower Arm 505071296 |
| 860512800 |
Bras |
Inférieur Ass. GA - Appelez votre concessionnaire BRP local This part replaces 505071281. 860512800 |
| 860512800 |
LH |
LOWER ARM ASS'Y - Call your local BRP dealership This part replaces 505071281. 860512800 |
