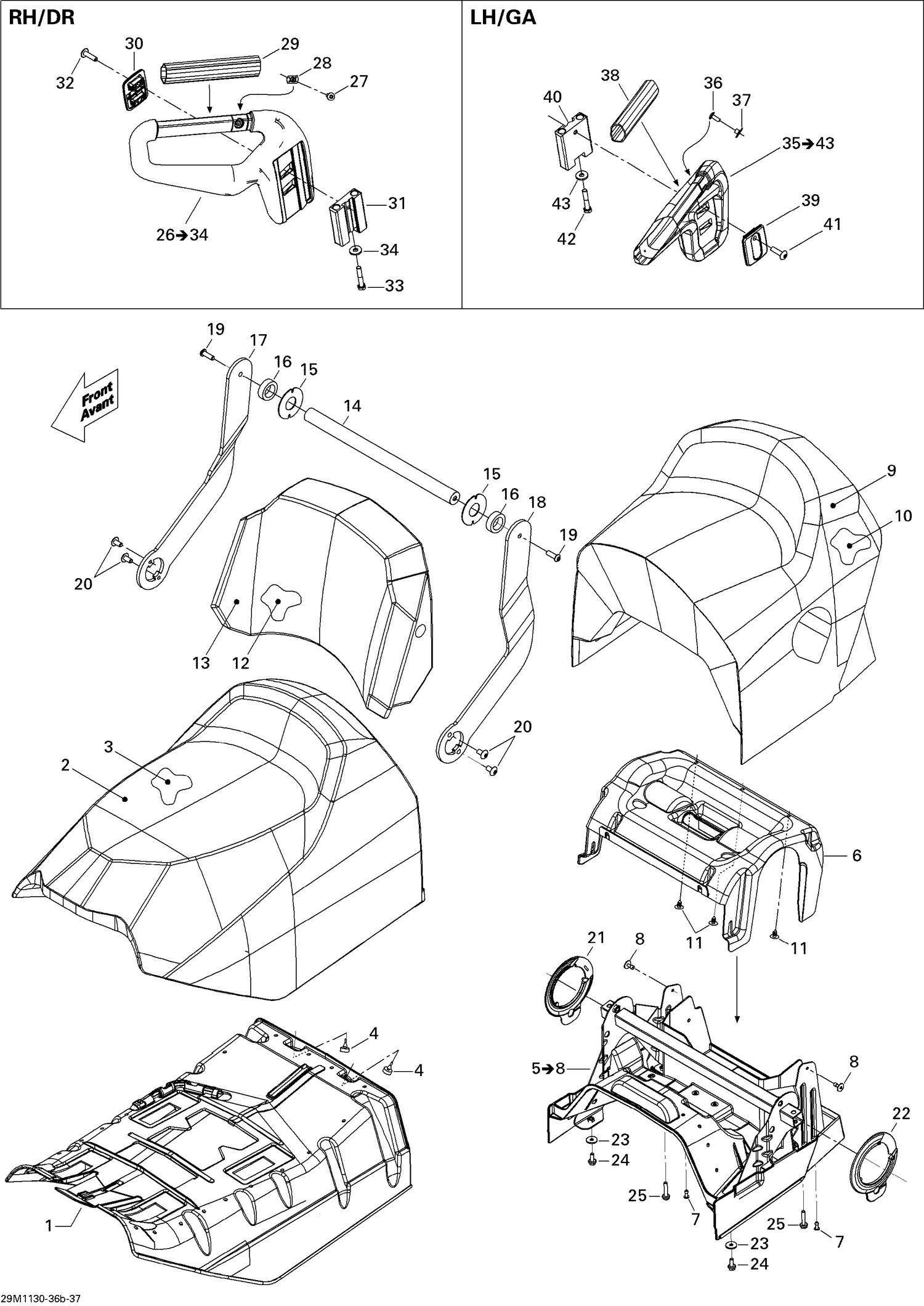

09- Seat
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004775 | Front Seat Base |
| 2 | 510005181 | Seat Cover |
| 3 | 510004777 | Front Seat Foam |
| 4 | 708000759 | Rubber Stopper |
| 6 | 510004423 | Foam Support |
| 7 | 390410100 | Pop Rivet 3/16” |
| 8 | 293150100 | Pop Rivet 3/16" |
| 9 | 510005187 | Seat Cover |
| 10 | 510004791 | Rear Seat Foam |
| 11 | 414644300 | Black, Dart |
| 12 | 510004782 | Backrest Foam |
| 13 | 510005309 | Backrest Cover |
| 14 | 510004377 | Upper Backrest Axle |
| 15 | 510004379 | Washer |
| 16 | 510004378 | Rubber Shim |
| 17 | 510004373 | RH ARM, BLACK - Call your local BRP dealership |
| 18 | 510004375 | LH ARM, BLACK - Call your local BRP dealership |
| 19 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 20 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 21 | 510004883 | Spacer RH |
| 22 | 510004884 | SPACER LH - Call your local BRP dealership |
| 23 | 224061201 | Flat Washer |
| 24 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 25 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 27 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 28 | 293100003 | Nut Welded, M6 |
| 29 | 510004449 | Handle Grip |
| 30 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 31 | 510005218 | HANDLE LINK - Call your local BRP dealership |
| 32 | 250000745 | Hex Torx Truss M8 X30 This part replaces 250000197. |
| 33 | 207084544 | Hex. Screw M8 X 45 |
| 34 | 503183200 | Yellow, Washer |
| 36 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 37 | 293100003 | Nut Welded, M6 |
| 38 | 510004449 | Handle Grip |
| 39 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 40 | 510005218 | HANDLE LINK - Call your local BRP dealership |
| 41 | 250000745 | Hex Torx Truss M8 X30 This part replaces 250000197. |
| 42 | 207084544 | Hex. Screw M8 X 45 |
