Parts Catalog

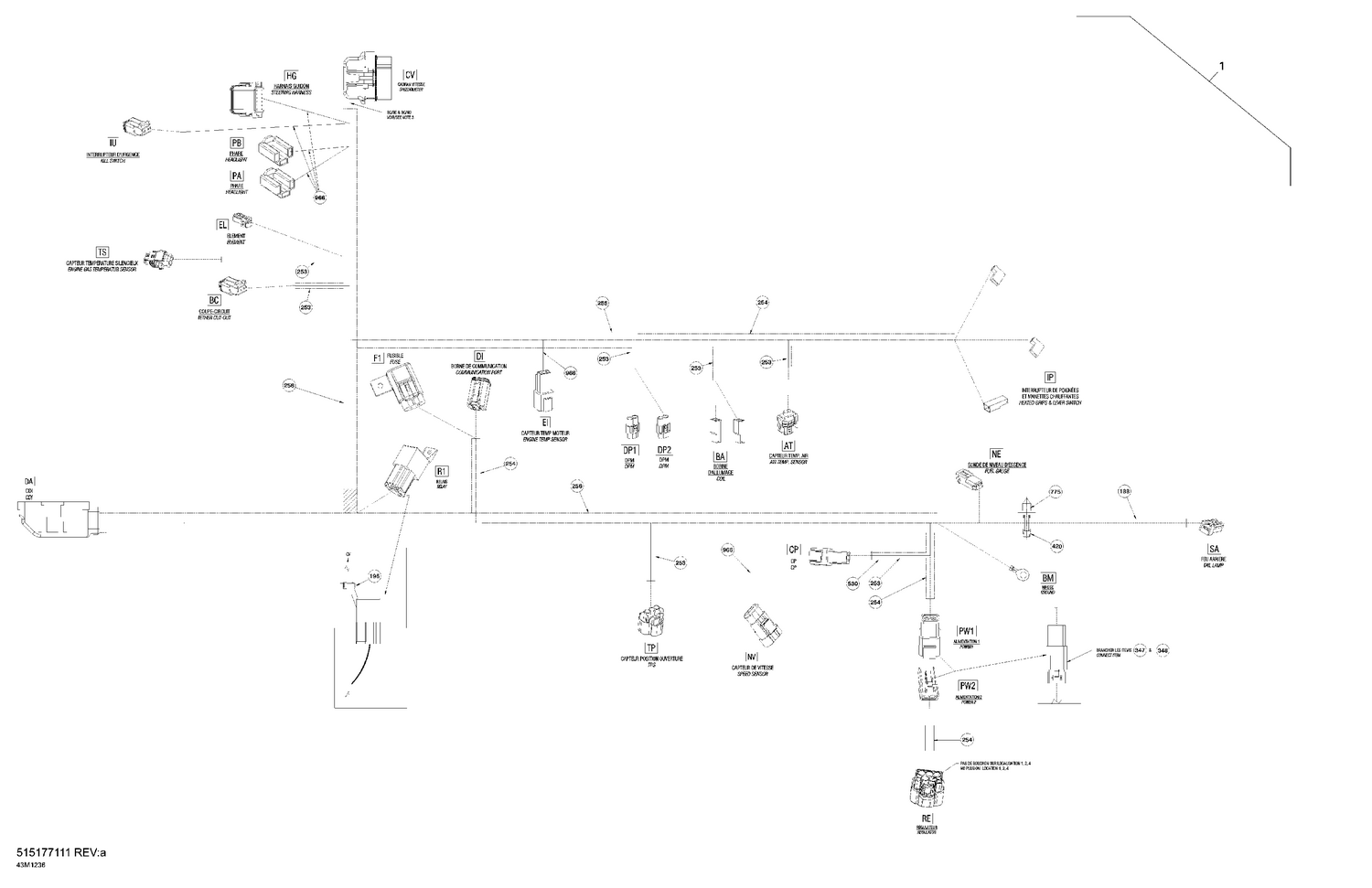

10- Electrical Harness

Parts (94)

Ref	Part Number	Description
AT	515176890	Female Terminal Housing
AT	710001163	Wire Seal
AT	710001164	Female Terminal
BA	409010100	Female Terminal
BA	409010400	Female Terminal Housing, 1 Circuit
BC	278000632	Female Terminal
BC	515175670	Female Terminal Housing, 2 Circuits
BC	515175675	Female Lock, 2 Circuits
BM	278000992	Open Barrel
CP	278000631	Male Terminal
CP	409207500	Male Lock, 2 Circuits
CP	515175665	Male Terminal Housing, 2 Circuits
CV	515175801	Female Housing, 24 Circuits
CV	515175802	Retainer Block
CV	515175803	Wire Seal
CV	515175812	Plug
CV	710000399	Female Housing
CV	710001131	Female Terminal
DA	414115200	Tie-Rap 180 mm
DA	515175806	Female Terminal
DA	515175812	Plug
DA	515176221	Female Housing
DA	515176222	Wire Seal
DA	515176223	Female Terminal Housing, 36 Circuits
DA	515176224	Terminal Support
DA	710001131	Female Terminal
DI	278000632	Female Terminal
DI	293000052	Sealing Cap
DI	515175673	Male Housing, 6 Circuits
DI	515175678	Male Wedge, 6 Circuits
DP1	409012100	Female Terminal
DP1	409012300	Seal
DP1	409209200	Female Terminal Housing, 2 Circuits
DP2	409012100	Female Terminal
DP2	409012300	Seal
DP2	409209200	Female Terminal Housing, 2 Circuits
EI	278000631	Male Terminal
EI	409207500	Male Lock, 2 Circuits
EI	515175665	Male Terminal Housing, 2 Circuits
EL	515175231	Female Terminal
EL	515175658	Female Housing, 2 Circuits
F1	278000805	Cushion
F1	278001325	Fuse Holder
F1	278001326	Fuse Holder Cap
F1	409003900	Fuse, 20 Amperes
F1	710000113	Female Terminal
HG	278000632	Female Terminal
HG	293000052	Sealing Cap
HG	515175679	FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership
HG	515175704	FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership
IP	409010100	Female Terminal
IP	409010300	Female Terminal
IP	409010400	Female Terminal Housing, 1 Circuit
IU	278000632	Female Terminal
IU	515175670	Female Terminal Housing, 2 Circuits
IU	515175675	Female Lock, 2 Circuits
NE	515175232	Male Terminal
NE	515175654	Male Terminal Housing, 2 Circuits
NV	515176164	Male Terminal
NV	515176621	Wire Seal
NV	710000568	Housing
NV	710000992	Clip
PA	515176908	Female Housing
PA	515176909	Terminal
PB	515176908	Female Housing
PB	515176909	Terminal
PW1	278001672	Male Lock, 2 Circuits
PW1	278001674	Mâle Terminal Housing, 2 Circuits
PW1	515175568	Male Terminal
PW2	278001671	Female Lock, 2 Circuits
PW2	278001673	Female Terminal Housing, 2 Circuits
PW2	515175567	Female Terminal
R1	293750002	Tie Wrap 142 mm
R1	409209900	Female Housing, 5 Circuits
R1	561503100	FEMALE TERMINAL - Call your local BRP dealership
R1	710010053	Relay This part replaces 515177041.
RE	515176530	Connector
RE	515176531	Terminal
RE	515176594	Seal
SA	515175231	Female Terminal
SA	515175495	Female Housing, 3 Circuits
TP	515176176	Female Terminal Housing, 3 Circuits
TP	710000335	Female Terminal
TP	710000402	Wire Seal
TS	278001005	Male Housing, 2 Circuits
TS	415128501	Seal
1	515177111	WIRING HARNESS MAIN - Call your local BRP dealership
188	409902000	Tubing 12 mm
253	219704425	Tubing 6 Mm 3000Mm Long
254	219704399	Was 409901700 Tubing (9 mm)
255	219704400	Was 409901800 Tubing (13 mm)
256	219704408	Tubing 16 Mm 1000Mm Long
420	414115200	Tie-Rap 180 mm
775	293730040	Mount Dart
