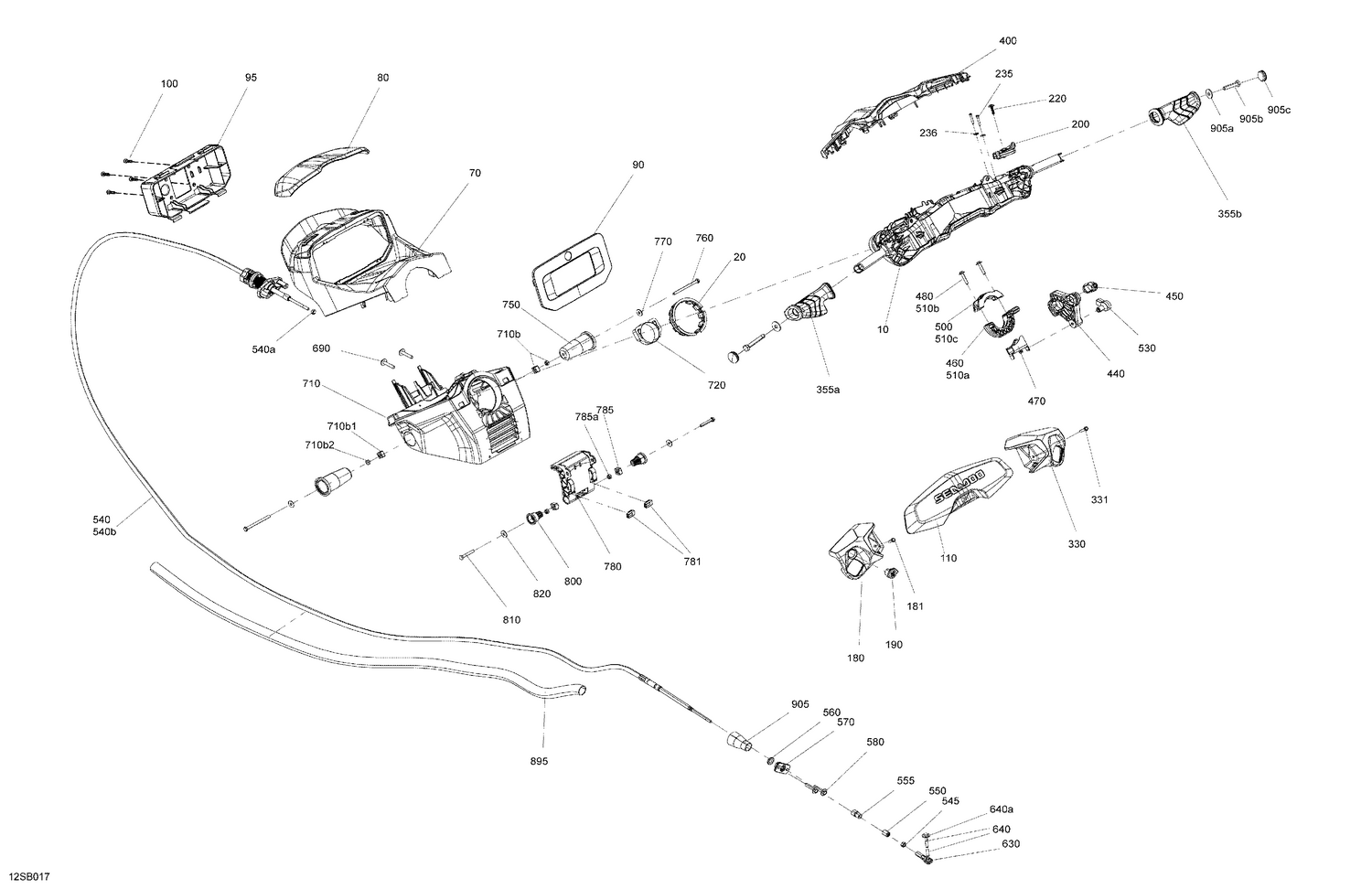

03- Mechanic - Steering
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277002134 | Steering Column |
| 20 | 277001874 | Wear Ring |
| 70 | 277002198 | Gauge Support |
| 80 | 277002160 | Cluster Cover |
| 90 | 705015356 | Speed Gauge Trim |
| 95 | 705015357 | Gauge Housing |
| 100 | 241152060 | Hex. Flange Screw K50 X 20 |
| 110 | 277002242 | Reef Blue, Handlebar Trim |
| 180 | 277002233 | LH Cover |
| 181 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 190 | 277002327 | Red Button Switch This part replaces 277002052. |
| 200 | 277002138 | Hand Lever Accelerator |
| 220 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" |
| 235 | 241142560 | Hex. Flange Screw K40 X 25 |
| 236 | 234042600 | Flat Washer 4 mm, Stainless |
| 330 | 277002236 | RH Cover |
| 331 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 355a | 277002102 | LH Handlebar Grip |
| 355b | 277002101 | RH Handlebar Grip |
| 400 | 277002066 | Steering Cover - No IBR |
| 440 | 295501183 | Steering Arm Kit |
| 450 | 295501183 | Steering Arm Kit |
| 460 | 295501183 | Steering Arm Kit |
| 470 | 277001654 | Spacer |
| 480 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 500 | 277002085 | C Clamp |
| 510a | 295501183 | Steering Arm Kit |
| 510b | 250000399 | Hexagonal Cap Screw M6 X35 |
| 510c | 277002085 | C Clamp |
| 530 | 277002119 | End Fitting Cable |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540b | 277001582 | Wiper Rod |
| 545 | 211100056 | Hex. Nut 1/4"-28 |
| 550 | 277001582 | Wiper Rod |
| 555 | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 630 | 277000775 | Ball Joint |
| 640a | 250000969 | Hex Screw SEMS M6X35, SS |
| 690 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 710b1 | 269500252 | M6 Nut Housing Ass'y |
| 710b2 | 232561200 | Brass Elastic Stop Nut M6 |
| 720 | 277002318 | Wear Ring This part replaces 277001741. |
| 750 | 277001605 | Steering Support Pivot |
| 760 | 207168060 | Hex Screw M6 X 80 |
| 770 | 234062600 | Flat Washer M6, Stainless |
| 780 | 277001996 | Adjustment Handle |
| 781 | 293830208 | Stopper |
| 785a | 232561200 | Brass Elastic Stop Nut M6 |
| 800 | 277001652 | Pivot |
| 810 | 207064060 | Hex. Screw M6 X 40 |
| 820 | 234062600 | Flat Washer M6, Stainless |
| 895 | 276000520 | Corrugated Sheath 22MM - 1250MM |
| 905a | 234062600 | Flat Washer M6, Stainless |
| 905b | 207364560 | Hex. Screw M6 x 45, Scotch Grip |
