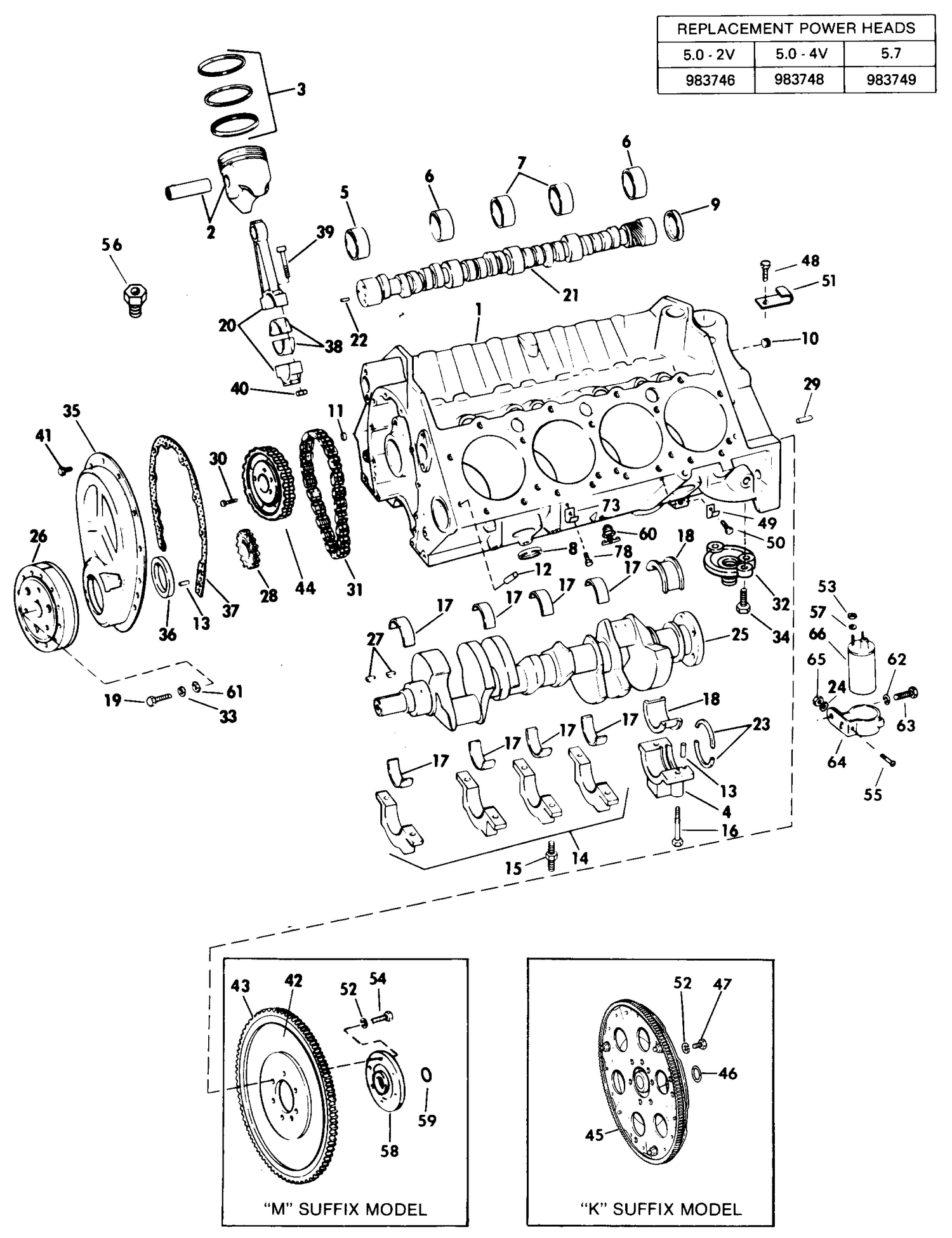

CRANKCASE GROUP

CRANKCASE GROUP

Parts (91)

RefPart NumberDescription
1 14019867 CRANKCASE ASSY
1 14024311 CRANKCASE ASSY
2 0364702 PISTON & ASSY, Std
2 0364703 PISTON & PIN ASSY, .001" O.S.
2 0364704 PISTON & PIN ASSY, .030" O.S.
2 3911020 PISTON & PIN ASSY, Std
2 3911021 PISTON & PIN AASSY, .020" o.s.
2 3911023 PISTON & ASSY, .030" o.s.
3 0328506 PISTON RING SET
3 0328516 PISTON RING SET 020: O.S
3 0370409 PISTON RIGN SET, Std
3 0370419 PISTON RING SET, .020 0s
4 3911007 CAP, Camshaft brg, rear
5 0474005 BEARING, Camshaft #1
6 0474006 BEARING, Camshaft, #2, #4
7 0474007 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side
9 3997752 PLUG, Camshaft bearing, rear
10 0444776 PLUG, Oil gallery,
11 3701638 PLUG, Oil galler, fron, 1/2" dia cup shaped
12 0585927 DOWEL PIN
13 3836903 PILOT PIN, Cam shaft gear
14 3956688 CAP, Crankshaft bearing
17 0462661 BEARING ASSY, Upper #1, std
17 0462664 BEARING ASSY, Lower #1, std
17 0462673 BEARING ASSY, Upper #1, .001" U.S.
17 0462674 BEARING ASSY, Upper #1, .002" U.S.
17 0462677 BEARING ASSY, Lower #1, .001" U.S.
17 0462678 BEARING ASSY, Lower #1, .002" U.S.
17 0464047 BEARING ASSY, #1, .010" U.S.
17 0464048 BEARING ASSY, #1, .020" U.S.
17 3912038 BEARING ASSY, #2 #3, #4, std.
17 3912039 BEARING ASSY, #2, #3, #4, .001" u.s
17 3912040 BEARAING ASSY.-FRONT & INTERMEDIATE,.002"us
17 3912041 BEARING ASSY -EXC REAR, .010'' u.s.
17 3912042 BEARING ASSY 0EXC REAR, .020'' u.s.
18 3912030 BEARING ASSY - REAR, Std
18 3912032 BEARING ASSY - REAR, .001" U.S.
18 3912033 BEARING ASSY - REAR, .002" U.S.
18 3912035 BEARING ASSY - REAR, .010" U.S.
18 3912036 BEARING ASSY - REAR, .020" U.S.
19 9428643 BOLT
20 14031310 CONNECTING ROD ASSY
21 0340284 CAMSHAFT ASSY
22 3836903 PILOT PIN, Cam shaft gear
23 0473424 OIL SEAL SET, Crankshaft rear baering
25 0361982 CRANKSHAFT
25 3932444 CRANKSHAFT
26 6272221 DAMPER ASSY
27 0106751 KEY, Wdf, 3/16" x 3/4"
28 3735413 SPROCKET, Crankshaft
28 3909805 SPROCKET, Crankshaft
29 1453658 DOWEL PIN
30 0443899 BOLT, Camshaft sprocket
31 3735411 CHAIN, Camshaft
32 3952301 ADAPTER & VALVE ASSEMBLY
33 0114607 LOCKWASHER
34 3951644 BOLT, Adapter
35 14050642 COVER, C'case front end
36 3980267 SEAL
37 3799620 GASKET, Front cover
38 3910555 BEARING, Connecting rod, std.
38 3910556 BEARING, Rod, .001" u.s.
38 3910557 BEARING, Rod .002" u.s.
38 3910558 BEARING, Rod, .010" u.s.
38 3910559 BEARING, Rod, .020" u.s.
39 0461372 BOLT, Connecting rod
40 0225854 NUT, Conn rod, 11/32-34
41 5950740 Gasket This part replaces 0460578.
42 0366860 FLYWHEEL
43 3991407 GEAR, Flywheel
44 3735412 SPROCKET, Camshaft
45 0984177 FLYWHEEL & COUPLER
46 0909567 O-RING
47 0839756 B0LT, Flywheel
48 0313117 SCR,Clamp,eng cable
49 0330151 CLAMP, Harness to oil tank boss This part replaces 0309846.
50 0303311 SCR,Clamp,eng cable
52 0136857 L'WASHER,Flywheel
54 0908375 BOLT, Flywheel
55 0306519 SCR,Coil clamp
56 0909641 ADAPTER, Water drain stbd
57 0550757 L'WASHER,Coil term
58 0980994 COUPLING & O-RING ASSY
59 0909567 O-RING
60 0379957 PETCHOCK ASSY, Water drain
61 3739422 WASHER
62 0120177 L'WASHER, Alternator to brkt
63 0306834 BOLT, Throttle lever retainer
64 3852218 BRACKET, Oil cooler This part replaces 0383448.
65 0308335 CLAMP, Coil
