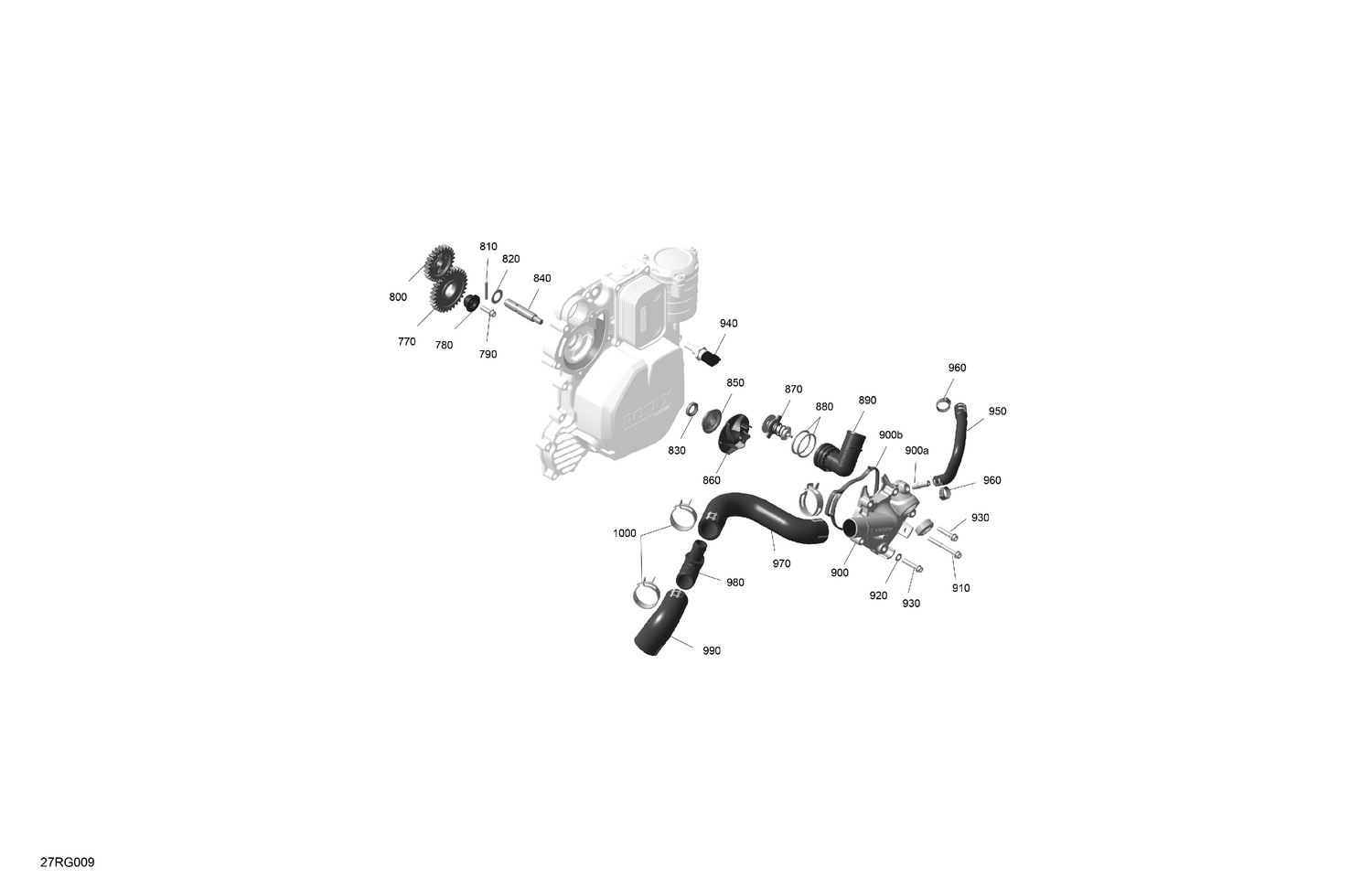

01- ROTAX - Engine Cooling
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 770 | 420835067 | Idle Gear, 31 Teeth |
| 780 | 420947394 | Graduated Spacer |
| 790 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 800 | 420835230 | Waterpump Gear (25 T) |
| 810 | 420232432 | Needle Pin |
| 820 | 420827261 | Thrust Washer 12,5/21,5/1 |
| 830 | 420931802 | Oil Seal BA 12X20X5 FPM |
| 840 | 420820150 | Waterpump Shaft |
| 850 | 420850948 | Seal |
| 860 | 420822750 | Water Impeller |
| 870 | 420822657 | Thermostat |
| 880 | 420950896 | O-Ring |
| 890 | 420922158 | Thermostat cover |
| 900a | 420924925 | Hose Nipple |
| 900b | 420431682 | Gasket |
| 910 | 420440702 | Flanged Torx Screw M6 X 55 |
| 920 | 404146600 | Sealing Washer This part replaces 420227500. |
| 930 | 420440647 | Flanged Torx Screw M6 X 30 |
| 940 | 278002895 | Temperature Sensor |
| 950 | 420822895 | Hose |
| 970 | 420201502 | Molded Hose |
| 980 | 420660551 | T Fitting |
| 990 | 420201507 | Molded Hose |
