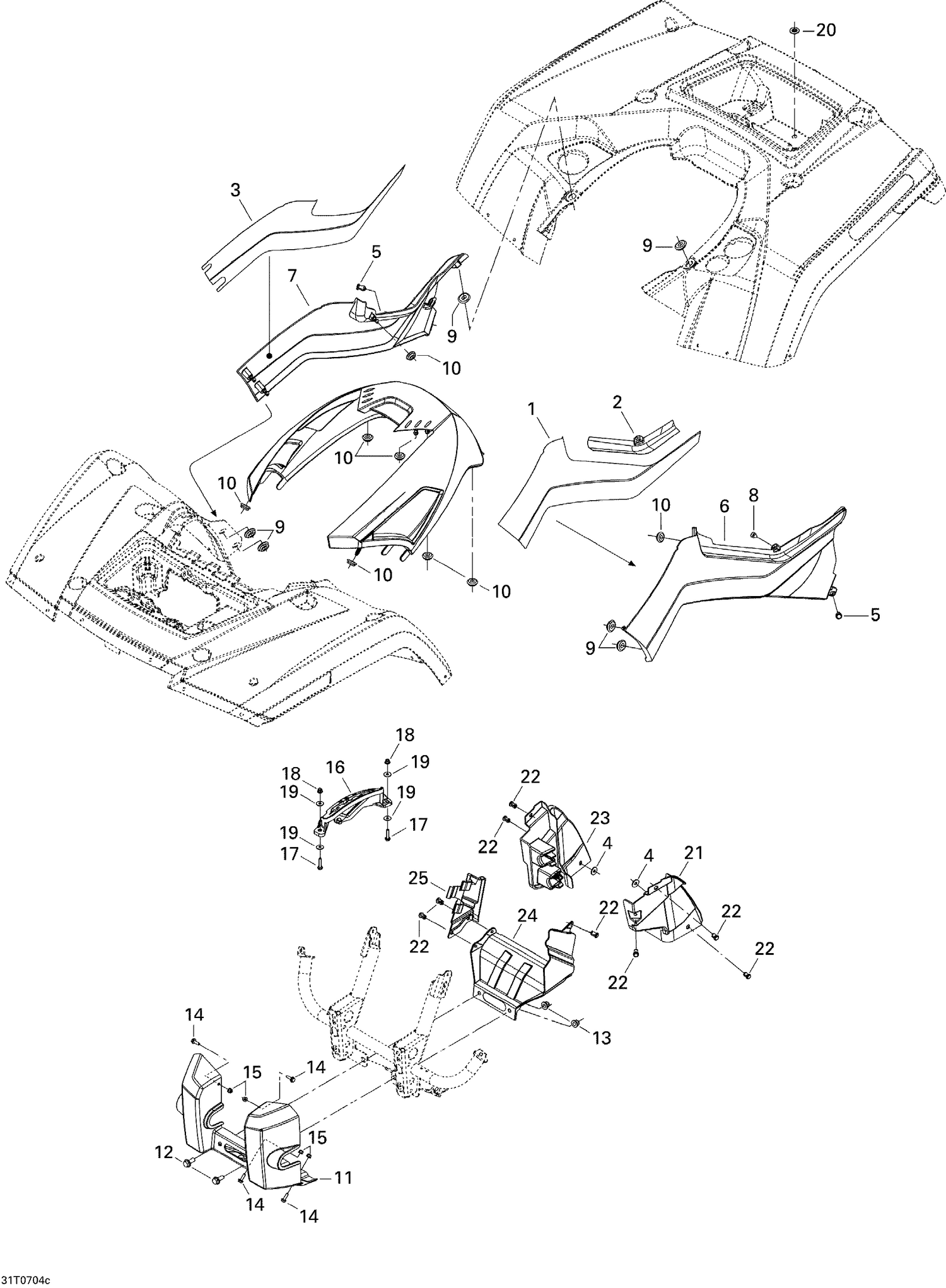

| Ref | Part Number | Description |
|---|
| 1 |
705005620 |
Reflective Sheet This part replaces 705001990. |
| 2 |
705005617 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705001989. |
| 3 |
705005623 |
REFLECTIVE SHEET - Call your local BRP dealership This part replaces 705002126. |
| 4 |
506151252 |
Washer |
| 5 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 8 |
293830005 |
Rubber Bumper |
| 9 |
705005156 |
Oval Washer |
| 10 |
705003264 |
Grommet This part replaces 705002149. |
| 13 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
705003838 |
Lever Indicator This part replaces 705001532. |
| 17 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
224061201 |
Flat Washer |
| 20 |
414859400 |
CAP - Call your local BRP dealership |
| 21 |
705003634 |
LH INNER FENDER - Call your local BRP dealership This part replaces 705002125. |
| 22 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 23 |
705002124 |
RH INNER FENDER - Call your local BRP dealership |
| 24 |
705002988 |
LH DEFLECTOR - Call your local BRP dealership This part replaces 705002134. |
