Parts Catalog

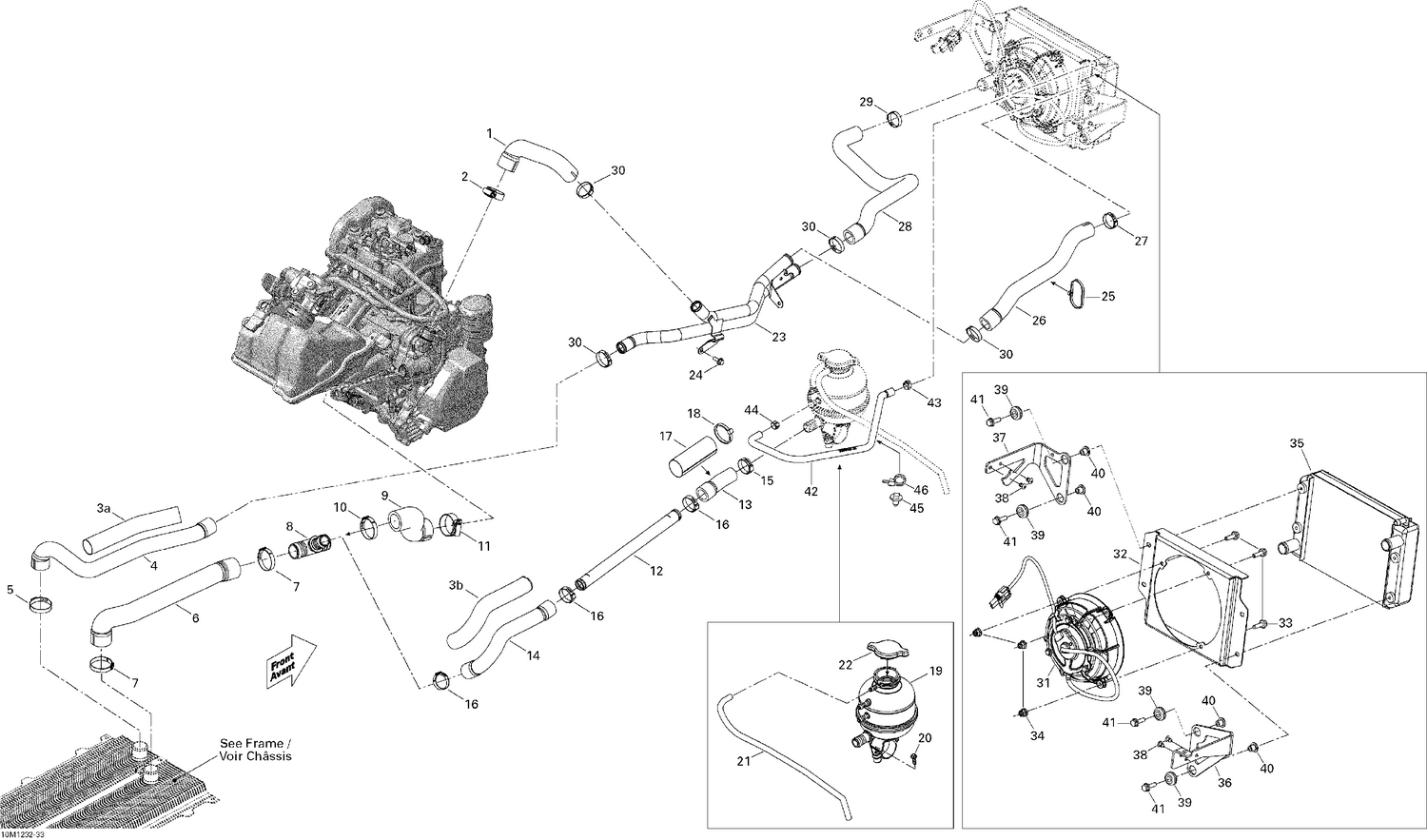

01- Cooling System

Parts (46)

Ref	Part Number	Description
1	509000932	Engine Outlet Hose This part replaces 509000564.
2	509000443	Aba Gear Clamp, 26-38 MM
3a	219704421	Protector Tube 32 Mm 1000Mm Long
3b	219704421	Protector Tube 32 Mm 1000Mm Long
4	509000634	Hose
5	509000529	Oetiker Gear Clamp, 36.5-706R
6	509001062	Radiator Return Hose This part replaces 509000697.
7	509000529	Oetiker Gear Clamp, 36.5-706R
8	509000372	T-Fitting
9	509000565	Engine Inlet Hose
10	509000529	Oetiker Gear Clamp, 36.5-706R
11	509000443	Aba Gear Clamp, 26-38 MM
12	509000644	PIPE - Call your local BRP dealership
13	509000698	HOSE - Call your local BRP dealership
14	509000563	HOSE - Call your local BRP dealership
15	509000442	Oeticker Gear Clamp, 25.6-706R
16	293650099	Crimp Clamp
17	707001349	Protector Tube This part replaces 509000730.
18	414115200	Tie-Rap 180 mm
19	509000368	Coolant Tank
20	241151640	Hex. Flange Screw K50 X 2.24 X 16
21	219704360	Hose 6 Mm 15000Mm Long
22	509000180	Radiator Pressure Cap
23	509000800	Water Pipe
24	207561634	Hex. Flange Screw M6 X 16, Scotch Grip
25	414115200	Tie-Rap 180 mm
26	509000636	RADIATOR HOSE - Call your local BRP dealership
27	293650165	Oetiker Gear Clamp
28	509000637	RADIATOR HOSE - Call your local BRP dealership
29	293650165	Oetiker Gear Clamp
30	509000735	Clamp
31	709200573	Fan This part replaces 709200230.
32	509000714	Fan Support
33	207662044	Hex. Flange Screw M6 X 20
34	233261414	Hex. Flange Elastic Nut M6 x 1.0
35	509000756	Radiator
36	509000754	RH RADIATOR SUPPORT - Call your local BRP dealership
37	509000755	LH RADIATOR SUPPORT - Call your local BRP dealership
38	390909100	Avex Rivet
39	709000582	Grommet This part replaces 293720053.
40	293900100	Bushing
41	207562034	Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044.
42	509000750	BREATHER HOSE - Call your local BRP dealership
43	293650046	Oetiker Clamp
44	293650025	Oetiker Gear Clamp
45	293730040	Mount Dart This part replaces 293730018.
