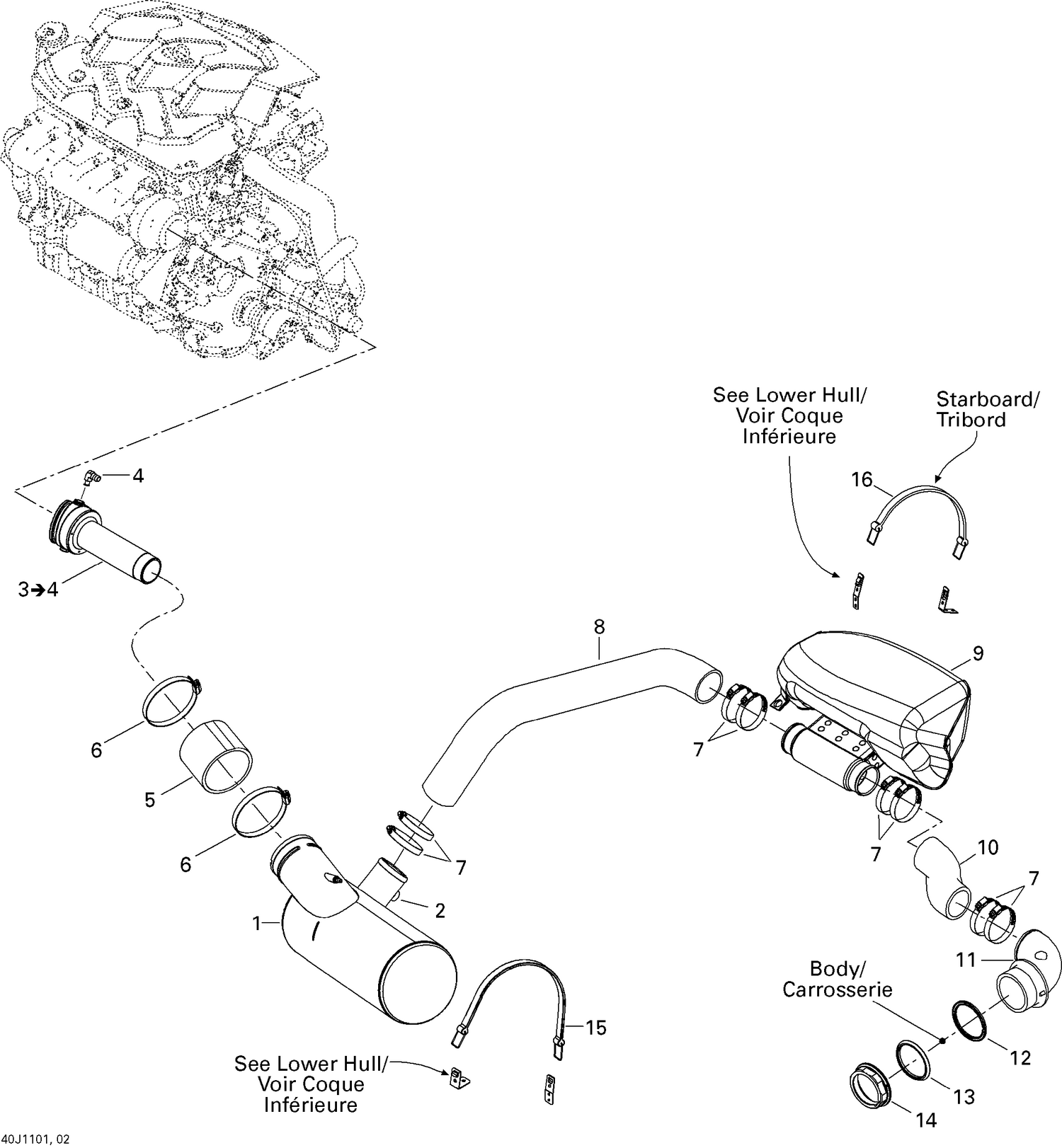

01- Exhaust System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 274001350 | MUFFLER_EXHAUST - Call your local BRP dealership |
| 2 | 278002895 | Temperature Sensor This part replaces 278001016. |
| 4 | 293700023 | Elbow Fitting 90° |
| 5 | 274001348 | Hose |
| 6 | 293650202 | Gear Clamp |
| 7 | 293650179 | Tridon Clamp |
| 8 | 204340436 | EXHAUST HOSE - Call your local BRP dealership |
| 9 | 274001045 | RH Resonator |
| 10 | 0461589 | Exhaust Hose This part replaces 204340437. |
| 11 | 274001389 | Exhaust Hose, Outlet |
| 12 | 293250041 | GASKET - Call your local BRP dealership |
| 13 | 274000225 | STABILIZING WASHER - Call your local BRP dealership |
| 14 | 274000224 | Nut 72 mm |
| 15 | 293850097 | Retainer Strap |
