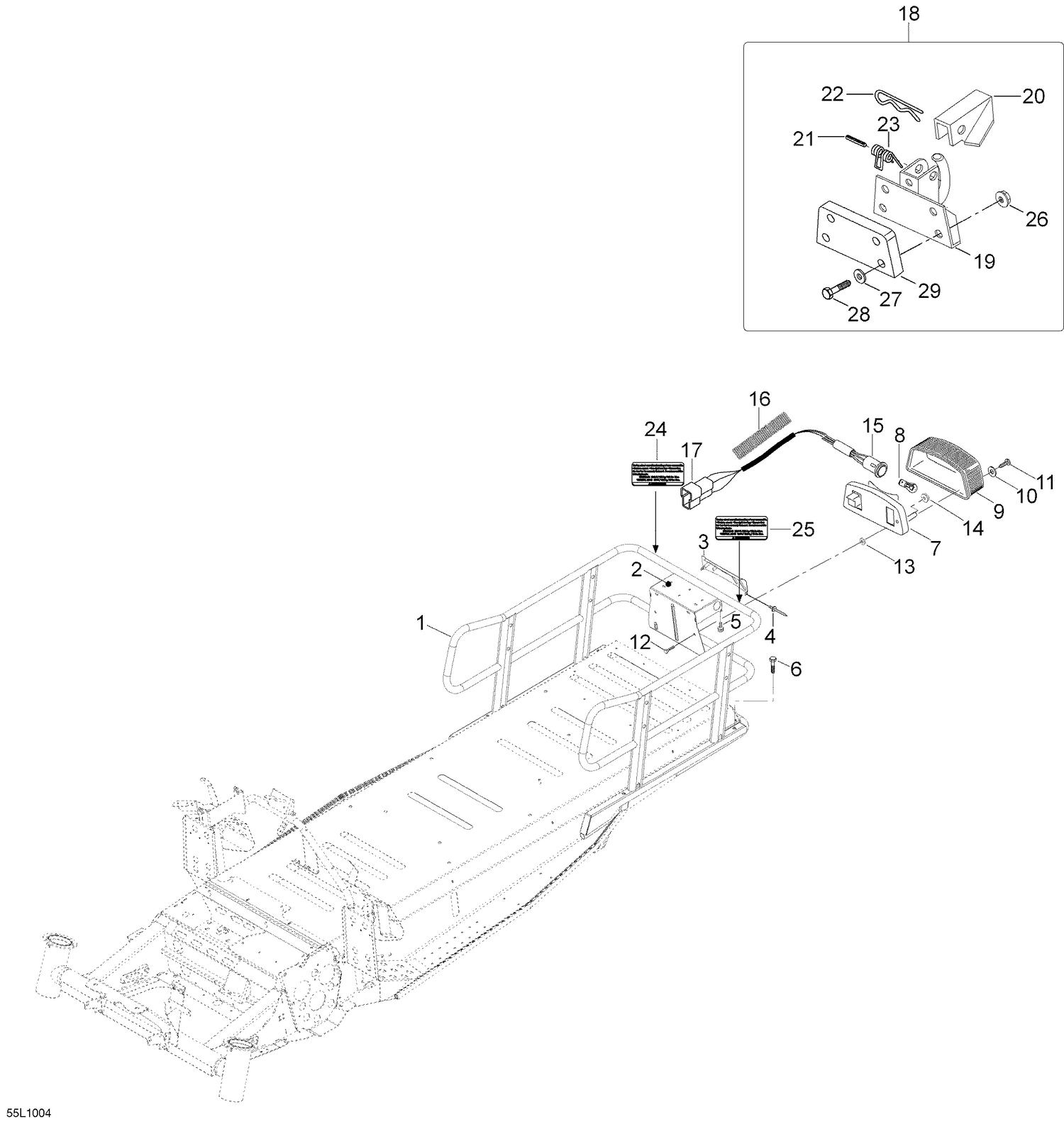

| Ref | Part Number | Description |
|---|
| 1 |
605356494 |
PORTABLE RACK ASS'Y - Call your local BRP dealership |
| 2 |
605256018 |
TAIL LIGHT SUPPORT - Call your local BRP dealership |
| 3 |
605356019 |
Plate |
| 4 |
36010 |
Rivet |
| 5 |
40332 |
Socket head screw M6 x 16 |
| 6 |
40316 |
Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership |
| 7 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 8 |
520000758 |
Bulb |
| 9 |
414513700 |
Lens |
| 10 |
414516400 |
Washer - Call your local BRP dealership |
| 11 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 12 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064. |
| 13 |
20077 |
M8 Washer |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
605354685 |
Harness ass'y, rear light |
| 16 |
409901800 |
Tubing 13 mm |
| 17 |
42269 |
Male connector housing |
| 19 |
Not |
Available As Spare Part - Hitch |
| 20 |
5440767 |
Lock |
| 21 |
41012 |
Pin |
| 22 |
41029 |
Hair pin |
| 23 |
545693 |
SPRING - Call your local BRP dealership |
| 24 |
605448799 |
PULLING BAR DECAL - Call your local BRP dealership |
| 25 |
5447929 |
Instruction label |
| 26 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 27 |
234081410 |
Flat Washer 8 mm |
| 28 |
40009 |
Hex. screw M8 x 50 |
