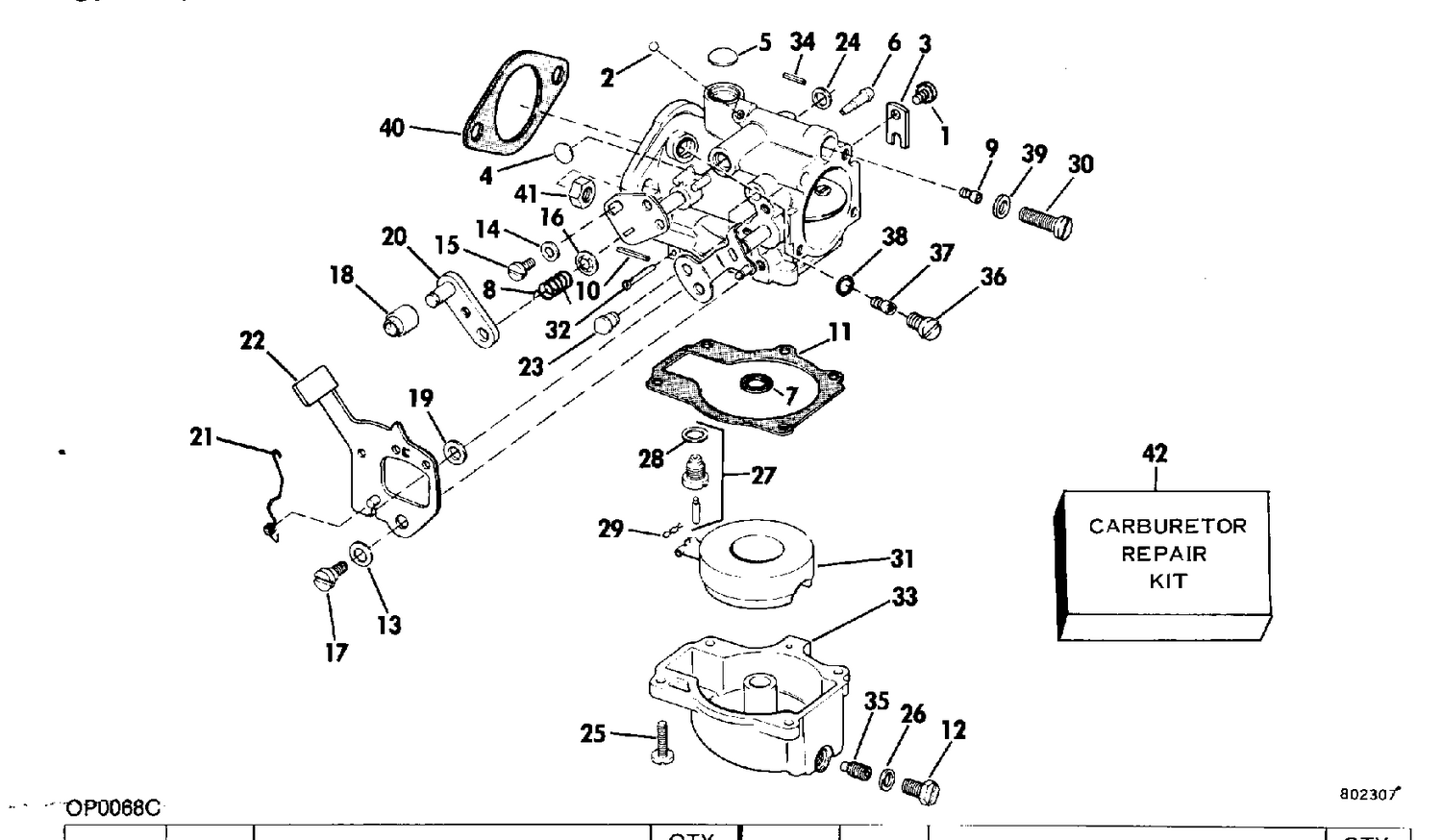

CARBURETOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0314906 | CLIP |
| 9 | 0318832 | O-RING, No. 35 |
| 10 | 0307901 | ROLL PIN |
| 12 | 0307832 | PLUG, Screw |
| 21 | 0326151 | SPRING, Override |
| 22 | 0388160 | LEVER & PIN ASSY |
| 29 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 33 | 0387590 | FLOAT CHAMBER |
| 36 | 0317501 | SCREW PLUG, Orifice |
| 37 | 0323151 | HIGH SPEED ORIFICE, No. 45 |
| 40 | 0325092 | GASKET |
| 41 | 0316355 | BUT, Carburetor mounting |
| 0390929 | 0390929 | CARB ASSY.,Upper |
| 0390930 | 0390930 | CARB ASSY., Lower |
| 0391786 | 0391786 | CARB ASSY., Upper |
| 0391787 | 0391787 | CARB ASSY., Lower |
