Parts Catalog

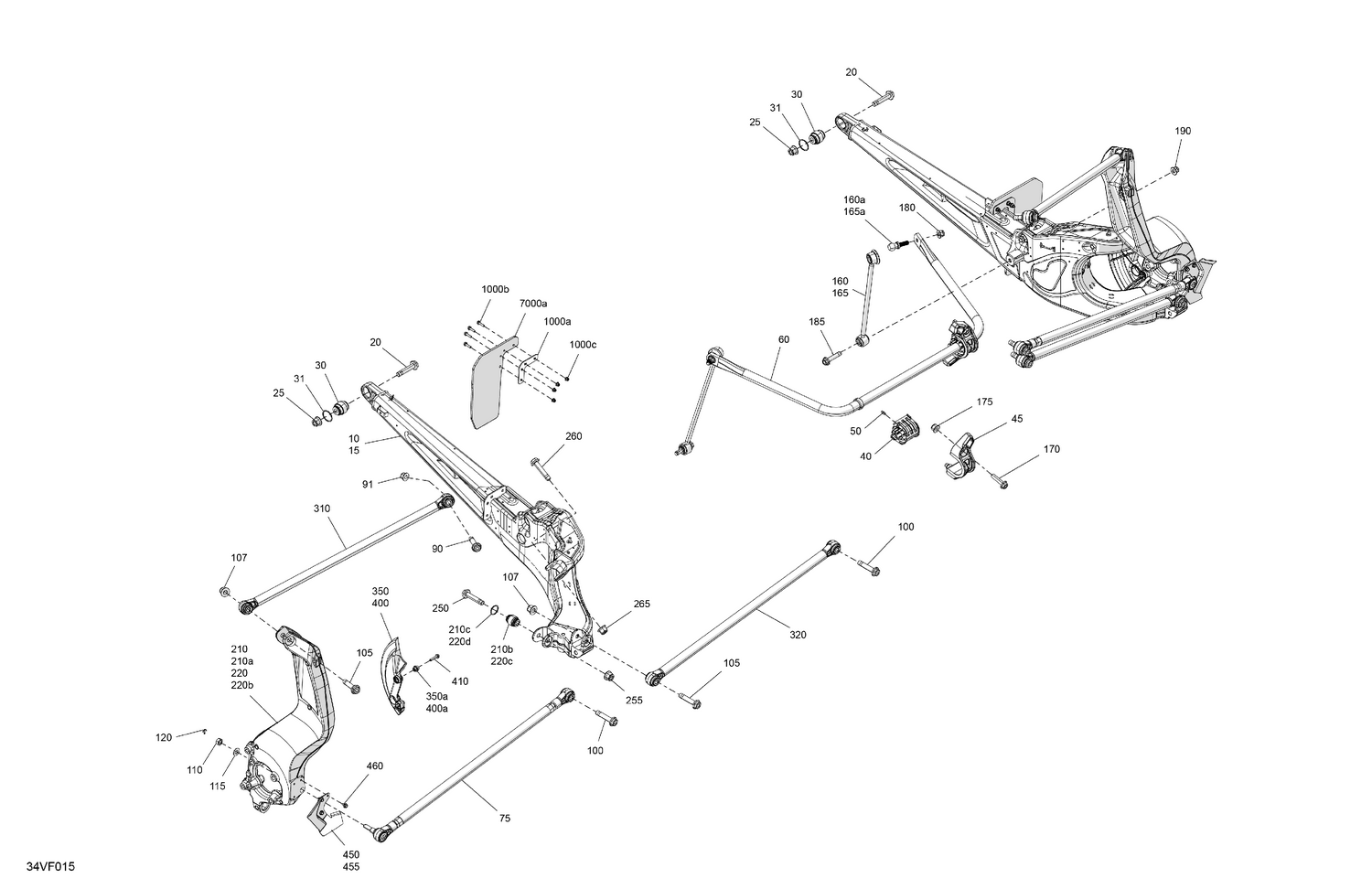

05- Suspension - Rear Components

Parts (47)

Ref	Part Number	Description
10	706006531	Legion Red, LH Rear Suspension Arm
15	706006132	Legion Red, RH Rear Suspension Arm
20	250001175	Hex. Flange Screw Din.6921 M14X2X70
25	250001166	Hex. Flange Elastic Nut M14
30	706005389	Ball Joint
31	293370166	Retaining Ring
40	706005418	Stabilizer Bar Bushing
45	706004846	Clamp
50	408200700	Grease Fitting
60	706005757	Stabilizer Bar Ass'y
75	706005030	Central Suspension Arm Ass'y
90	250001175	Hex. Flange Screw Din.6921 M14X2X70
91	250001166	Hex. Flange Elastic Nut M14
100	250001175	Hex. Flange Screw Din.6921 M14X2X70
105	250001175	Hex. Flange Screw Din.6921 M14X2X70
107	250001166	Hex. Flange Elastic Nut M14
110	250100239	Hex Nut M12
115	706200281	Hardened Washer
120	211400017	Cotter Pin
160a	706002135	Radial Joint
165a	706002135	Radial Joint
170	250001233	Screw Hex Flange M12 X 50
175	250001195	Elastic Flange Nut M12
180	250001195	Elastic Flange Nut M12
185	250000857	Flange Screw M12 X 60
190	250001195	Elastic Flange Nut M12
210a	XXX	Not Available As Spare Parts
210b	706004401	Ball Joint
210c	293370165	Retaining Ring
220b	XXX	Not Available As Spare Parts
220c	706004401	Ball Joint
220d	293370165	Retaining Ring
250	250001175	Hex. Flange Screw Din.6921 M14X2X70
255	250001166	Hex. Flange Elastic Nut M14
260	250001175	Hex. Flange Screw Din.6921 M14X2X70
265	250001166	Hex. Flange Elastic Nut M14
310	706005031	Upper Suspension Arm Ass'y
320	706005032	Lower Suspension Arm Ass'y
350a	706004805	Spacer
400a	706004805	Spacer
410	207563044	Hex. Flange Screw M6 X 30, Scotch Grip
450	706004703	LH Deflector
455	706004704	RH Deflector
460	207561044	Flange Screw M6 X 10, Scotch Grip
1000a	706006096	Retaining Plate
1000b	207662554	Hex. Flange Screw M6 X 25
1000c	233261466	Hex. Flange Elastic Nut M6
