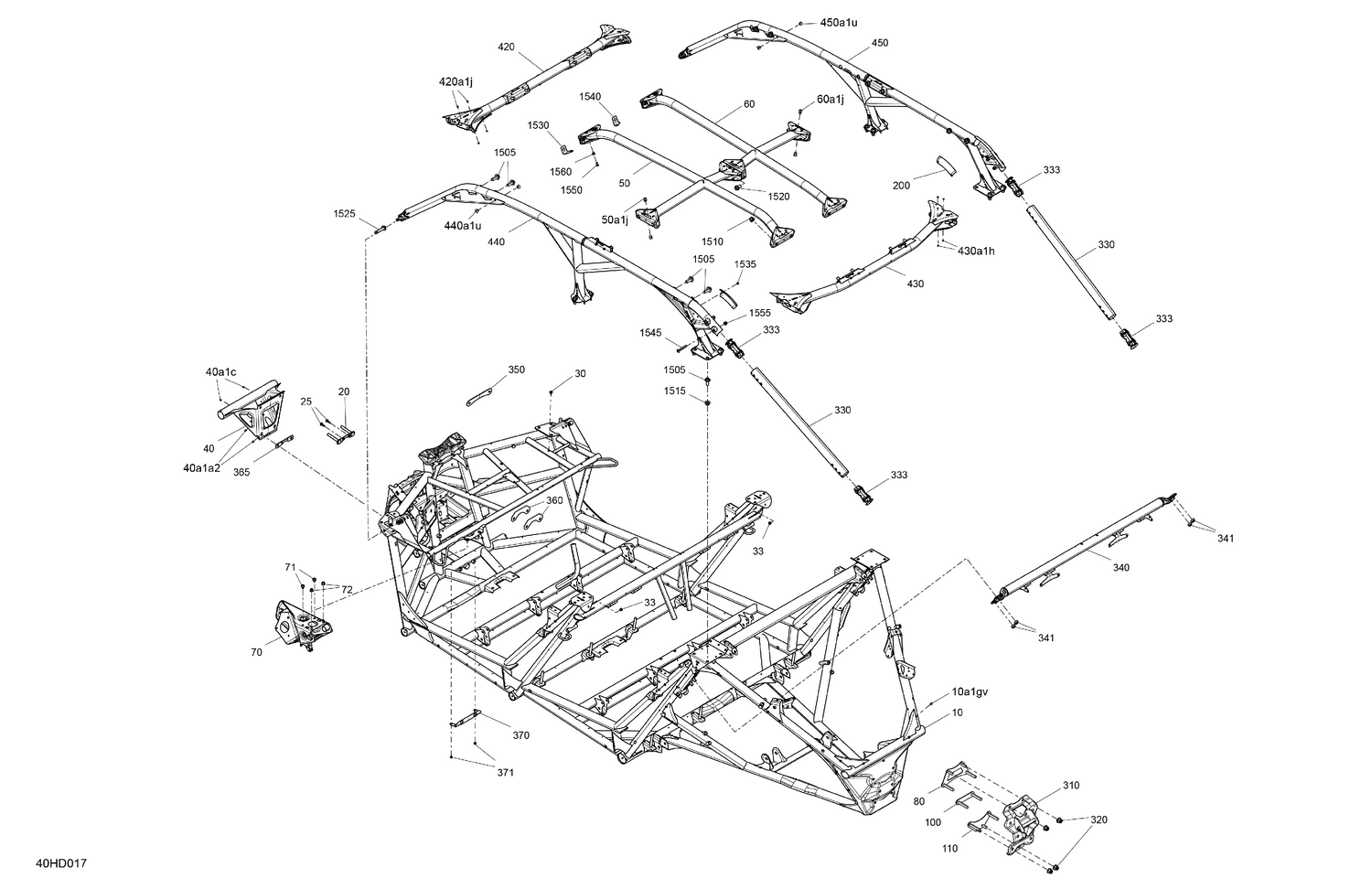

| Ref | Part Number | Description |
|---|
| 10 |
715009106 |
Black, Frame Kit |
| 10a1gv |
293150293 |
Pop Rivet 3/16 X ,425 |
| 20 |
705211561 |
Front Plate |
| 25 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 30 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 33 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 40 |
715008490 |
Black, Front Bumper Kit |
| 40a1a2 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 40a1c |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50a1j |
293150293 |
Pop Rivet 3/16 X ,425 |
| 60a1j |
293150293 |
Pop Rivet 3/16 X ,425 |
| 70 |
705206924 |
DPS Support |
| 71 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 80 |
705211557 |
Rear Upper Plate |
| 100 |
705211558 |
Rear Central Plate |
| 110 |
705211556 |
Rear Lower Plate |
| 200 |
705211599 |
Deep Black, Upper Plate Kit |
| 310 |
715008492 |
Junction Plate Kit |
| 320 |
250001195 |
Elastic Flange Nut M12 |
| 330 |
705210066 |
Deep Black, Rear Pillar |
| 333 |
705210648 |
Sleeve |
| 340 |
705212141 |
Safety Belt Anchorage |
| 341 |
232521416 |
Elastic Stop Nut M12 |
| 350 |
705211552 |
Connecting Plate |
| 360 |
705210249 |
Retaining Plate |
| 365 |
705211553 |
Front Plate |
| 370 |
705211560 |
Support |
| 371 |
390402200 |
Pop Rivet 3/16" |
| 420a1j |
293150293 |
Pop Rivet 3/16 X ,425 |
| 430a1h |
293150293 |
Pop Rivet 3/16 X ,425 |
| 440 |
715008450 |
Black, LH Cage Kit |
| 440a1u |
293150293 |
Pop Rivet 3/16 X ,425 |
| 450 |
715008464 |
Black, RH Cage Kit |
| 450a1u |
293150293 |
Pop Rivet 3/16 X ,425 |
| 1505 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 1510 |
250001195 |
Elastic Flange Nut M12 |
| 1515 |
250001195 |
Elastic Flange Nut M12 |
| 1520 |
250000856 |
Hex. Flange Screw DIN.6921 M12X25 |
| 1525 |
250000857 |
Flange Screw M12 X 60 |
| 1530 |
705211746 |
Deep Black, LH Cage Reinforcement |
| 1535 |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 1540 |
705211747 |
Deep Black, RH Cage Reinforcement |
| 1545 |
250000901 |
Torx Truss M8 X 65 |
| 1550 |
250000717 |
Torx Head Screw M6 X 16 |
| 1560 |
233261466 |
Hex. Flange Elastic Nut M6 |
