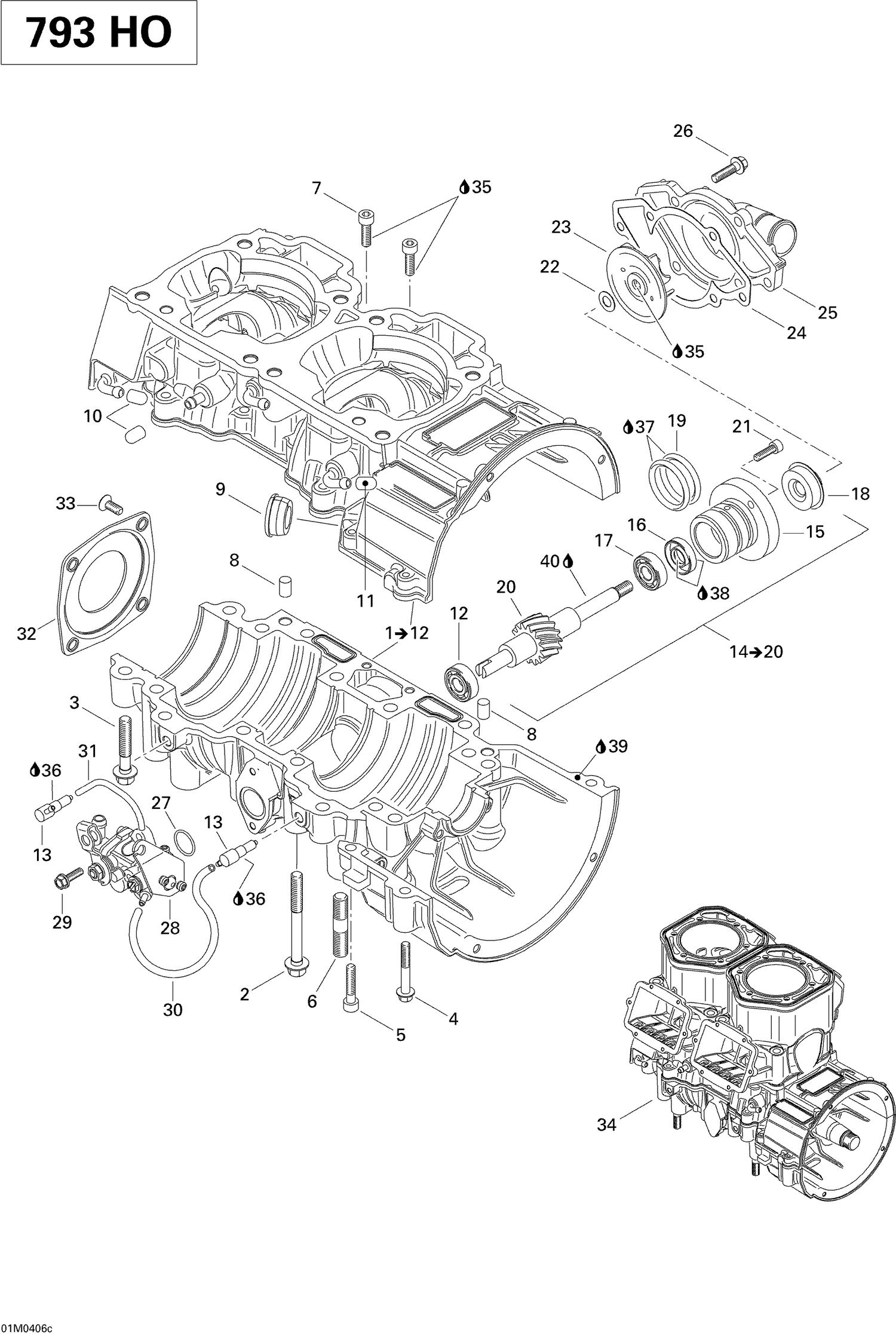

01- Crankcase, Water Pump And Oil Pump (793 HO)

01- Crankcase, Water Pump And Oil Pump (793 HO)

Parts (38)

RefPart NumberDescription
2 420640836 Hex. Collar Screw M8 X 75
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420640431.
4 420640312 Allen Screw M6 x 45 This part replaces 420640311.
5 205063044 Socket Head Screw M6 X 30
6 420641834 STUD M10 X 29 - Call your local BRP dealership
7 420840403 Allen Screw M6 x 22 This part replaces 420840401.
8 420632010 Center Pin 8 X 12
9 420860965 Cable Grommet
10 420960770 Cap
11 420960777 CAP - Call your local BRP dealership
12 420232100 Ball Bearing
13 420956511 Check Valve This part replaces 420956510.
15 Not Available As Spare Part - Step collar
16 420230195 Oil Seal
17 420232100 Ball Bearing
18 420650371 Rotary Seal This part replaces 420650370.
19 420950890 O-Ring
20 Not Available As Spare Part - Water pump / oil pump shaft
21 420840514 Allen Screw M5 x 16 This part replaces 420840511.
22 420227945 Thrust Washer
23 420222505 Water Impeller
24 420931811 Gasket This part replaces 420931810.
25 420922630 Water Pump Housing
26 420240034 Hex. Screw M6 X 25 This part replaces 420240031.
27 293300041 O-Ring This part replaces 420230400.
28 420888770 OIL PUMP ASSY - Call your local BRP dealership
29 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
30 219704404 Oil Hose 1500Mm Long
31 219704404 Oil Hose 1500Mm Long
32 420812422 Oil Seal Cover This part replaces 420812420.
33 420941436 Screw M6 X 20 This part replaces 420941430.
34 420079341 Short Block 793 HO
34 421000612 REBUILD-SHORT-BLOCK PACKAGE - Call your local BRP dealership
35 293800060 Loctite 243, 10 ml
36 219703000 Sealant Loctite 648 This part replaces 413711400.
37 413707000 Dow Corning 111, 150 g
38 420899271 Petamo Grease, GHY133N, 400 g
39 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
