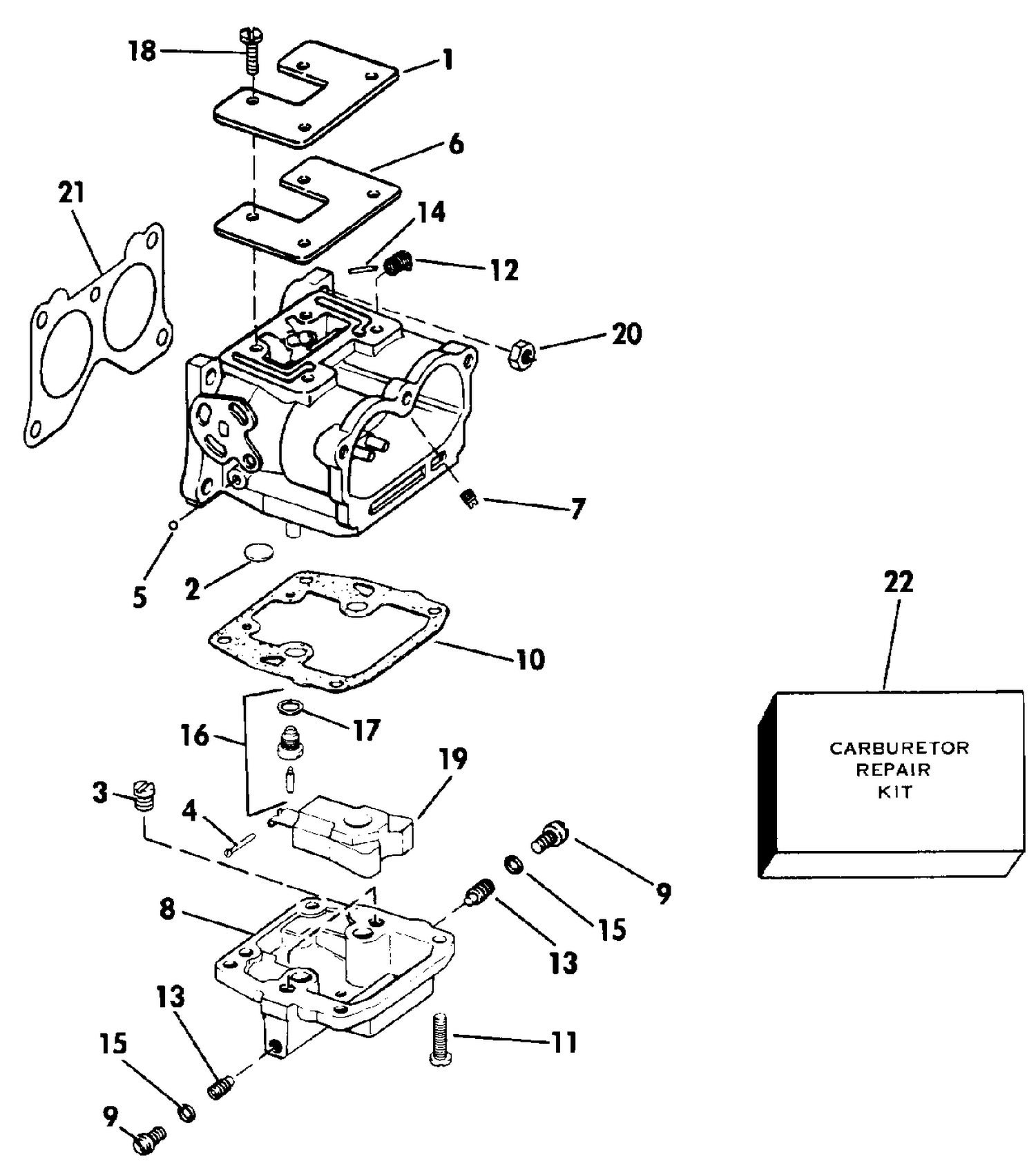

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0334352 | COVER, Idle channel This part replaces 0330132. |
| 6 | 0334353 | GASKET, Cover This part replaces 0327931. |
| 8 | 0392376 | FLOAT CHAMBER ASSY. This part replaces 0393784. |
| 9 | 0330131 | CLAMP, Fuel filter |
| 10 | 0338884 | GASKET, Float bowl This part replaces 0323784. |
| 11 | 0319682 | VIS, capteur vers plaque |
| 13 | 0317021 | ORIFICE PLUG (57C) |
| 18 | 0330133 | SCREW, Breaker plate |
| 19 | 0383437 | FLOAT ASSEMBLY |
| 20 | 0316291 | NUT |
| 21 | 0327707 | GASKET, Air silencer |
| 0394229 | 0394229 | CARB ASSY., Lower |
