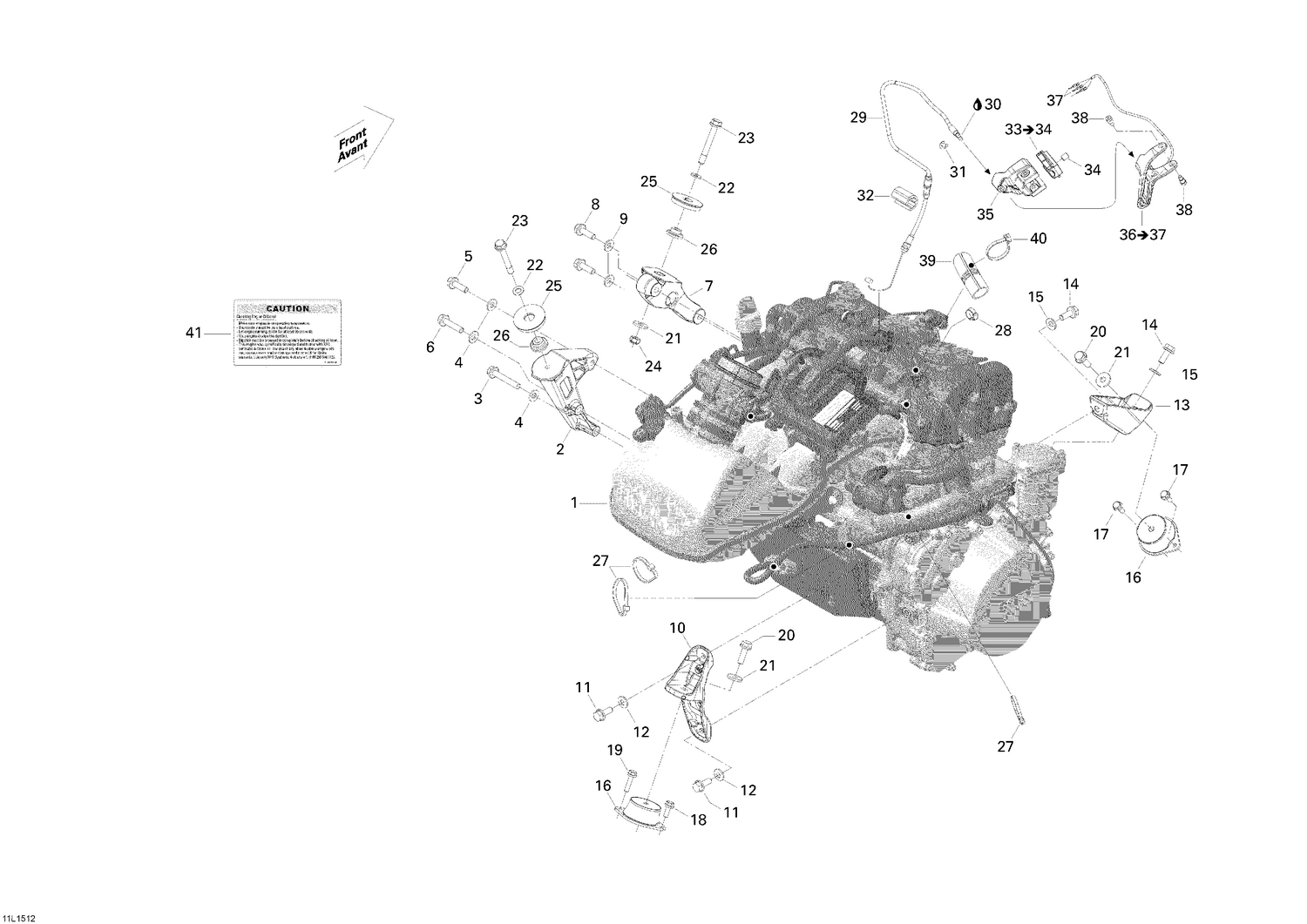

| Ref | Part Number | Description |
|---|
| 1 |
300120303 |
ENGINE 1203 LONG BLOCK - Call your local BRP dealership |
| 2 |
512060591 |
Rear Support, PTO |
| 3 |
207585086 |
Hex. Flange Screw M8 X 50, Scotch Grip |
| 4 |
234281474 |
Conical Spring Washer M8 |
| 5 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 6 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 7 |
512060593 |
Front Support, PTO |
| 8 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 9 |
234281474 |
Conical Spring Washer M8 |
| 10 |
512060594 |
Rear Support, MAG |
| 11 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 12 |
234281474 |
Conical Spring Washer M8 |
| 13 |
512060596 |
Front Support, MAG |
| 14 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 15 |
234281474 |
Conical Spring Washer M8 |
| 16 |
512060729 |
Rubber Mount |
| 17 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 18 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 19 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 20 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 21 |
503183200 |
Yellow, Washer |
| 22 |
250200008 |
Flat Washer With Teflon 8 mm |
| 23 |
250000257 |
Hex. Flanged Screw M8 X 60, Scotch Grip |
| 24 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 25 |
512061202 |
Stopper This part replaces 512060244. |
| 26 |
512060285 |
Spacer |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
293650046 |
Oetiker Clamp |
| 29 |
512060702 |
THROTTLE CABLE - Call your local BRP dealership |
| 30 |
293550004 |
Dielectric Grease, 150 G |
| 31 |
414274500 |
Circlip |
| 32 |
512060313 |
Protector |
| 33 |
512060859 |
Upper Housing |
| 34 |
414440800 |
Socket Set Screw M8 X 10 |
| 35 |
512060860 |
Lower Housing |
| 36 |
512061250 |
Handle Ass'y This part replaces 512061051. |
| 37 |
515175232 |
Male Terminal |
| 38 |
732601143 |
Flanged Screw |
| 39 |
409901600 |
Tubing, 19 mm |
| 40 |
414115200 |
Tie-Rap 180 mm |
