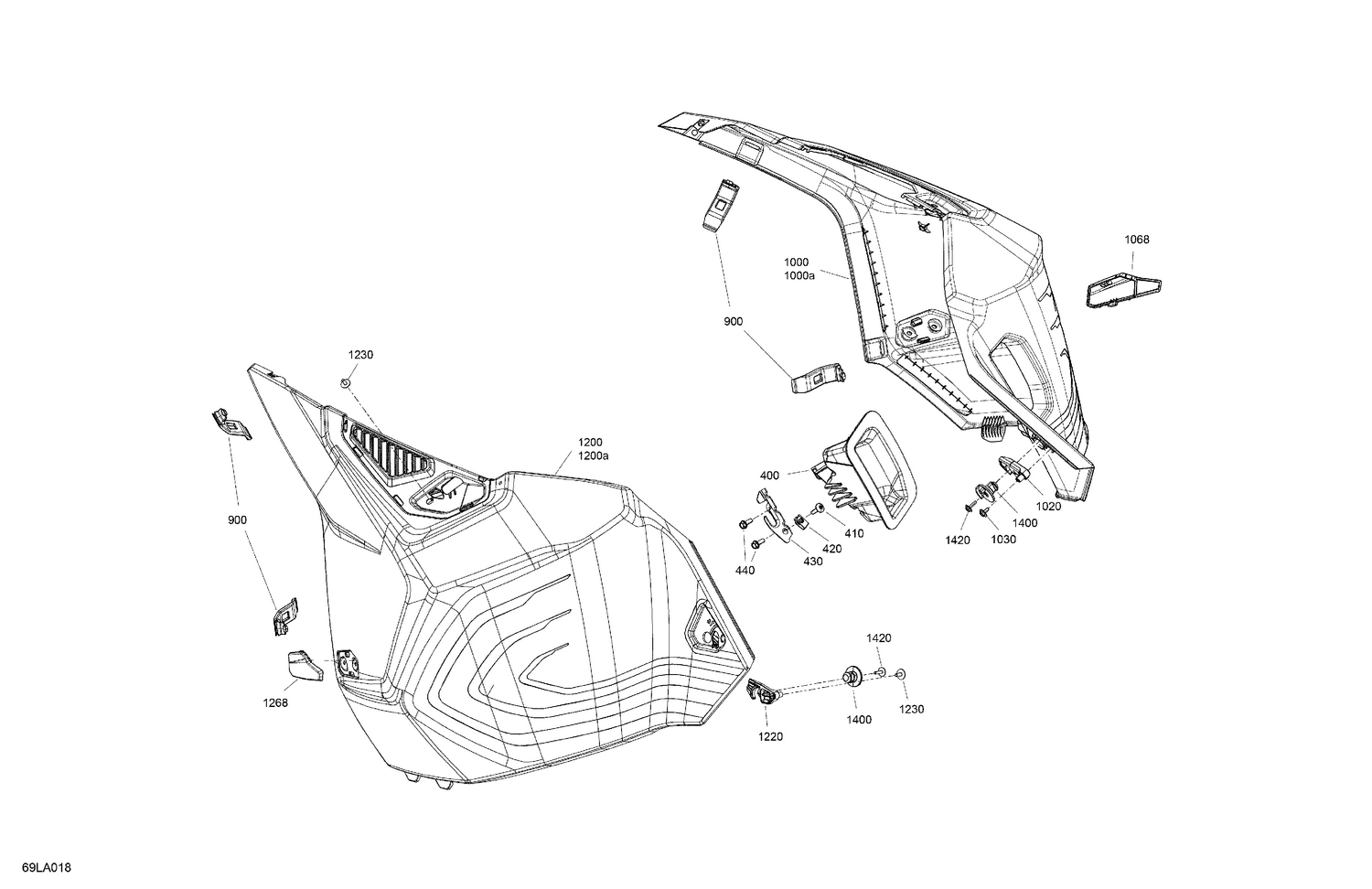

07- Body - Side Panels
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 900 | 517306811 | Rubber Latch |
| 1000a | 517306073 | RH Side Panel |
| 1020 | 517306320 | RH Rear Latch |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1068 | 517308664 | RH Side Panel Cap This part replaces 517306435. |
| 1200a | 517306075 | LH Side Panel |
| 1220 | 517306325 | LH Rear Latch |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1268 | 517306436 | LH Side Panel Cap |
| 1400 | 517305985 | Rear Stud |
