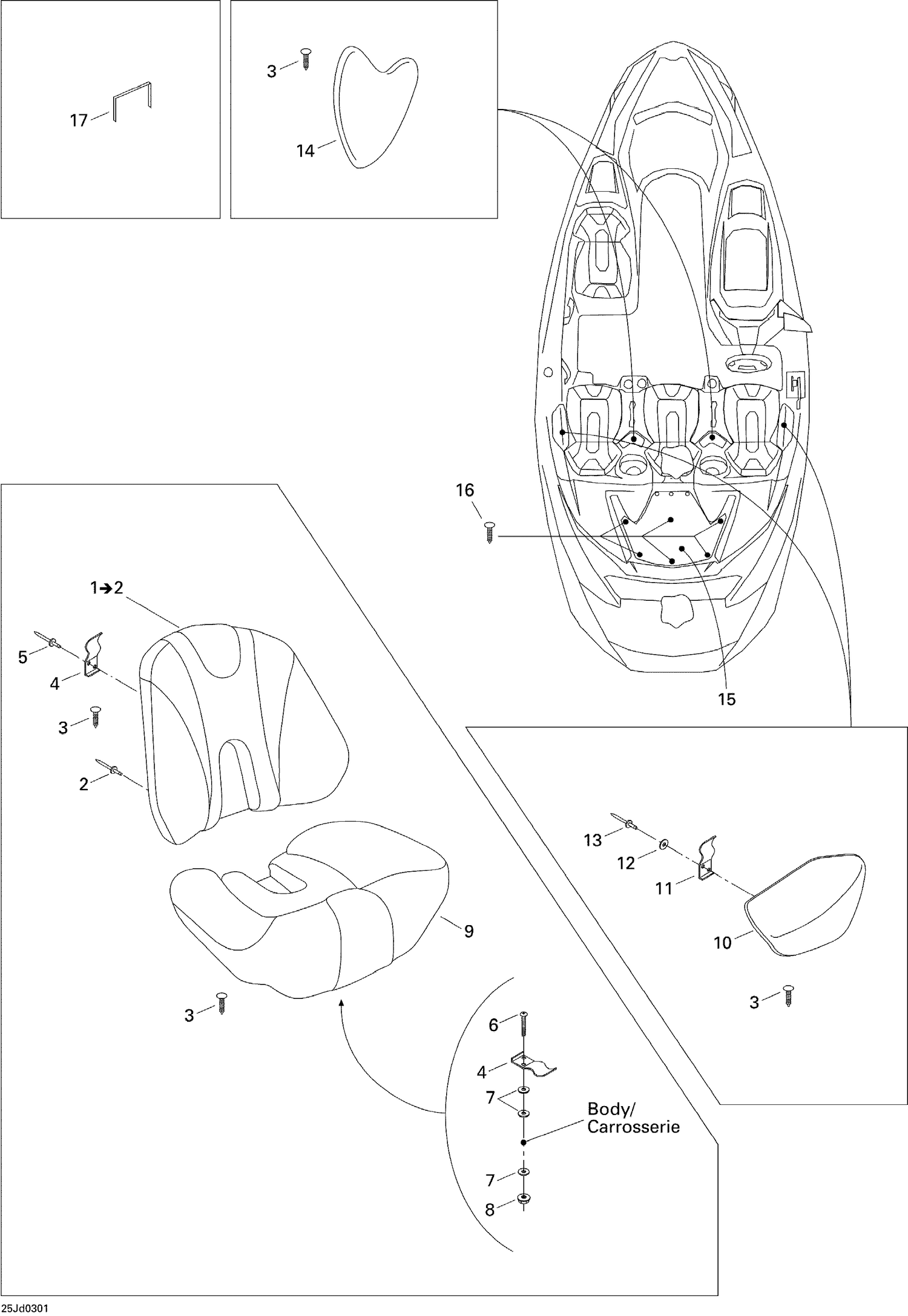

09- Seats
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293150005 | Pop Rivet 3/16" |
| 3 | 293730021 | Dart |
| 4 | 269000388 | SEAT SUPPORT - Call your local BRP dealership |
| 5 | 293150043 | Pop Rivet 3/16" |
| 6 | 208653560 | Phillips Screw M5 X 35 |
| 7 | 234052400 | Flat Washer 5 mm, Stainless |
| 8 | 232551600 | Hex. Elastic Nut M5 |
| 9 | 204612631 | Seat Ass’Y |
| 10 | 204612273 | LH Armrest Ass’y |
| 10 | 204612274 | RH Armrest Ass’y |
| 11 | 269000388 | SEAT SUPPORT - Call your local BRP dealership |
| 12 | 234061600 | Stainless Flat Washer M6 |
| 13 | 293150043 | Pop Rivet 3/16" |
| 14 | 204612275 | Elbowrest Ass'y |
| 15 | 204612536 | Cushion Cover Ass’y |
| 16 | 293730021 | Dart |
