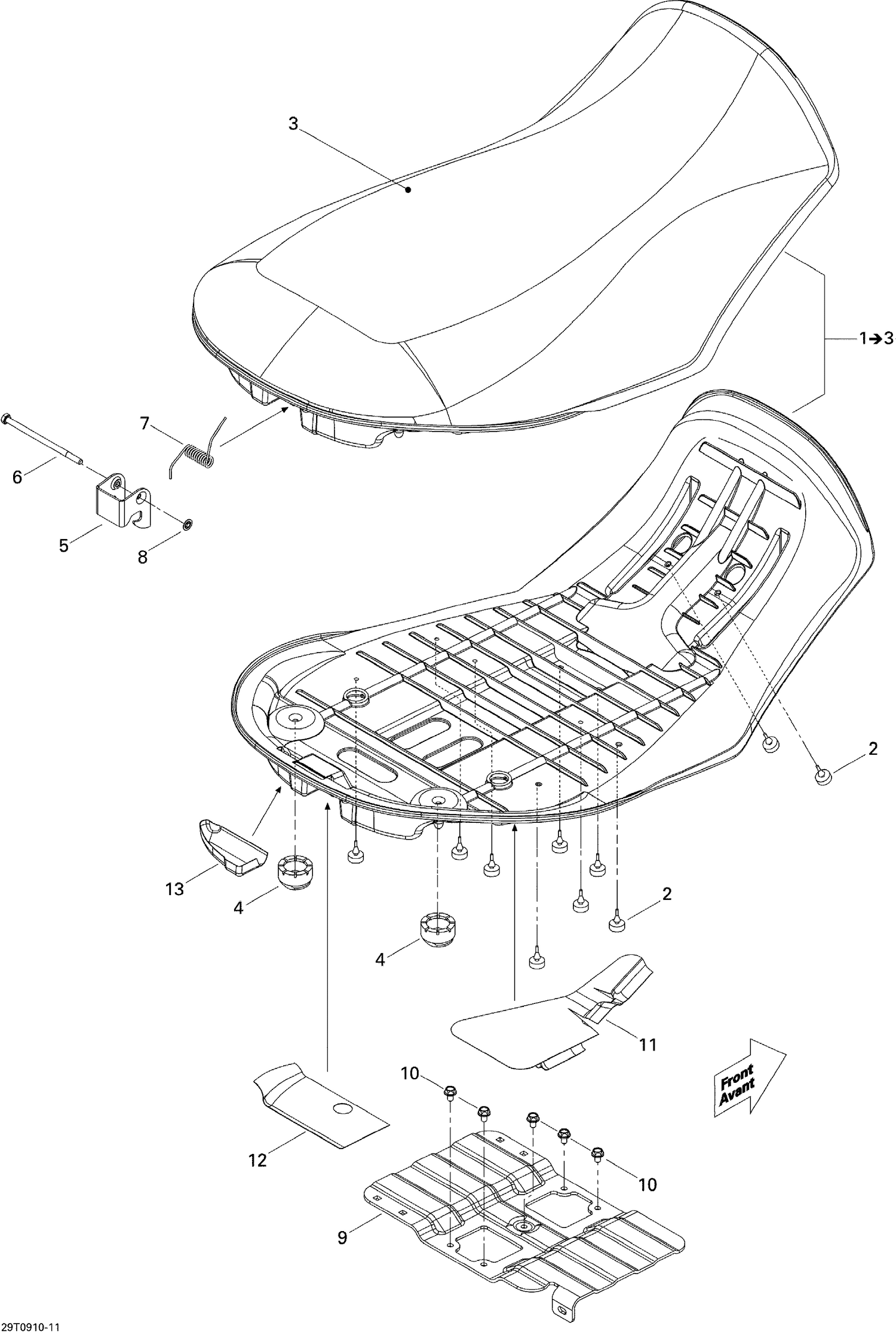

| Ref | Part Number | Description |
|---|
| 2 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 3 |
708000887 |
Seat Cover This part replaces 708000527. |
| 4 |
708000760 |
Bumper Rubber This part replaces 708000323. |
| 5 |
708000144 |
Latch, Black |
| 6 |
230061034 |
Hex. Screw M6 X 110 |
| 7 |
708000369 |
Spring |
| 8 |
732610072 |
Push Nut |
| 9 |
708000629 |
Seat Reinforcement |
| 10 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 |
708000956 |
REFLECTING SHEET - Call your local BRP dealership This part replaces 708000496. |
| 12 |
708000470 |
REFLECTING SHEET - Call your local BRP dealership |
