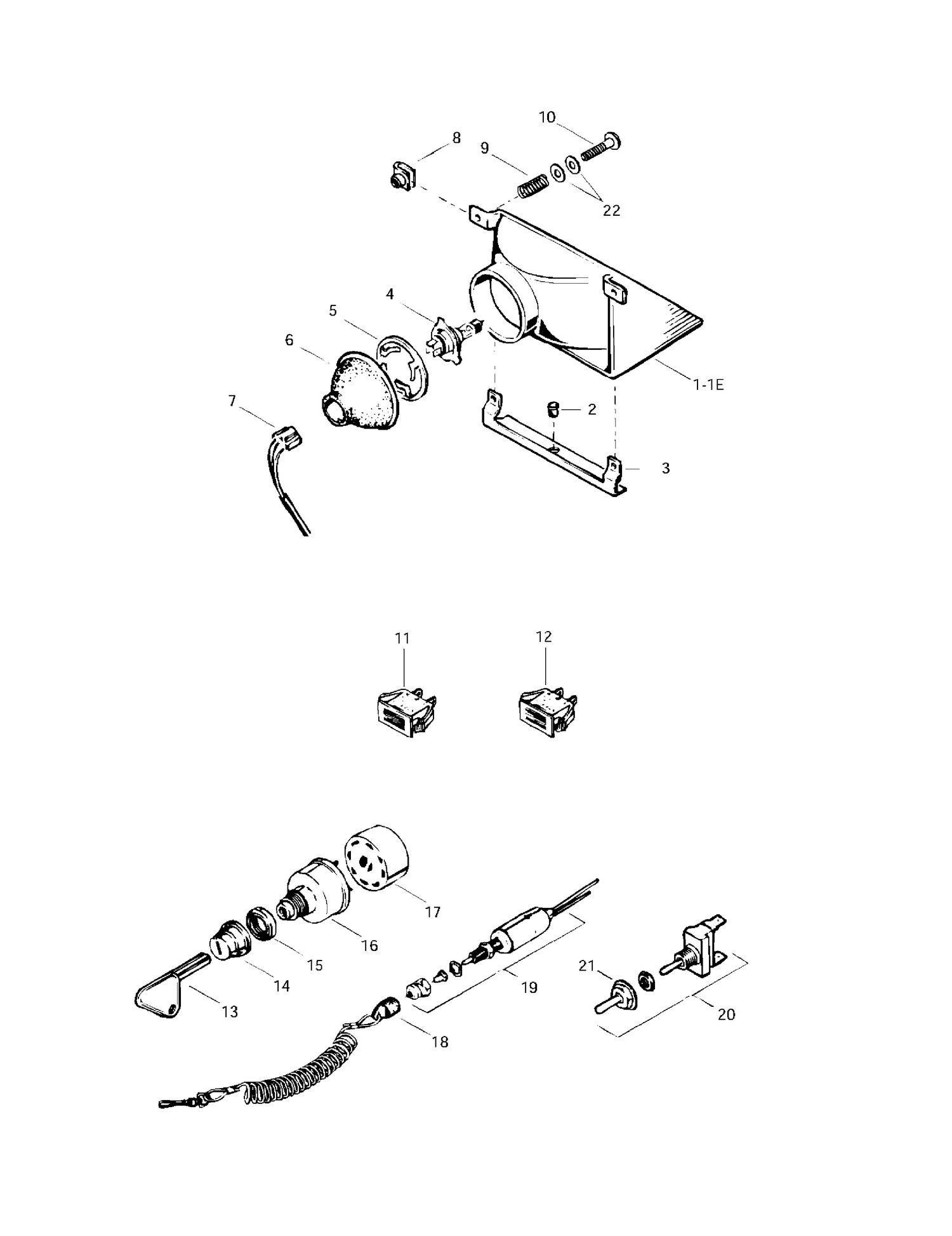

| Ref | Part Number | Description |
|---|
| 1B |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 1C |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 1D |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 1E |
410608900 |
Headlamp |
| 2 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 3 |
M539864 |
HOLDER - Call your local BRP dealership |
| 4 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 5 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 6 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 7 |
M1200909 |
Tab Connector Housing |
| 8 |
572078600 |
Projector Nut |
| 9 |
517168600 |
Spring |
| 10 |
732603002 |
Screw M4 x 40 |
| 11 |
410109500 |
Pilot Lamp (Red) |
| 12 |
410109600 |
Pilot Lamp (Blue) |
| 13 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 14 |
570013700 |
Switch Boot |
| 15 |
410112100 |
FACE NUT - Call your local BRP dealership This part replaces 410107800. |
| 16 |
410111300 |
IGNITION SWITCH - Call your local BRP dealership |
| 17 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 18 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 19 |
515175653 |
Brake Switch This part replaces 410106700. |
| 20 |
410110700 |
Heat Grip Switch |
| 21 |
515175281 |
Switch Cover This part replaces 570013900. |
