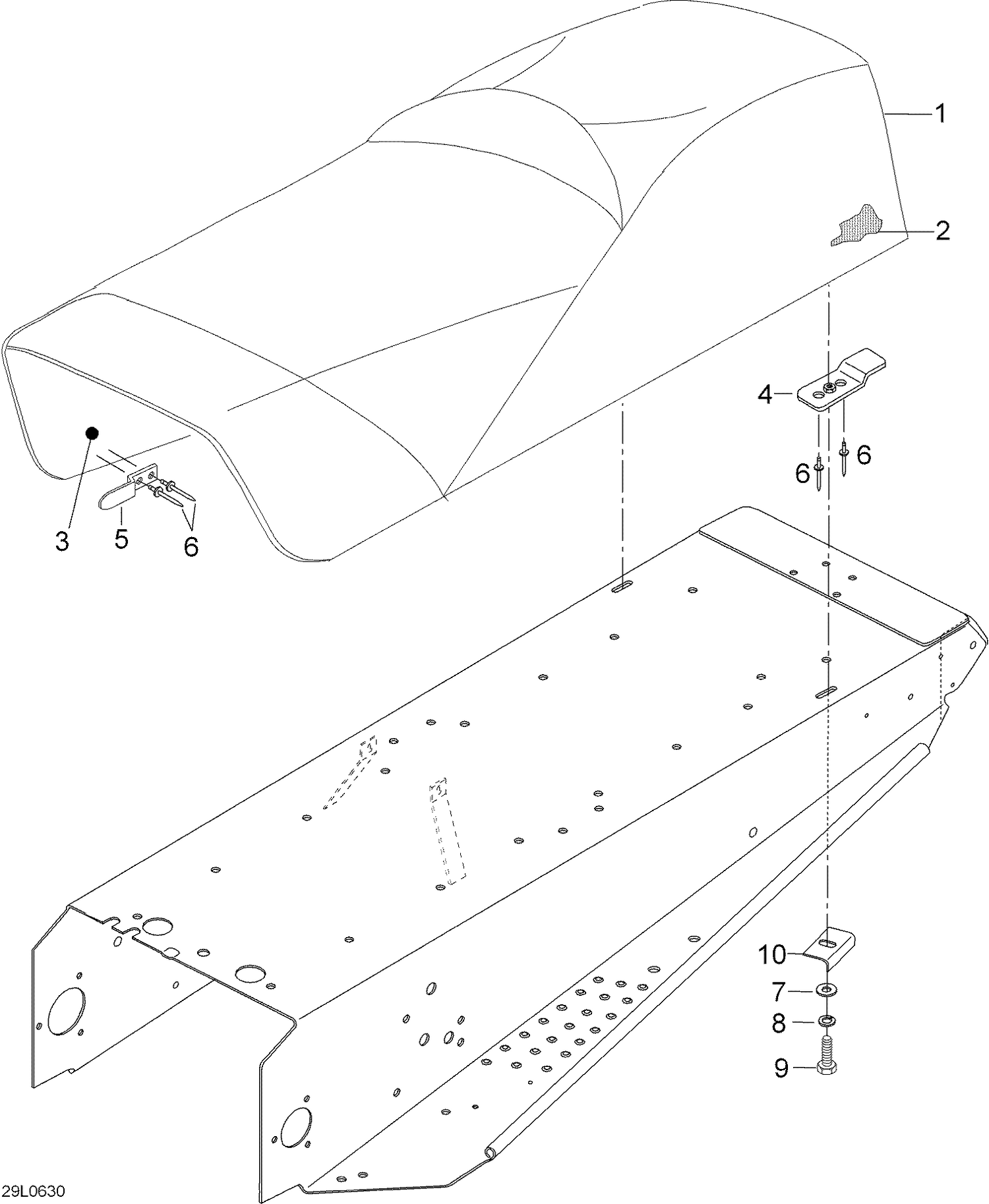

09- Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605153088 | Seat cover |
| 2 | 5146604 | Seat foam |
| 3 | 5146603 | Seat bottom |
| 4 | 5447928 | Fastening plate, rear |
| 5 | 5447909 | Fastening plate, front |
| 6 | Not | Available As Spare Part - Rivet |
| 7 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 8 | 20014 | Lock washer A8 |
| 9 | 40015 | SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
