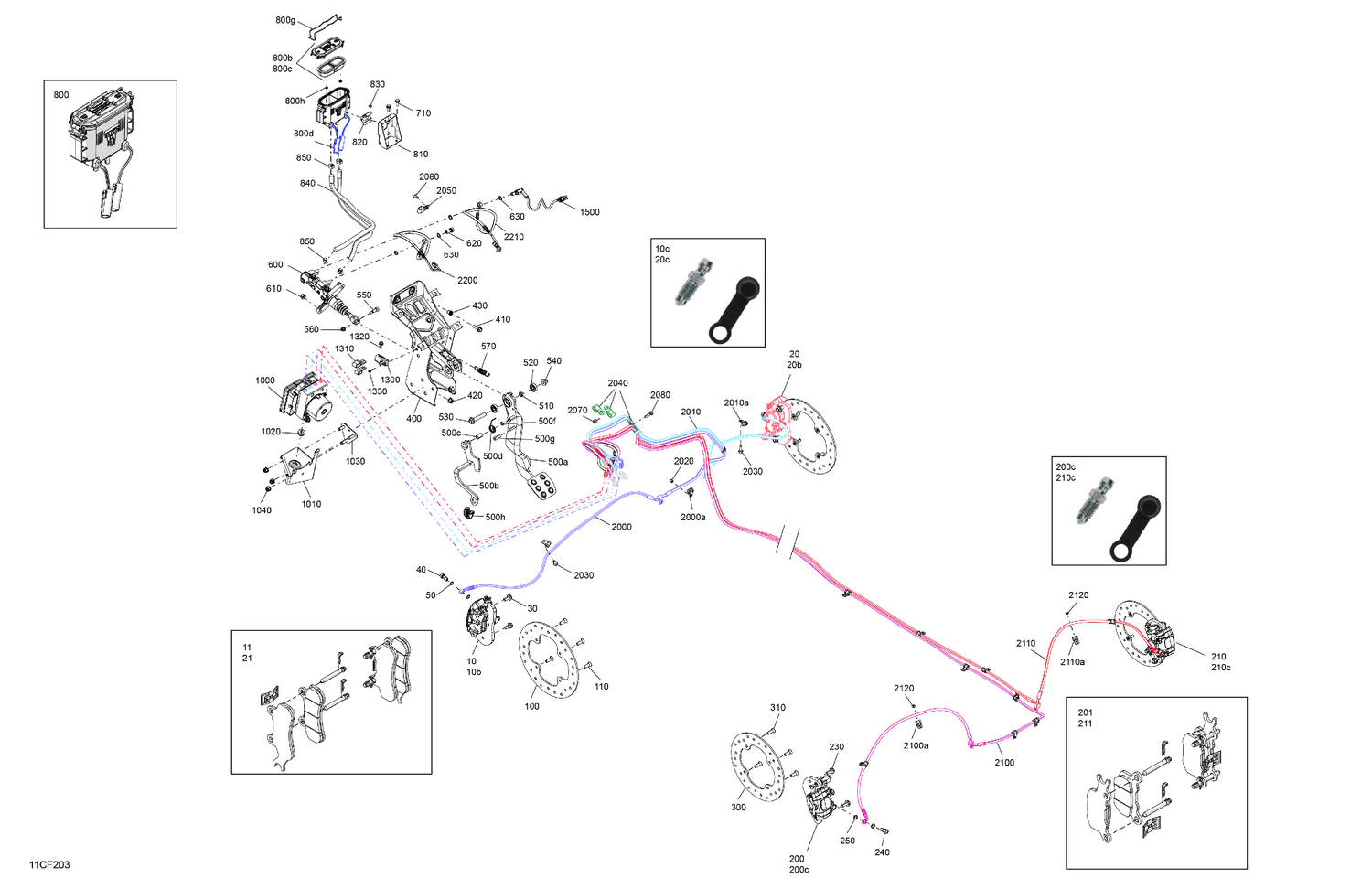

| Ref | Part Number | Description |
|---|
| 10c |
705601017 |
Bleeding Screw |
| 11 |
703501260 |
LH/RH Brake Pad Kit |
| 20c |
705601017 |
Bleeding Screw |
| 21 |
703501260 |
LH/RH Brake Pad Kit |
| 30 |
207502546 |
Hex. Flange Screw M10 X 25 |
| 40 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 50 |
705601628 |
Copper Washer |
| 100 |
705602082 |
Front Disc Brake |
| 110 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 200c |
705601017 |
Bleeding Screw |
| 201 |
703501261 |
LH/RH Rear Brake Pad Kit |
| 210c |
705601017 |
Bleeding Screw |
| 211 |
703501261 |
LH/RH Rear Brake Pad Kit |
| 230 |
207502546 |
Hex. Flange Screw M10 X 25 |
| 240 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 250 |
705601628 |
Copper Washer |
| 300 |
705602083 |
Rear Brake Disc |
| 310 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 400 |
705602126 |
Pedal Support |
| 410 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 420 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 430 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 500a |
705602086 |
Brake Pedal |
| 500b |
705602134 |
Parking Brake Lever |
| 500c |
705601722 |
Bushing |
| 500d |
705602174 |
Torsion Spring |
| 500f |
705601770 |
Circlip |
| 500g |
219704549 |
Hose |
| 500h |
708002655 |
Adjustment Handle |
| 510 |
705601622 |
Bushing |
| 520 |
705601974 |
Ball Bearing |
| 530 |
207605546 |
Hex. Flange Screw M10 X 55 |
| 540 |
233201466 |
Flange Elastic Nut M10 |
| 550 |
250000669 |
Socket Head Screw M8 X 16 |
| 560 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 570 |
705600792 |
Brake Pedal Spring |
| 600 |
705602306 |
Master Cylinder |
| 610 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 620 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 630 |
705601628 |
Copper Washer |
| 710 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 800b |
219800350 |
Diaphragm Cover Ass'y |
| 800c |
219800350 |
Diaphragm Cover Ass'y |
| 800d |
705601073 |
Oil Level Sensor |
| 800g |
705601294 |
Spindle Lock |
| 800h |
211100002 |
Push Nut |
| 810 |
705602106 |
Tank Support |
| 820 |
705601608 |
Stopper Bracket |
| 830 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 840 |
705602107 |
Hose |
| 850 |
293650046 |
Oetiker Clamp |
| 1000 |
703501248 |
Mod ESP Wet Prog & Grommet Kit |
| 1010 |
705602125 |
Module Support |
| 1020 |
710009090 |
Vibration Damper |
| 1030 |
705209564 |
Support |
| 1040 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 1300 |
705602160 |
Hose Support |
| 1310 |
515175980 |
OPEN CLAMP - Call your local BRP dealership |
| 1320 |
207661654 |
Hex. Flange Screw M6 X 16 |
| 1330 |
293150300 |
Black, Pop Rivet 3/16 X ,425 |
| 1500 |
705601669 |
Brake Switch |
| 2000a |
293650256 |
Clamp |
| 2010a |
293650256 |
Clamp |
| 2020 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 2030 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 2040 |
515175507 |
Open Clamp |
| 2050 |
515175507 |
Open Clamp |
| 2060 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 2070 |
233251494 |
Elastic Flange Nut M5 |
| 2080 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 2100a |
293650256 |
Clamp |
| 2110a |
293650256 |
Clamp |
| 2120 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 2200 |
705602104 |
Front Master Cylinder Hose |
