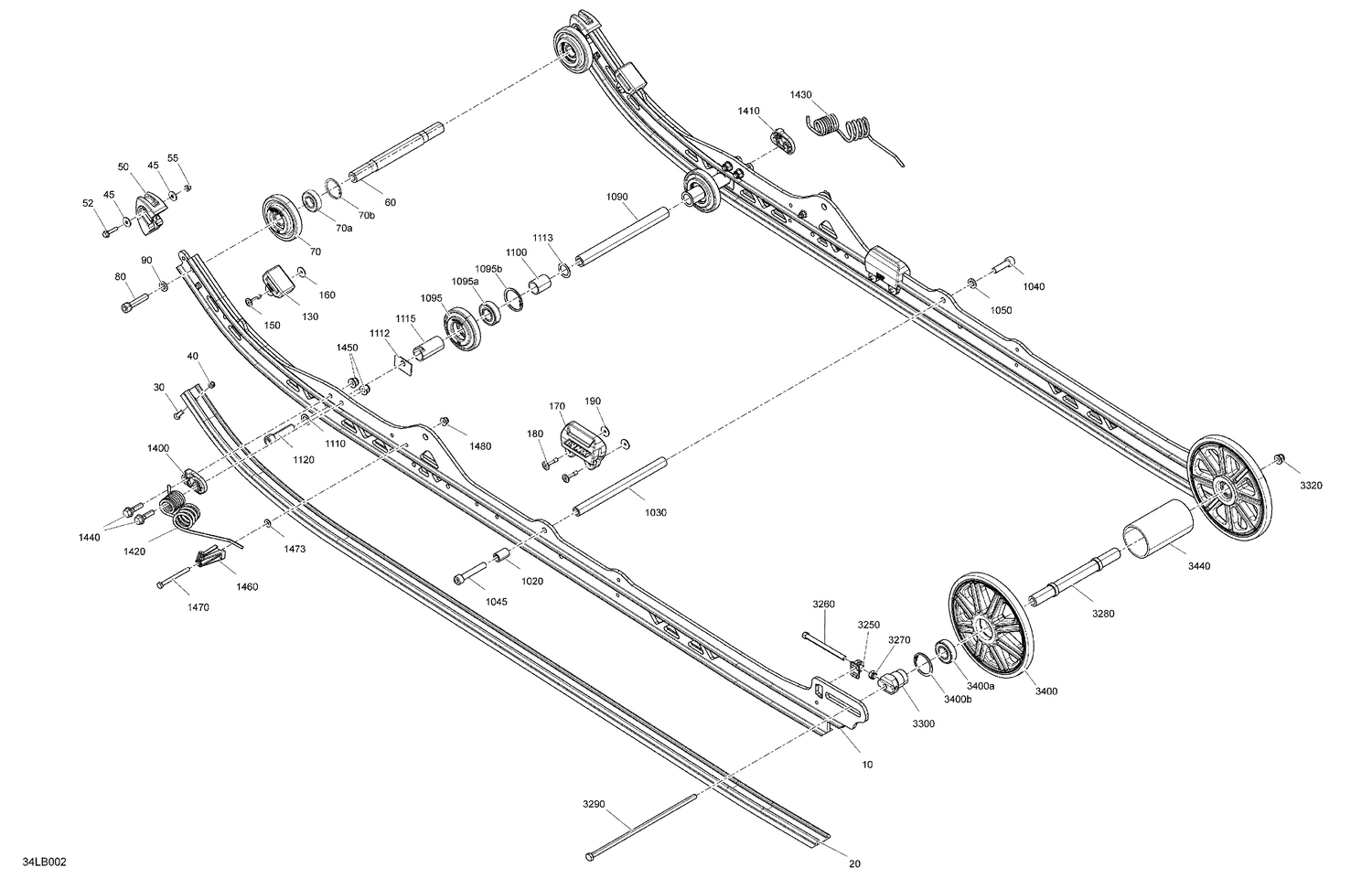

05- Suspension - Rear - Lower Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503196233 | Runner |
| 20 | 503195244 | Guide De Glissière |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561434 | Elastic Stop Nut M6 |
| 45 | 250200140 | Washer |
| 50 | 503196874 | Rail Protector This part replaces 503194249. |
| 52 | 207652544 | Hex. Flange Screw M5 X 25 |
| 55 | 233251434 | Flanged Elastic Nut M5 |
| 60 | 503192842 | Front Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205505054 | Socket Screw |
| 90 | 503192496 | Washer |
| 130 | 503193504 | Rubber Stopper |
| 150 | 293150224 | Rivet Pop 3/16 |
| 160 | 503191273 | Washer |
| 170 | 503195028 | Rubber Stopper |
| 180 | 293150224 | Rivet Pop 3/16 |
| 190 | 503191273 | Washer |
| 1020 | 503195837 | Limiter Bussing |
| 1030 | 503191260 | Axle Strap |
| 1040 | 205503554 | Socket Head Screw M10 X 35 |
| 1045 | 205506044 | Screw Socket S,Grip M10 X 60 |
| 1050 | 503192496 | Washer |
| 1090 | 503195775 | Shock Lower Shaft |
| 1095a | 503190396 | Ball Bearing |
| 1095b | 415129371 | Retaining Ring |
| 1100 | 503194576 | Spacer |
| 1110 | 503192491 | Washer |
| 1112 | 605449294 | Support Plate |
| 1113 | 31013 | Shim Ring |
| 1115 | 503194575 | Spacer |
| 1120 | 205525554 | Socket Screw |
| 1400 | 503194294 | LH Support |
| 1410 | 503194295 | RH Support |
| 1420 | 503194900 | LH Spring |
| 1430 | 503194901 | RH Spring |
| 1440 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1450 | 233281466 | Elastic Flang Nut M8 |
| 1460 | 503196336 | Hook Ass'y |
| 1470 | 207167054 | Hex. Cap Screw M6 X 70 |
| 1473 | 250200039 | Flat Washer |
| 1480 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 3250 | 503194266 | Tensioner |
| 3260 | 503194267 | Hex. Cap Screw M8 X 95 |
| 3270 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3280 | 503194508 | Rear Wheell Axle |
| 3290 | 503194069 | Bolt M8 |
| 3300 | 503196359 | Tip |
| 3320 | 233281466 | Elastic Flang Nut M8 |
| 3400a | 503190396 | Ball Bearing |
| 3400b | 415129371 | Retaining Ring |
