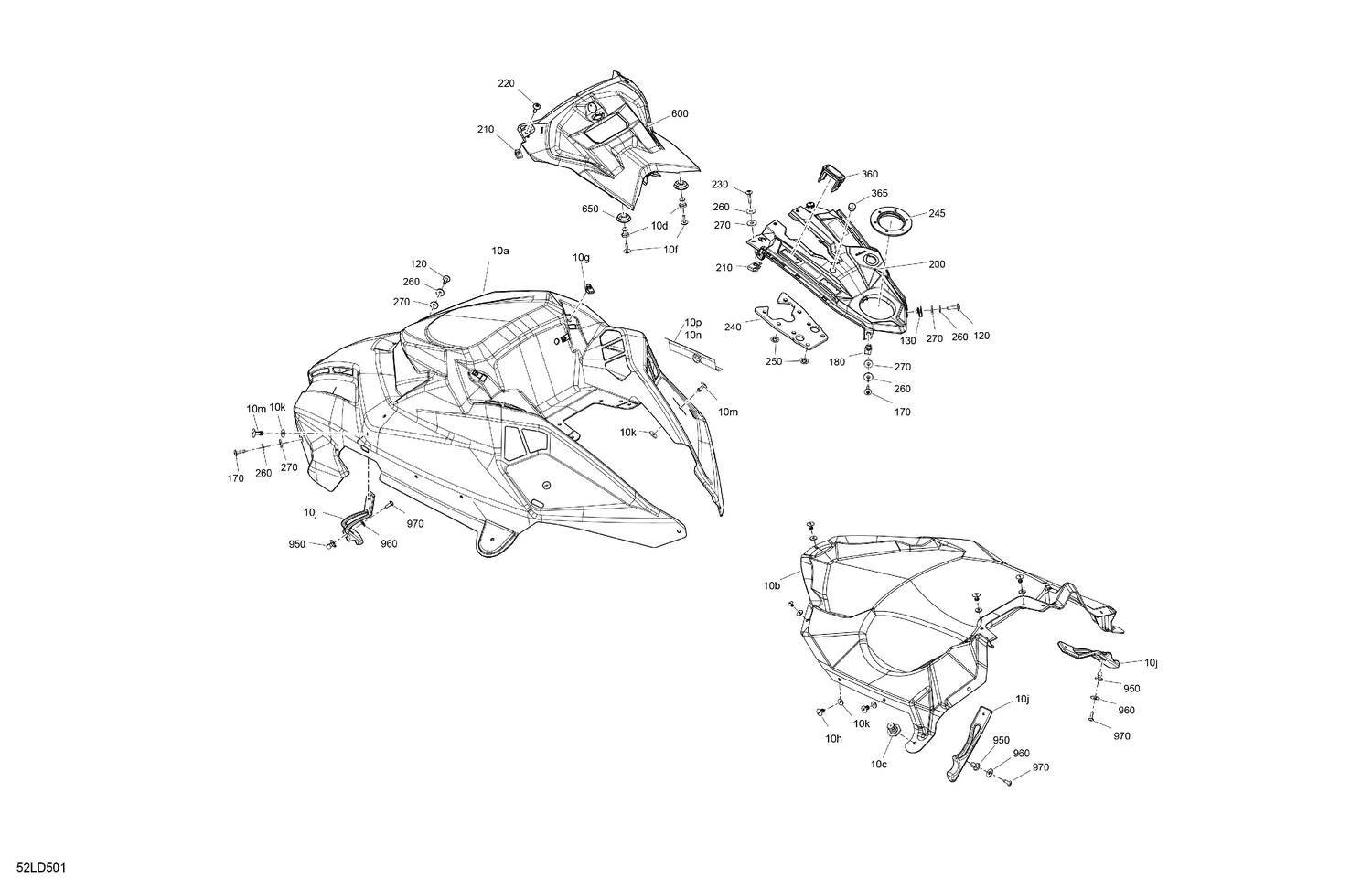

07- Body - Hood Section and WindShield
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 517309114 | Hood |
| 10b | 508001329 | Cover |
| 10c | 517307555 | Knob |
| 10d | 517303439 | Grommet |
| 10f | 250000725 | Screw M4 X 16 |
| 10g | 250000958 | Panel Nut M5 X 0.8 |
| 10h | 293150103 | Pop Rivet 3/16 |
| 10j | 570027100 | Fastening rubber |
| 10k | 517124300 | Washer |
| 10m | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 10n | 44110 | Aluminum Foil |
| 10p | 44110 | Aluminum Foil |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000958 | Panel Nut M5 X 0.8 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517307341 | Rear Console |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 240 | 517306398 | Foam Console |
| 245 | 517304518 | Console Nut |
| 250 | 732610072 | Push Nut |
| 260 | 250200140 | Washer |
| 270 | 250200024 | Rubber Washer 5 mm |
| 360 | 517306808 | Switch Hole Cap |
| 365 | 572051500 | Cap |
| 600 | 517305782 | Indicator Support |
| 650 | 705000321 | Oblong Washer |
| 950 | 517245800 | Knob |
| 960 | 250200140 | Washer |
