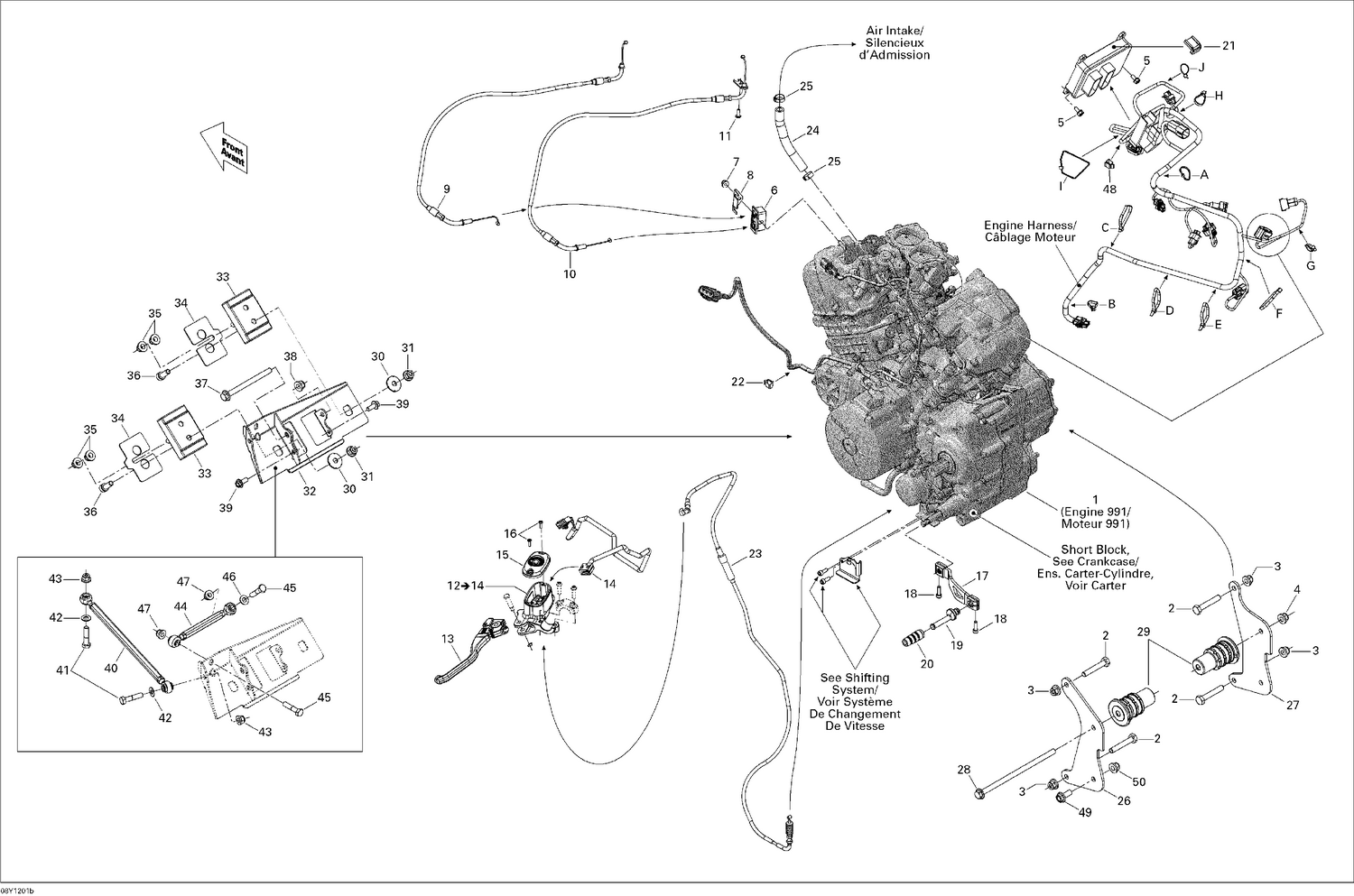

01- Engine 1_SM5

01- Engine 1_SM5

Parts (57)

RefPart NumberDescription
A 293750002 Tie Wrap 142 mm
B 293750008 Tie Wrap 368 mm
C 293750008 Tie Wrap 368 mm
D 293750008 Tie Wrap 368 mm
E 293750008 Tie Wrap 368 mm
F 414115200 Tie-Rap 180 mm
G 414115200 Tie-Rap 180 mm
H 414115200 Tie-Rap 180 mm
I 293750008 Tie Wrap 368 mm
2 207006044 HEX. SCREW M10 X 60 - Call your local BRP dealership
3 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
4 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
5 210261250 Hex. Flange Screw M6 X 12 This part replaces 210261280.
6 707000609 INDEXING BLOCK - Call your local BRP dealership
7 233261414 Hex. Flange Elastic Nut M6 x 1.0
8 707000610 FIXATION PLATE - Call your local BRP dealership
9 707001208 THROTTLE CABLE - Call your local BRP dealership
10 707001209 THROTTLE CABLE - Call your local BRP dealership
11 250000742 Torx Screw M5 X 14 This part replaces 250000145.
13 707000623 CLUTCH LEVER - Call your local BRP dealership
14 710002086 SWITCH - Call your local BRP dealership
15 707000616 COVER RESERVOIR - Call your local BRP dealership
16 250000342 Screw 8-32
17 707000386 LEVER - Call your local BRP dealership
18 250001077 Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047.
19 707000455 Adjustment Rod
20 707000456 End Clutch Pedal
21 278001166 MODULE PROTECTOR - Call your local BRP dealership
22 414227300 Clip
23 707000811 CABLE REVERSE - Call your local BRP dealership
24 219704436 HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership
25 293650186 Oetiker Clamp
26 707000510 LH SUPPORT - Call your local BRP dealership
27 707000512 RH SUPPORT - Call your local BRP dealership
28 250000286 HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership
29 707000814 RUBBER MOUNT - Call your local BRP dealership
30 512056700 Lock Washer
31 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
32 707001072 FRONT ENGINE SUPORT - Call your local BRP dealership
33 707000815 RUBBER MOUNT - Call your local BRP dealership
34 707001074 Shim
35 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
36 205002544 Socket Head Screw M10 X 25
37 230602546 Hex. Flange Screw M10 X 125
38 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
39 207682044 Hex. Flange Screw M8 X 20
40 707000816 TIE ROD ASS'Y - Call your local BRP dealership
41 207004544 Hex. Screw M10 X 45
42 234001410 Flat Washer 10 mm
43 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
44 707001001 TIE ROD ASS'Y - Call your local BRP dealership
45 207004544 Hex. Screw M10 X 45
46 234001410 Flat Washer 10 mm
47 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
48 414227300 Clip
49 207602544 Hex. Flange Screw M10 X 25
50 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
