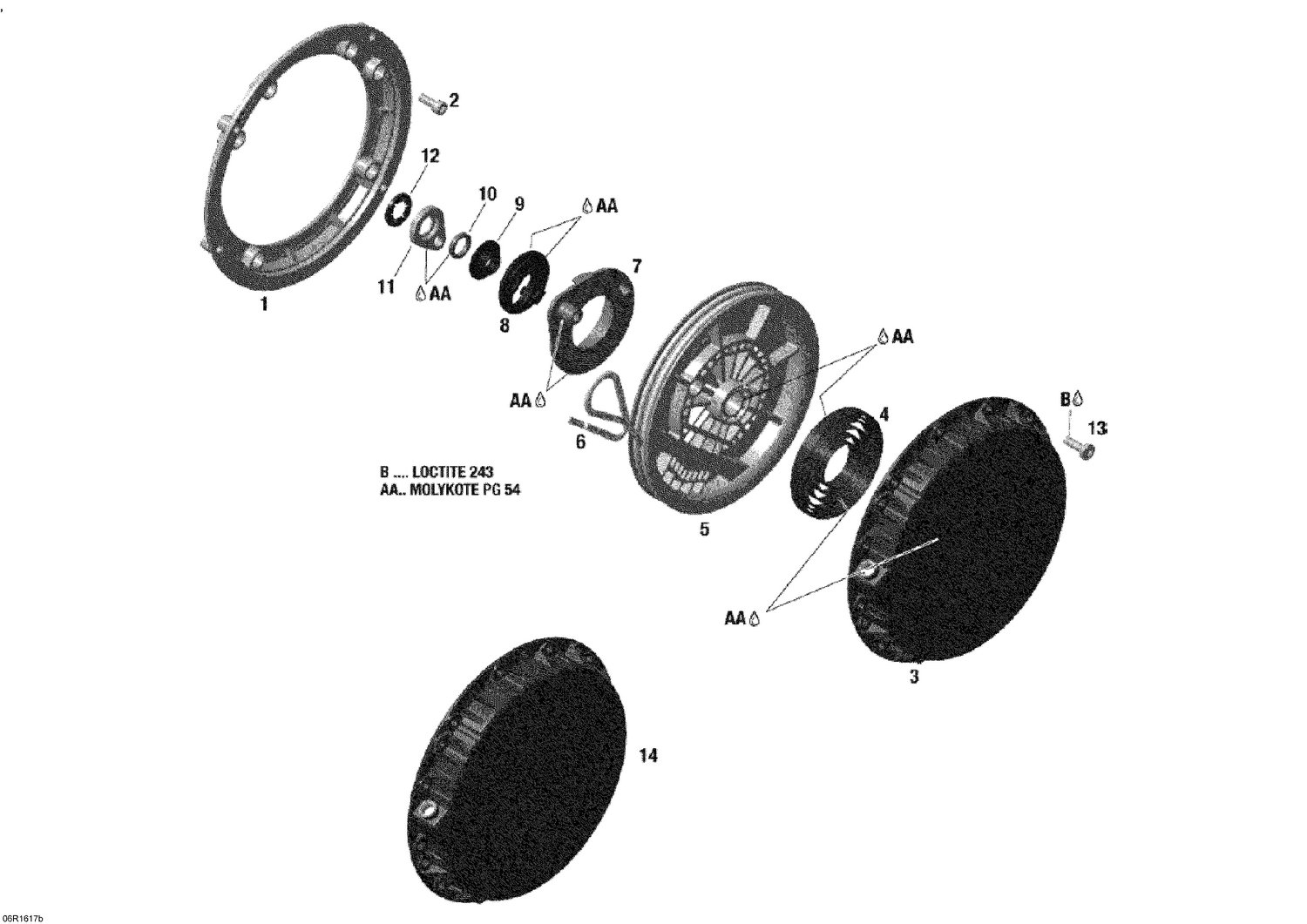

04- Rewind Starter - 600 E-TEC
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| 1 | 420810868 | Flange Connector |
| 3 | 420910256 | Starter Housing |
| 4 | 420939115 | Rewind Spring |
| 5 | 420852288 | Rope Sheave |
| 6 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420852633 | Pawl |
| 8 | 420852640 | Pawl Lock |
| 9 | 420847926 | Stage Sleeve |
| 11 | 420852520 | Lock Ring |
| 12 | 420845560 | Locking Element |
