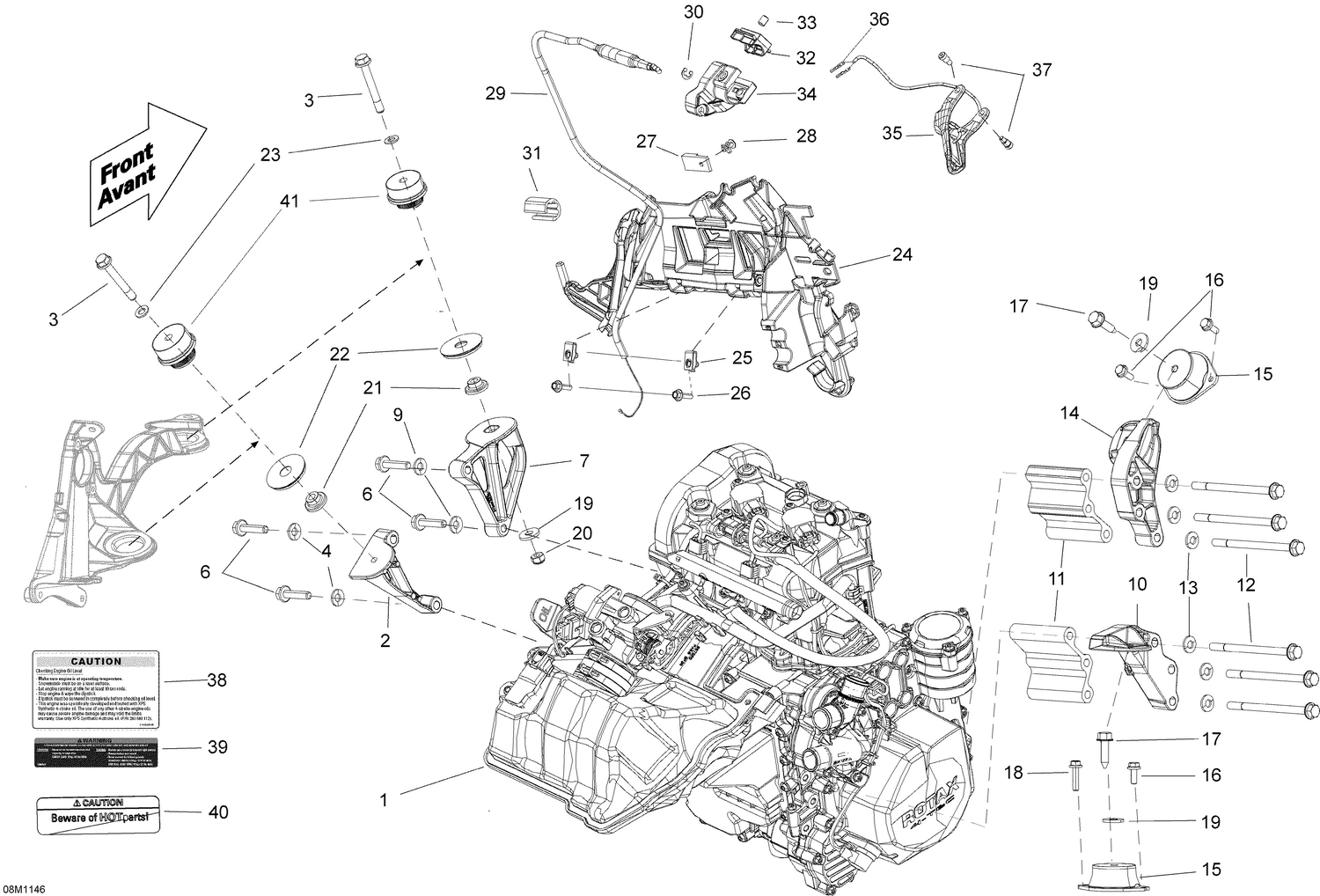

01- Engine And Engine Support
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420060203 | Long Block 602 This part replaces 420060201. |
| 2 | 512061139 | Rear Support PTO This part replaces 512060474. |
| 3 | 207585086 | Hex. Flange Screw M8 X 50, Scotch Grip |
| 4 | 234281474 | Conical Spring Washer M8 |
| 7 | 512061140 | Front Support PTO This part replaces 512060475. |
| 9 | 234281474 | Conical Spring Washer M8 |
| 10 | 512061142 | Rear Support MAG This part replaces 512060497. |
| 11 | 512060505 | Shim |
| 12 | 230582044 | Hex. Flange Screw Din.6921 S.Grip |
| 13 | 234281474 | Conical Spring Washer M8 |
| 14 | 512060663 | Front Support, MAG This part replaces 512060498. |
| 15 | 512060729 | Rubber Mount This part replaces 512060457. |
| 16 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 17 | 250000257 | Cone Screw, M8 X 30 |
| 18 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 19 | 503183200 | Yellow, Washer |
| 20 | 232581414 | Hex. Elastic Stop Nut M8 |
| 21 | 512060285 | Spacer |
| 22 | 512061203 | Stopper This part replaces 512060647. |
| 23 | 250200008 | Flat Washer With Teflon 8 mm |
| 24 | 512060509 | MODULE SUPPORT - Call your local BRP dealership |
| 25 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 26 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 27 | 270000141 | Clip This part replaces 515175917. |
| 28 | 293150027 | Avdel Rivet |
| 29 | 512060607 | Throttle Cable |
| 30 | 414274500 | Circlip |
| 31 | 512060313 | Protector |
| 32 | 512060198 | Upper Housing Ass'y |
| 33 | 414440800 | Socket Set Screw M8 X 10 |
| 34 | 512060860 | Lower Housing This part replaces 512060430. |
| 35 | 512061252 | Throttle Handle Ass'y This part replaces 512060616. |
| 36 | 515175232 | Male Terminal |
| 37 | 732601143 | Flange Screw |
| 38 | 516005521 | Caution Decal, Oil Level This part replaces 516004718. |
| 39 | 516003927 | Warning Decal |
| 40 | 516004651 | Caution Label, Air Intake |
