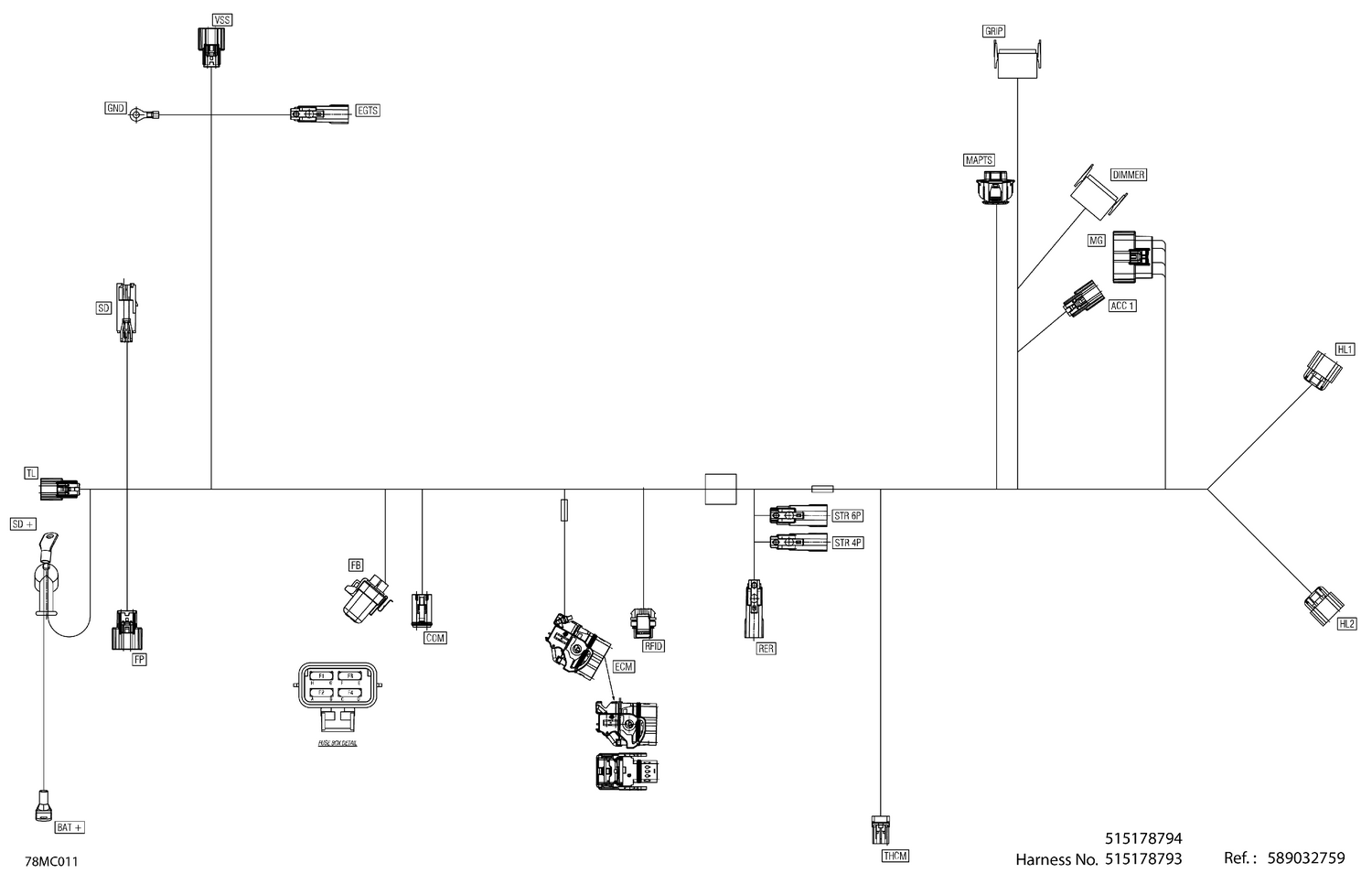

08- Electric - Main Harness - 515178794 - Model With E-TEC SHOT Engine Starter
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| COM | 710002705 | Lock |
| COM | 710002706 | Female Housing 6 Circuits |
| COM | 710005438 | Female Terminal |
| COM | 710005439 | Female Terminal |
| DIMMER | 515178174 | Housing, 12 Circuits |
| DIMMER | 710003048 | Terminal |
| ECMB | 515178168 | Connecteur Femelle 48 Circuits |
| ECMB | 710001589 | Female Terminal |
| ECMB | 710001590 | Female Terminal |
| ECMB | 710001591 | Cover, 48 positions |
| ECMB | 710001592 | Plug |
| ECMB | 710001727 | Female Terminal |
| EGTS | 515178013 | Male Terminal |
| EGTS | 515178020 | Logement Mâle 2 Circuits |
| F1 | 710000742 | Little Fuse, 5 Amperes |
| F2 | 278002389 | Little Fuse, 25 Ampere |
| F4 | 710000745 | Little Fuse, 15 Ampere |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 515178001 | Fuse Box |
| FB | 515178132 | Fuse Box Cover |
| FB | 515178139 | Female Terminal |
| FB | 515178194 | Foam |
| FB | 515178541 | Decal Fuses |
| FB | 710000048 | Wire Seal |
| FB | 710000992 | Clip |
| FP | 515178018 | Female Terminal |
| FP | 515178474 | Female Housing |
| GND | 278001392 | Open Barrel Terminal |
| GRIP | 515178175 | Bloc Femelle 4 Circuits |
| GRIP | 515178302 | Female Terminal |
| HL1 | 515178006 | Female Housing |
| HL1 | 710001228 | Terminal |
| HL1 | 710001332 | Seal Wire |
| HL2 | 515178006 | Female Housing |
| HL2 | 710001228 | Terminal |
| HL2 | 710001332 | Seal Wire |
| MAPTS | 415128501 | Seal |
| MAPTS | 515176410 | Male Connector |
| MAPTS | 710001137 | Female Terminal |
| MG | 278002858 | Female Housing 20 Circuits |
| MG | 278002860 | Sealing Cap |
| MG | 515178014 | Female Terminal |
| MG | 515178018 | Female Terminal |
| RER | 515178013 | Male Terminal |
| RER | 515178020 | Logement Mâle 2 Circuits |
| RFID | 710001161 | Housing |
| RFID | 710001163 | Wire Seal |
| RFID | 710001164 | Female Terminal |
| SD | 515177192 | Female Housing, 2 Circuits |
| SD | 710000925 | Terminal |
| SD | 710001332 | Seal Wire |
| THCM | 515177048 | Female Terminal Housing, 4 Circuit |
| THCM | 515177049 | Female Terminal |
| THCM | 515177050 | Seal |
| THCM | 515177051 | Lock, 4 Circuits |
| TL | 515178014 | Female Terminal |
| TL | 515178018 | Female Terminal |
| TL | 515178346 | Female Housing Connector 4 Pins W/O CPA |
| VSS | 515178024 | Housing |
| 3000 | 515178794 | Chassis Wiring Harness |
