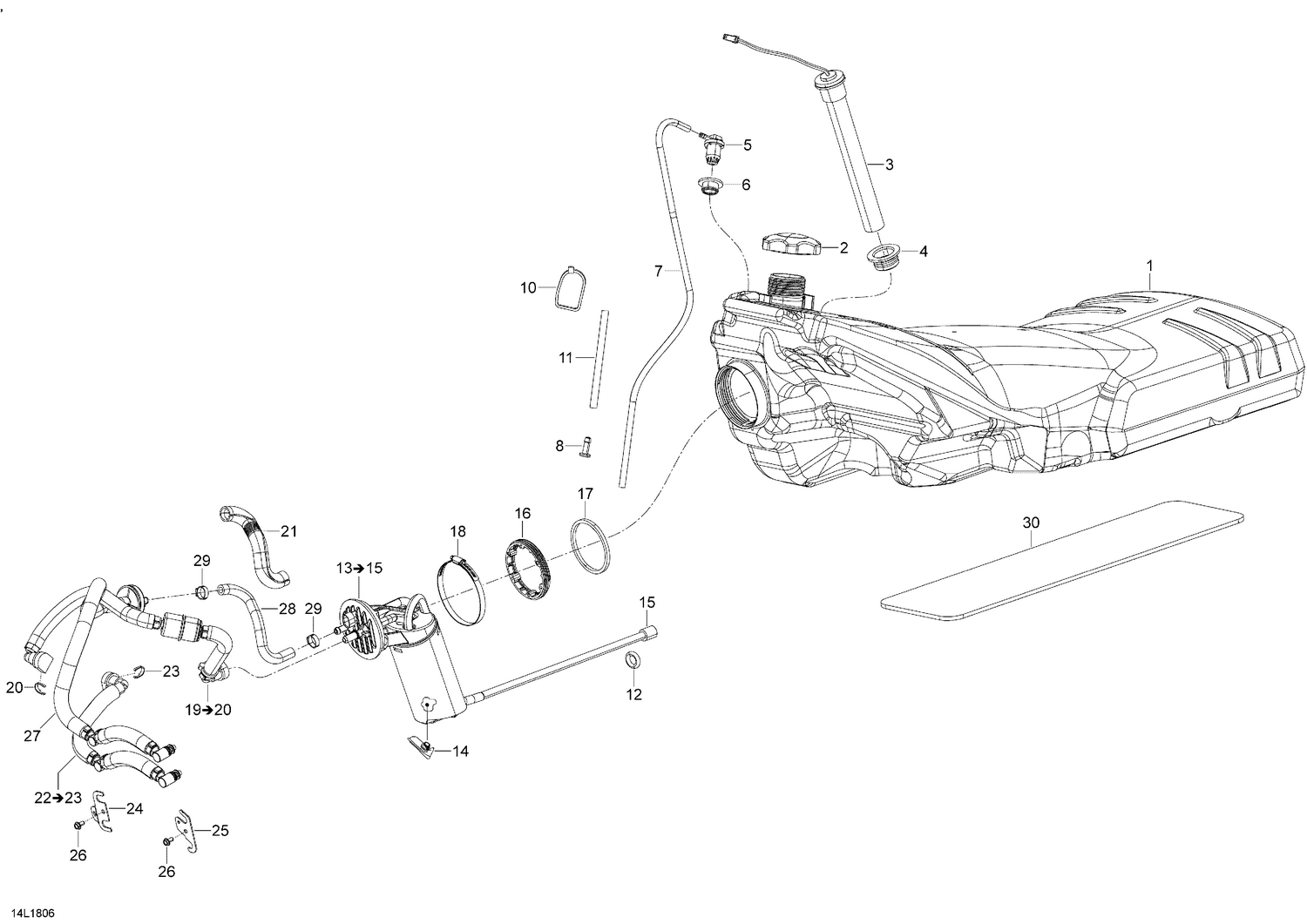

02- Fuel E - TEC
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033757 | Fuel Tank |
| 3 | 513033538 | Fuel sensor |
| 4 | 293720113 | Grommet |
| 5 | 513033842 | Check Valve |
| 6 | 513033596 | Grommet |
| 7 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 504153074 | Tube Protector This part replaces 504152900. |
| 12 | 293300184 | Grommet |
| 14 | 415129451 | Fuel filter (in tank, fuel pump) |
| 15 | 414872100 | Fuel filter (in tank, fuel line) |
| 16 | 513033180 | Plastic nut |
| 17 | 513033334 | Tiiviste |
| 18 | 513033628 | Clamp |
| 20 | 513033135 | Locking Clip |
| 21 | 415080000 | Gaine Protectrice 16 mm (1 mètre/pac) |
| 23 | 513033135 | Locking Clip |
| 24 | 513033542 | Bracket RH |
| 25 | 513033593 | Bracket LH |
| 26 | 207551044 | Hex. Flange Screw M5 X 10 |
| 27 | 513033631 | Hose ass'y upper (incl. press. regulator) |
| 28 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 29 | 293650047 | Crimp Clamp, 15.3-706R |
| 40 | 414115200 | Tie-Rap 180 mm |
| 40 | 414227300 | Clip |
