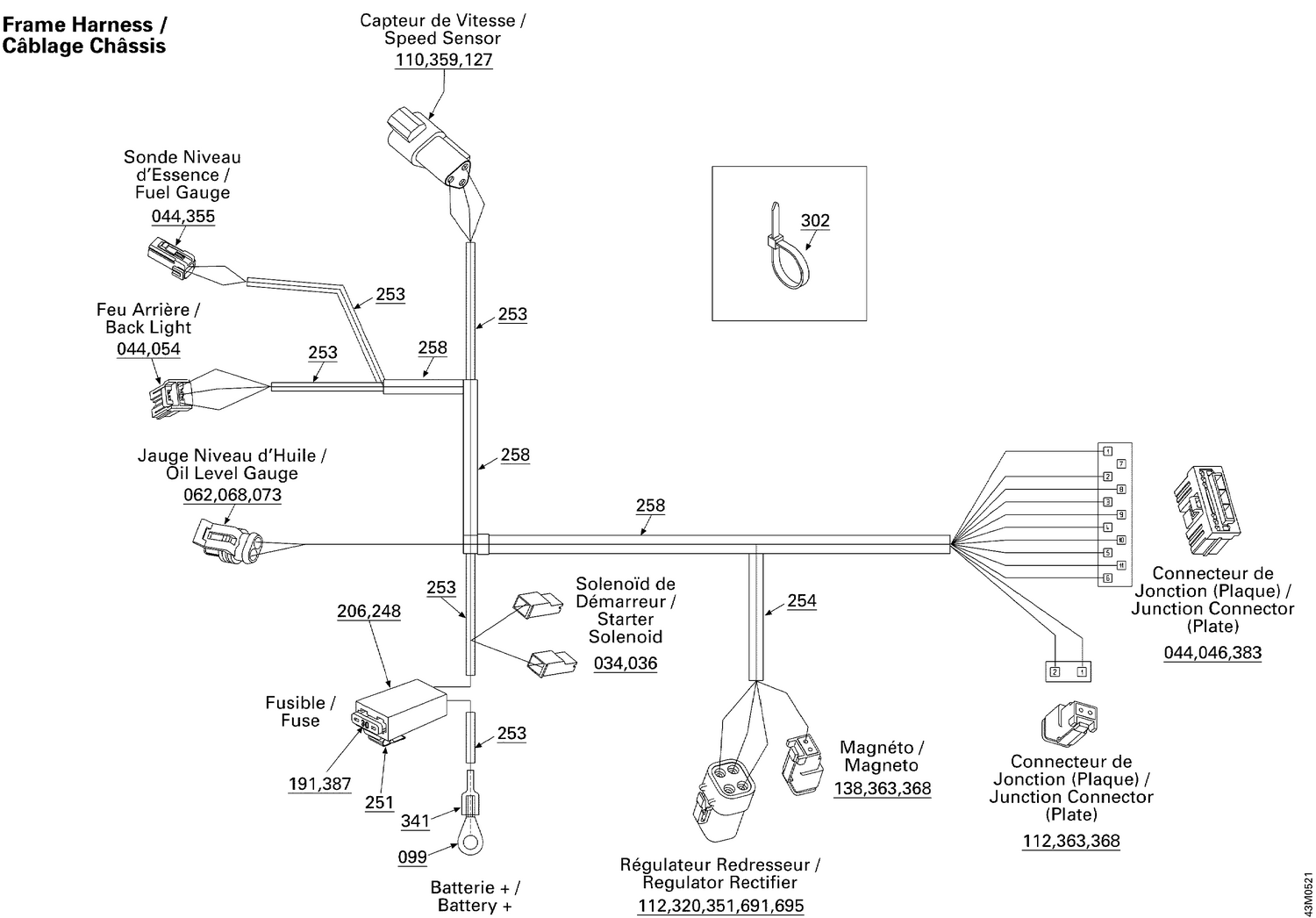

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 62 |
278001014 |
Female Terminal |
| 68 |
409209500 |
Female Housing, 2 Circuits |
| 73 |
278001013 |
Wire Seal |
| 99 |
278000992 |
Open Barrel |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 206 |
409004200 |
Female Terminal |
| 248 |
409004000 |
Fuse Holder |
| 251 |
409014200 |
CLIP - Call your local BRP dealership |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 302 |
293750001 |
Tie Wrap 94 mm |
| 320 |
515175567 |
Female Terminal |
| 341 |
515175608 |
Tubing Shrink |
| 351 |
278001474 |
Female Lock, 4 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 359 |
515175666 |
Male Housing |
| 363 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 368 |
515175675 |
Female Lock, 2 Circuits |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 691 |
278002027 |
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
