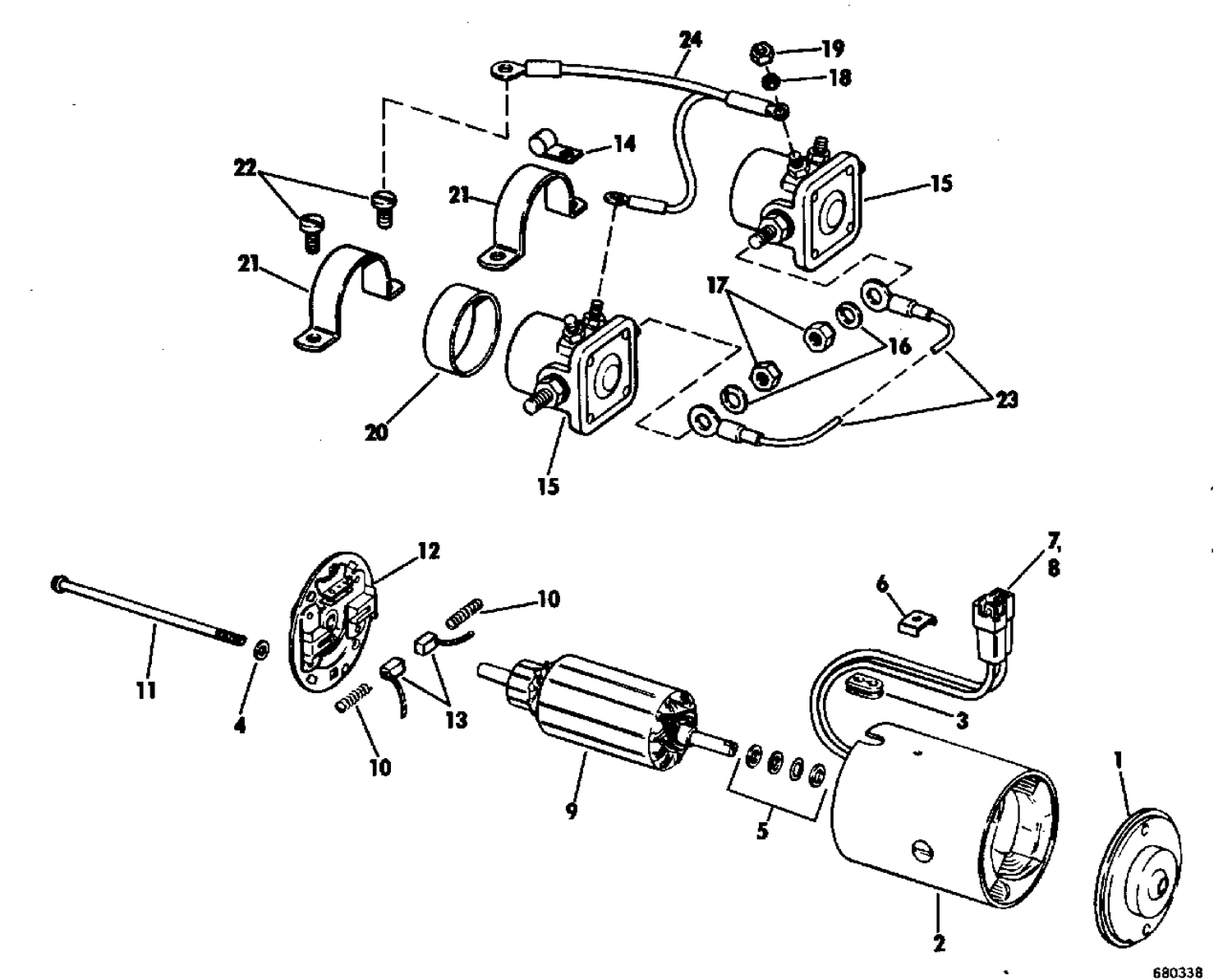

| Ref | Part Number | Description |
|---|
| 1 |
0380705 |
HEAD ASSEMBLY |
| 2 |
0382444 |
FRAME & FIELD COIL ASSEMBLY |
| 3 |
0309595 |
GROMMET |
| 4 |
0312013 |
HOUSING |
| 5 |
0380752 |
THRUST WASH AND SPACER PKG |
| 6 |
0312014 |
CLAMP |
| 7 |
0510472 |
CONNECTOR |
| 9 |
0382544 |
ARMATURE ASSEMBLY |
| 11 |
0382443 |
THRU BOLT PACKAGE |
| 12 |
0382545 |
HEAD ASSEMBLY COMMUTATOR END BRUSH SET |
| 14 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 17 |
0303783 |
NUT |
| 20 |
0311217 |
MANCHON, solénoïde |
| 21 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 22 |
0303311 |
SCR,Clamp,eng cable |
| 23 |
0981890 |
LEAAD ASSY This part replaces 0380353. |
| 0382138 |
0382138 |
POWER PISTON ASSY |
