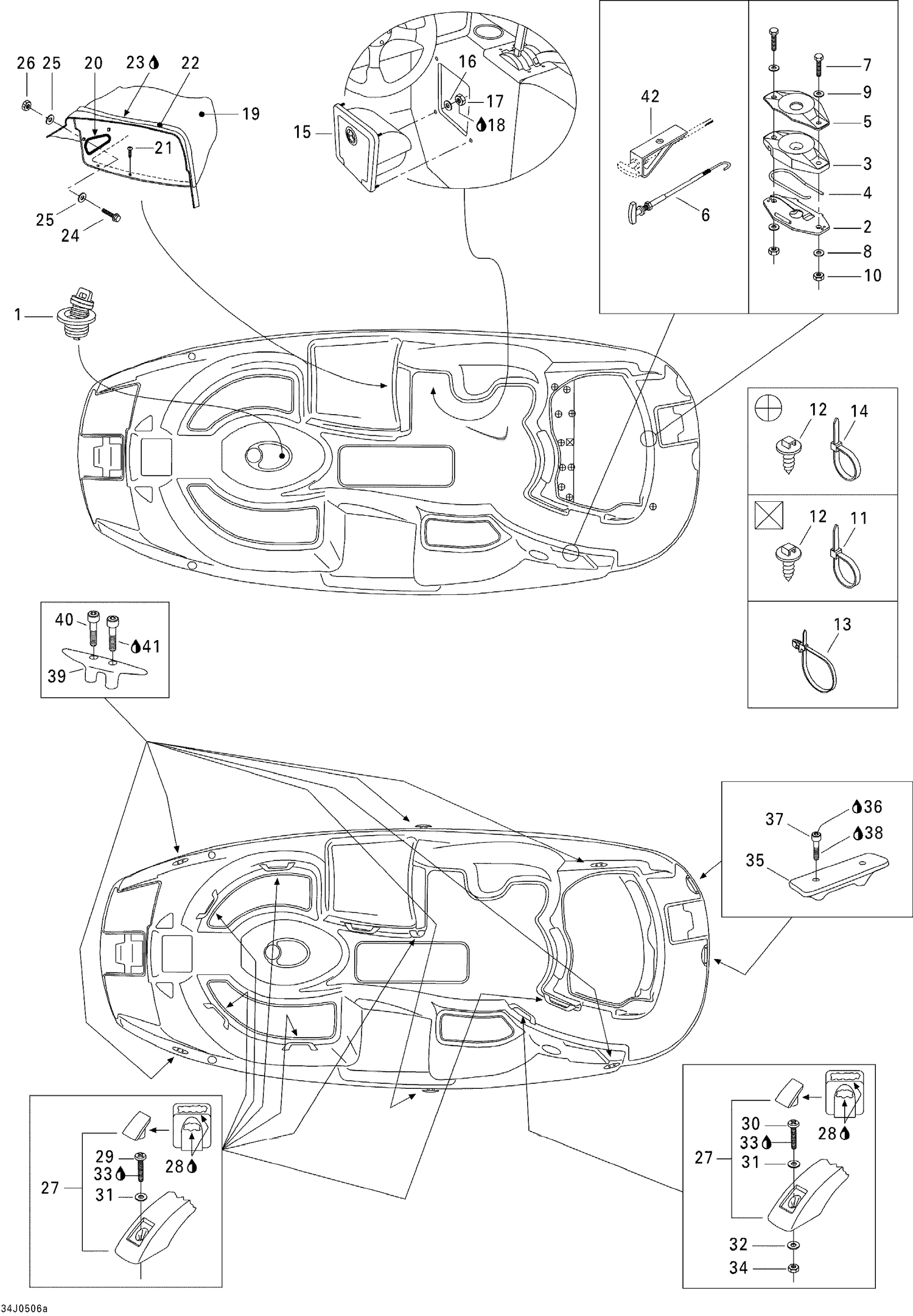

| Ref | Part Number | Description |
|---|
| 1 |
204070857 |
Drain Plug |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 4 |
204070038 |
SPRING - Call your local BRP dealership |
| 5 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 6 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 7 |
207163560 |
Hex. Screw M6 X 35 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
234061600 |
Stainless Flat Washer M6 |
| 10 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 11 |
293750008 |
Tie Wrap 368 mm |
| 12 |
293730040 |
Mount Dart This part replaces 293730018. |
| 13 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 14 |
414115200 |
Tie-Rap 180 mm |
| 15 |
204071084 |
GLOVE BOX - Call your local BRP dealership |
| 16 |
234052600 |
Flat Washer 5 mm, Stainless |
| 17 |
0460000 |
NUT-STOP ELASTIC 1 - Call your local BRP dealership This part replaces 204100034. |
| 18 |
293800060 |
Loctite 243, 10 ml |
| 19 |
Not |
Available As Spare Part - Helm Console |
| 20 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 21 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 22 |
204050048 |
TRIM, WHITE - Call your local BRP dealership |
| 24 |
207163060 |
Hex. Screw M6 X 30 |
| 25 |
234062600 |
Flat Washer M6, Stainless |
| 26 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 27 |
204071710 |
Handle Grip |
| 29 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 30 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 31 |
234061600 |
Stainless Flat Washer M6 |
| 32 |
234062600 |
Flat Washer M6, Stainless |
| 33 |
293800060 |
Loctite 243, 10 ml |
| 34 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 35 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 36 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 37 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 38 |
293800060 |
Loctite 243, 10 ml |
| 39 |
204070592 |
CLEAT - Call your local BRP dealership |
| 40 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 41 |
293800060 |
Loctite 243, 10 ml |
