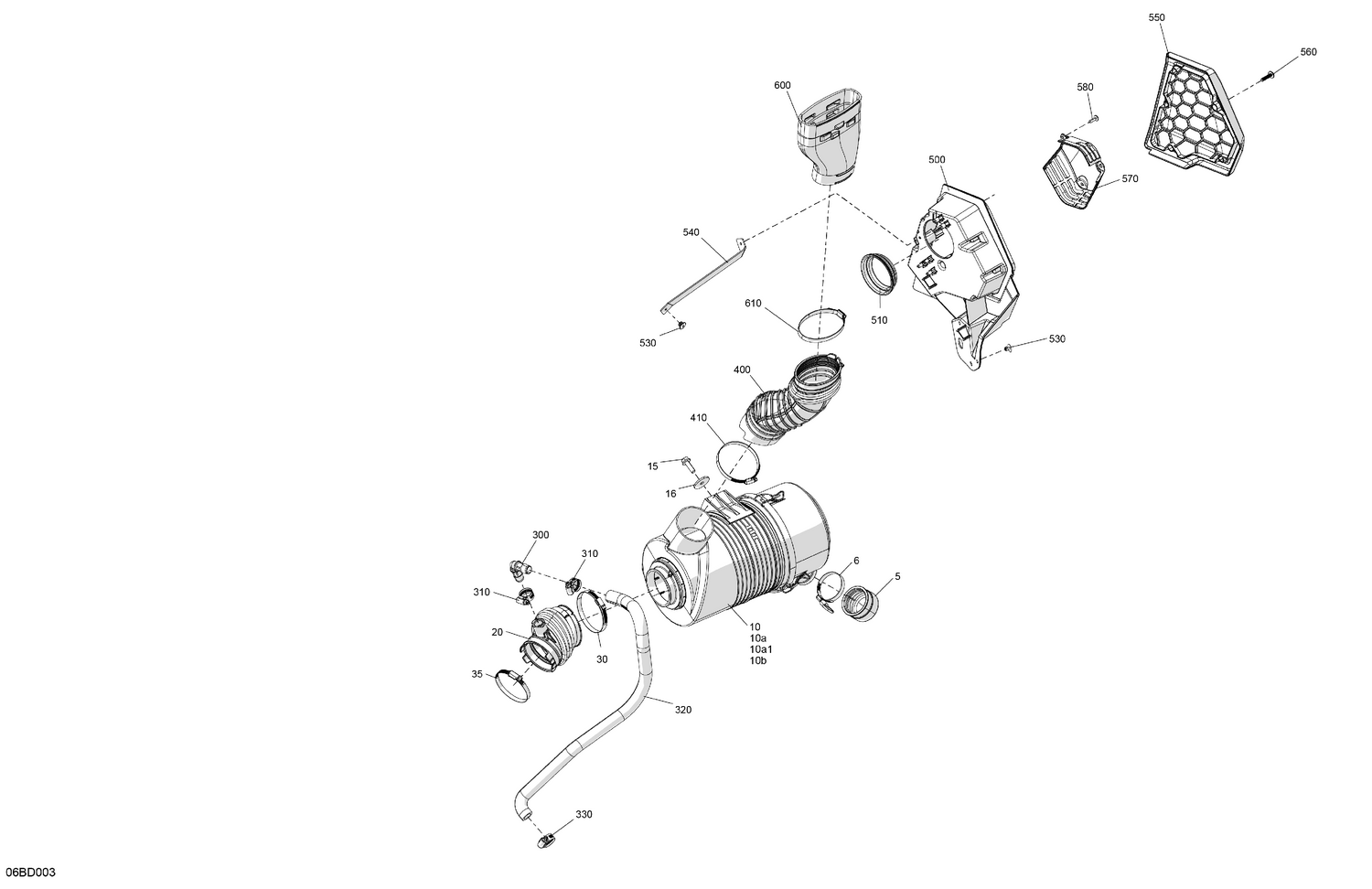

02- Engine - Air Intake
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 707800769 | Vacuator Cap |
| 6 | 293650269 | Turn Key Clamp |
| 10a1 | 707800844 | Intake Silencer Gasket |
| 10b | 715900422 | Premium Air Filter |
| 15 | 207682544 | Hex. Flange Screw M8 X 25 |
| 16 | 250200158 | Flat Washer M8 |
| 20 | 707800754 | Air Intake Adapter |
| 30 | 293650096 | Norma Clamp |
| 35 | 293650091 | Norma Clamp |
| 300 | 293710155 | Elbow Fitting 90 |
| 310 | 293650173 | Tridon Gear Clamp |
| 320 | 707800755 | Blow-By Hose |
| 330 | 293650173 | Tridon Gear Clamp |
| 400 | 707800791 | Inlet Hose |
| 410 | 293650096 | Norma Clamp |
| 500 | 707800865 | Air Intake Box |
| 510 | 707002217 | Plug |
| 530 | 293150104 | Pop Rivet 3/16" |
| 540 | 707801109 | Duct Support |
| 550 | 707800818 | Air Intake Grid |
| 560 | 250000980 | Hex. Screw Pt K60 X 25 |
| 570 | 707800762 | Baffle |
| 580 | 250000720 | Torx Screw K50 X 16 |
| 600 | 707800792 | Air Inlet Fitting |
