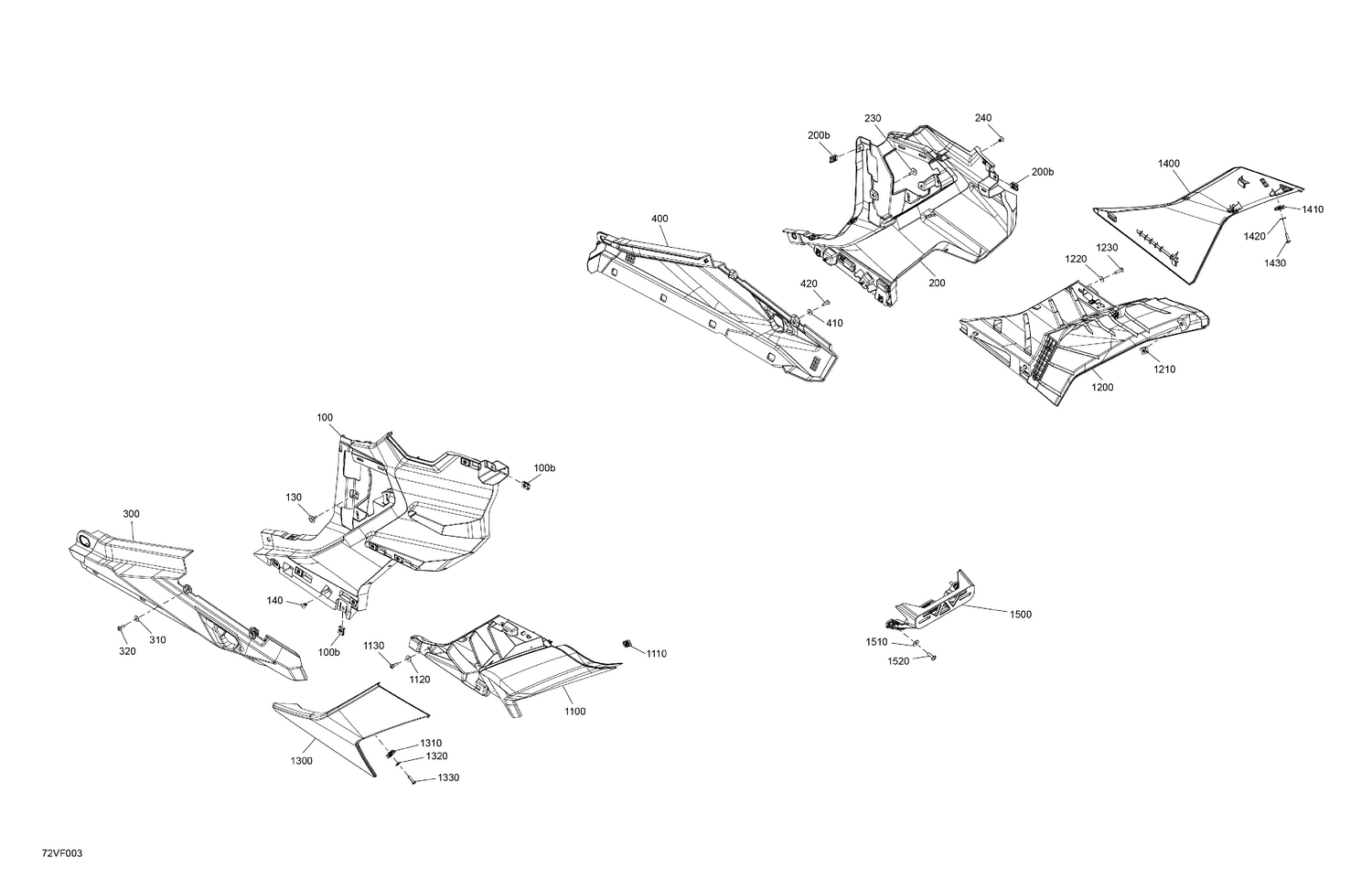

07- Body - Rear Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 100b | 250100208 | Panel Nut M6 X 1.0 |
| 130 | 250001165 | Hex Sems Screw M6X20 |
| 140 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 200b | 250100208 | Panel Nut M6 X 1.0 |
| 230 | 250001165 | Hex Sems Screw M6X20 |
| 240 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 300 | 705016451 | LH Rear Rocker Panel |
| 310 | 234062670 | Stainless Steel Flat Washer |
| 320 | 250000722 | Torx Screw M6 X 20 |
| 400 | 705016452 | RH Rear Rocker Panel |
| 410 | 234062670 | Stainless Steel Flat Washer |
| 420 | 250000722 | Torx Screw M6 X 20 |
| 1100 | 705016469 | LH Rear Mud Guard |
| 1110 | 250100208 | Panel Nut M6 X 1.0 |
| 1120 | 234062670 | Stainless Steel Flat Washer |
| 1130 | 250000807 | Torx Truss Screw M6 X 25 |
| 1200 | 705016470 | RH Rear Mud Guard |
| 1210 | 250100208 | Panel Nut M6 X 1.0 |
| 1220 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 250000807 | Torx Truss Screw M6 X 25 |
| 1300 | 705018949 | Legion Red, LH Lower Body Panel |
| 1310 | 250100208 | Panel Nut M6 X 1.0 |
| 1320 | 234062670 | Stainless Steel Flat Washer |
| 1330 | 250000807 | Torx Truss Screw M6 X 25 |
| 1400 | 705018950 | Legion Red, RH Lower Body Panel |
| 1410 | 250100208 | Panel Nut M6 X 1.0 |
| 1420 | 234062670 | Stainless Steel Flat Washer |
| 1430 | 250000807 | Torx Truss Screw M6 X 25 |
| 1500 | 705017197 | License Plate Support |
| 1510 | 234062670 | Stainless Steel Flat Washer |
