Home / BRP / STERN DRIVE / 1993 / 5 / 50FAPLJVB 1993 / UPPER GEAR HOUSING

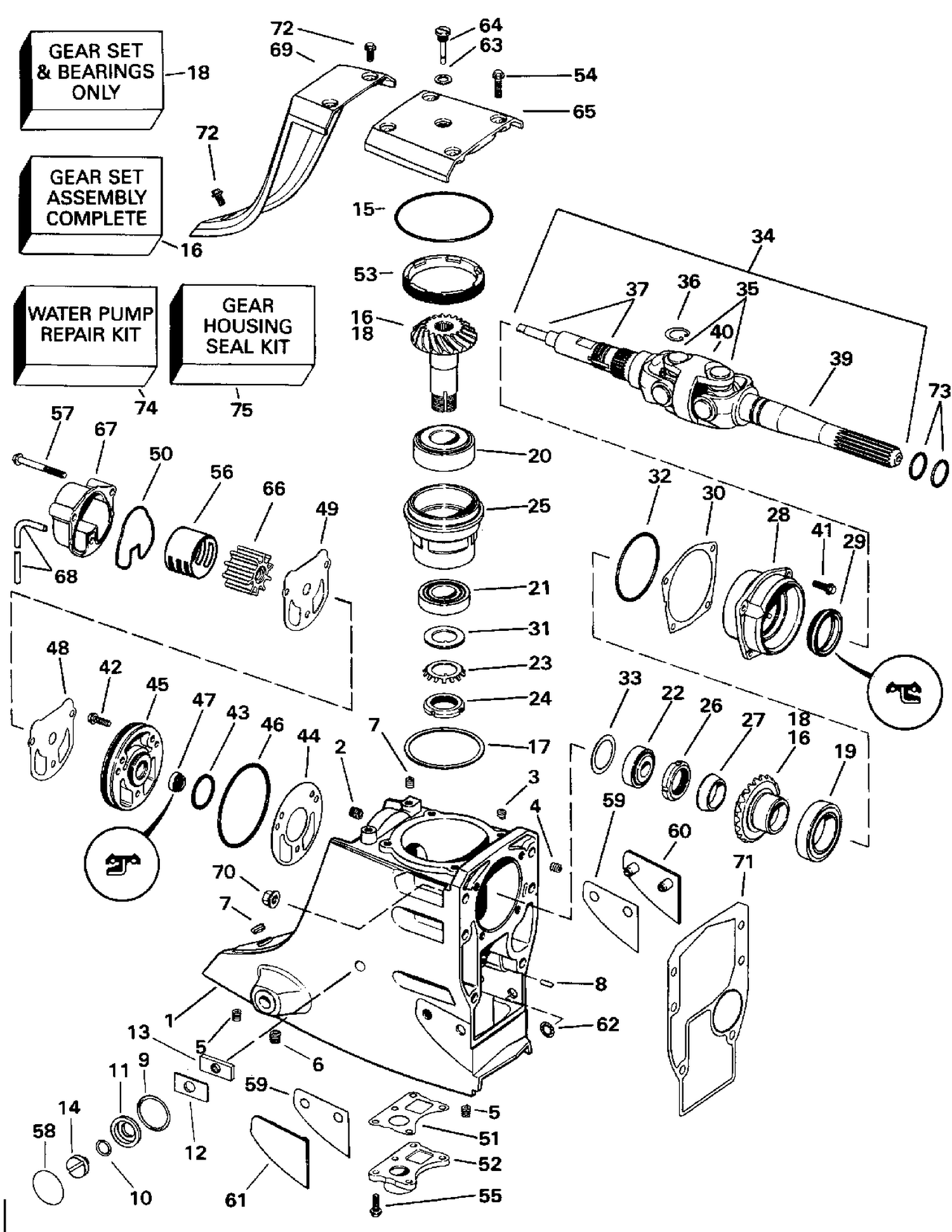

UPPER GEAR HOUSING

UPPER GEAR HOUSING

Parts (90)

RefPart NumberDescription
1 0984518 GEAR HOUSING & INSERTS
2 0910901 INSERT
3 0910901 INSERT
4 0910901 INSERT
5 0910935 INSERT, 3/8-16
6 3852541 INSERT, 7/16 -14 This part replaces 0911779.
7 3852567 INSERT This part replaces 0911858.
8 0912137 GUIDE, Shift rod
9 0314491 O RING
11 0912314 PLUG, Gear housing
12 0912315 WASHER, Plug
13 0912316 NUT, Gear housing
14 0912349 PLUG, Gear housing
15 0313175 O RING, Cover
16 0983918 GEAR SET ASSY., 21:18
16 0983919 GEAR SET ASSY., 21:17
17 0911668 SHIM, Bearing carrier .010"
17 0911669 SHIM, Bearing carrier .011"
17 0911670 SHIM, Bearing carrier .012"
17 0911671 SHIM, Bearing carrier .013"
17 0911672 SHIM, Bearing carrier .014"
17 0911673 SHIM, Bearing carrier .015"
17 0911674 SHIM, Bearing carrier .016"
17 0911675 SHIM, Bearing carrier .017"
17 0911676 SHIM, Bearing carrier .018"
17 0911677 SHIM, Bearing carrier .019"
18 0983826 GEAR SET, 21:18
18 0983835 GEAR SET, 21:17
19 0983877 BEARING, Bearing carrier
20 0983891 BEARING, Pinion, upper
21 0983892 BEARING, Pinion lower
22 0983878 BEARING, U-joint shaft
23 0911752 RETAINER, Nut
24 0911753 NUT, Pinion
25 0911750 BEARING CARRIER, Pinion
26 0911937 NUT, Gear to U-joint
27 0912029 CENTERING CONE
28 0911683 BEARING CARRIER, Gear
29 0911685 SEAL, Bearing carrier
30 0911678 SHIM, Bearing carrier .003"
30 0911679 SHIM, Bearing carrier .004"
30 0911680 SHIM, Bearing carrier .005"
30 0911681 SHIM, Bearing carrier .010"
31 0911697 WASHER, Pinion
32 0911686 O-RING, Adaptor to gear housing
33 0911662 SHIM Gear position, 0.003"
33 0911663 SHIM, Gear position .005"
33 0911664 SHIM, Gear position .007"
33 0911665 SHIM, Gear position .010"
33 0911666 SHIM, Gear position .012"
33 0911667 SHIM, Gear position .015"
34 0983880 U-JOINT & WATER PUMP SHAFT
35 3850812 U-JOINT This part replaces 0915717.
36 3850757 RETAINER, U-joint This part replaces 0914674.
37 0984264 STUB & WATER PUMP SHAFT
39 0912212 SHAFT, Yoke
40 0912213 DOUBLE CENTER
41 0341013 SCREW, Cover This part replaces 0908668.
42 0341013 SCREW, Cover This part replaces 0908668.
43 0909316 O-RING , Adaptor, small
44 0911698 GASKET, Adapter to gear hsg
45 0911699 ADAPTER, Water pump to gear hsg
47 3853655 SEAL, Water pump adaptor This part replaces 0916058.
48 0911702 GASKET, Plate to adapter
49 0911703 GASKET, Water pump
50 0911704 SEAL, Water pump housing
51 0911733 GASKET, Plate
52 0911734 COVER, Water passage
53 0911751 RETAINER RING, Pinion hsg
55 0341013 SCREW, Cover This part replaces 0908668.
56 0911844 LINER, Water pump
57 0912238 SCREW, Anchor block
58 0911848 MEDALLION
59 3852563 SHIM, Thrust plate, 0.015 in. This part replaces 0911839.
60 3852561 PLATE, Thrust, port This part replaces 0911837.
61 3852562 PLATE, Thrust, starboard This part replaces 0911838.
62 0910953 RETAINER RING, Thrust plate
64 0914488 INDICATOR PLUG Oil level
65 0914489 COVER, Gear housing
66 0983895 IMPELLER ASSY., Water pump
67 0984744 IMPELLER HOUSING
68 0912614 VENT HOSE, Impeller hsg
69 0983967 COVER, Anchor block
70 3853329 LOCKNUT, Transom plate This part replaces 0914772.
71 0915840 GASKET, Gear housing to pivot
72 3852568 SCREW, Cover This part replaces 0911859.
73 3852565 O-RING, U-joint This part replaces 0911851.
74 0984461 WATER PUMP REPAIR KIT
0986382 0986382 GEAR HSG. ASSY., 21:18
0986736 0986844 GEAR HSG. ASSY., 21:17 This part replaces 0986736.
