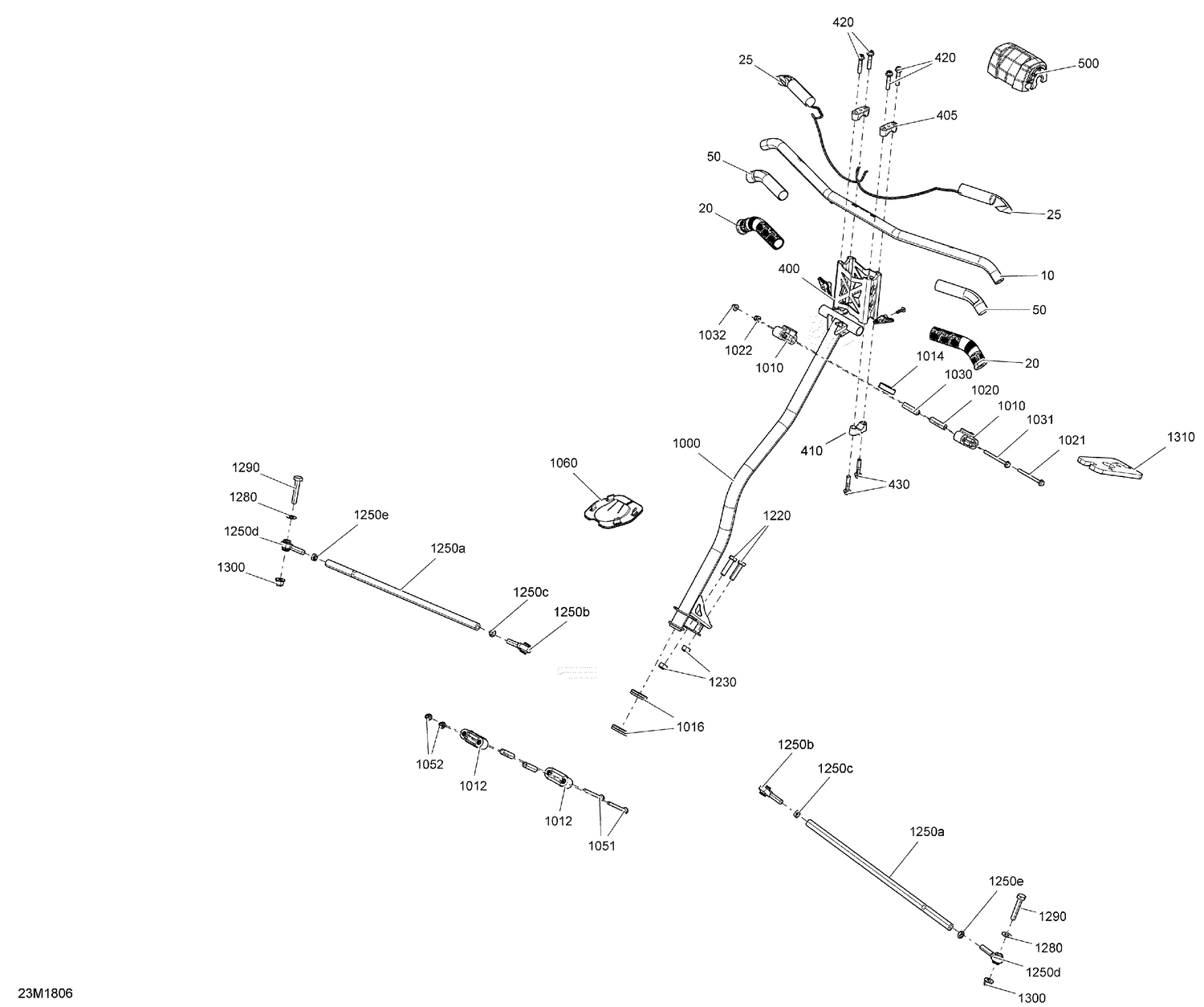

| Ref | Part Number | Description |
|---|
| 10 |
506152709 |
Handle Bar, Non Dyed Clear Anodizing |
| 20 |
506152560 |
Grip 148mm |
| 25 |
506152798 |
Heating Element 32 Watt 3 Wires |
| 35 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 50 |
506153176 |
Thermal Insulation This part replaces 506152548. |
| 400 |
860200819 |
HANDLEBAR EXTENSION KIT (115MM) - Call your local BRP dealership This part replaces 506152571. |
| 405 |
506152751 |
Steering Support This part replaces 506152750. |
| 410 |
506152751 |
Steering Support |
| 420 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 |
| 430 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 |
| 500 |
506152541 |
Deep Black, Steering Pad |
| 1000 |
506152962 |
Steering Column |
| 1010 |
506152508 |
Upper Half-Housing |
| 1012 |
506152217 |
Lower Half-Housing |
| 1014 |
506152509 |
Upper Anti-Vibration Gasket |
| 1016 |
506152518 |
Lower Vibration Ring |
| 1020 |
506152297 |
Housing Bushing |
| 1021 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1022 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1030 |
506152297 |
Housing Bushing |
| 1031 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1032 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1040 |
506152297 |
Housing Bushing |
| 1041 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1042 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1050 |
506152297 |
Housing Bushing |
| 1051 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1052 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1060 |
506152163 |
Plate |
| 1220 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 1230 |
233601466 |
Elastic Locking Nut M10 |
| 1250a |
506152496 |
Tie-Rod Ass'y |
| 1250b |
506152081 |
LH Thread Ball Joint |
| 1250c |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 1250d |
506152019 |
RH Threaded Ball Joint |
| 1250e |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 1260 |
503192496 |
Washer |
| 1280 |
506152582 |
Washer |
| 1290 |
207005554 |
Hex Screw M10 X 1.5 X 55 |
| 1300 |
233201464 |
Hex. Flange Elastic M10 x 1.5 |
