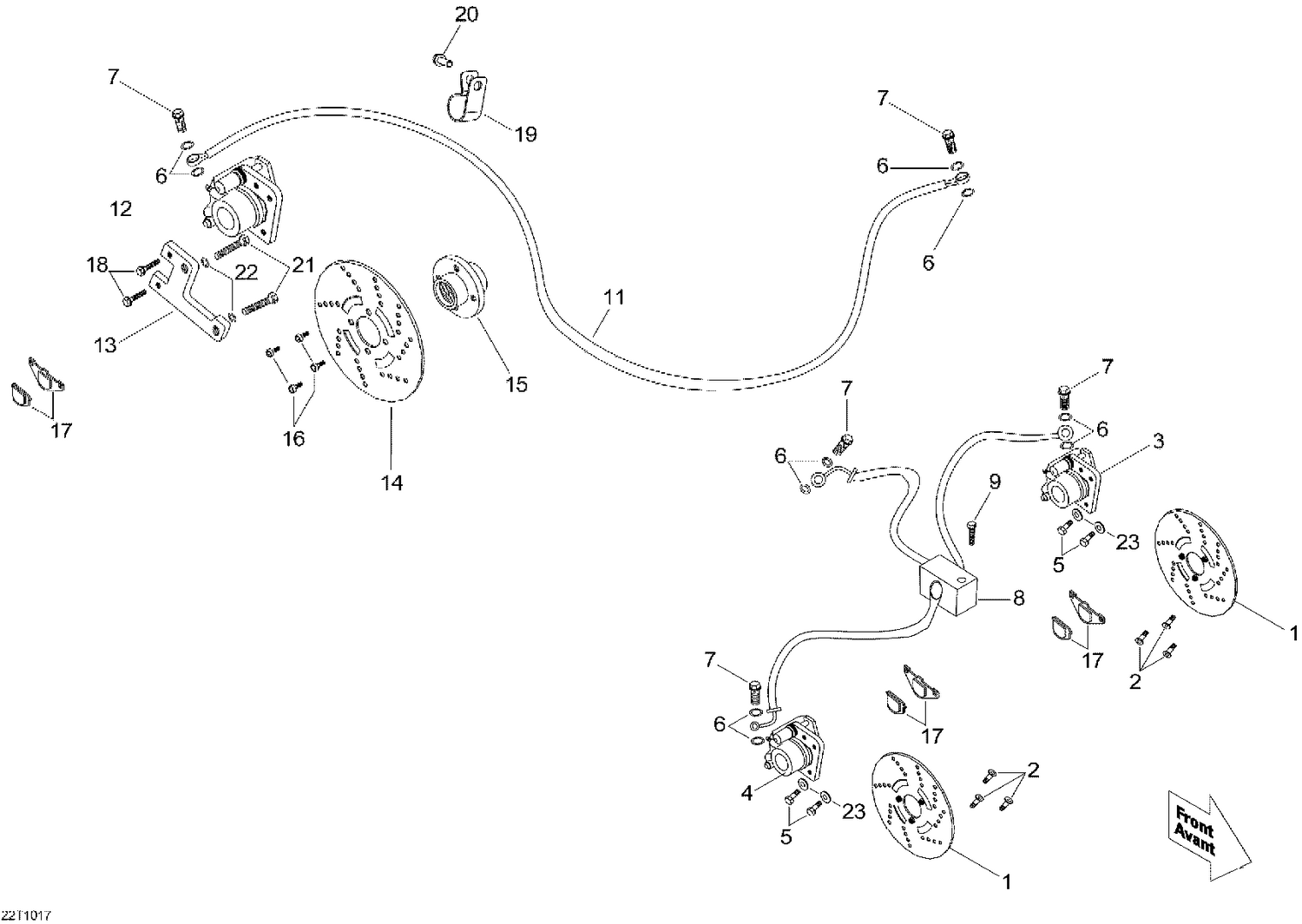

06- Brakes
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V45111CEK000LL | Front Brake Disk |
| 2 | V9010508024 | Front Brake Disc Bolt |
| 3 | V45222DGF01HLL | LH Front Caliper This part replaces V45222DGF01H. |
| 4 | V45221DGF01HLL | RH Front Caliper This part replaces V45221DGF01H. |
| 5 | 207682044 | Hex. Flange Screw M8 X 20 |
| 6 | V46964MAC000 | Washer |
| 7 | V46963MAC020LL | Bolt This part replaces V46963MAC020. |
| 8 | V46966DGF11HLL | Répartiteur This part replaces V46966DGF11H. |
| 9 | 207662544 | Hex. Flange Screw M6 X 25 |
| 11 | V46964DGF04HLL | Brake Hose This part replaces V46964DGF04H. |
| 12 | V45200MAC000LL | Rear Caliper |
| 13 | V50295MAC020 | Rear Caliper Bracket This part replaces V50295MAC010. |
| 14 | V45121MAC000 | Rear Brake Disc |
| 15 | V45122MAC000 | REAR BRAKE DISC BRACKET - Call your local BRP dealership |
| 16 | A9100006012K | Hexagonal Socket Bolt This part replaces A9100006012. |
| 17 | V45151DGF00HBKLL | Brake Pad Kit |
| 18 | 207682544 | Hex. Flange Screw M8 X 25 |
| 19 | V50126DGF00H | Clip |
| 20 | 207661244 | Hex. Flange Screw M6 X 12 |
| 21 | V9200012050 | Hex. Screw |
| 22 | V9411112000 | Spring Washer |
