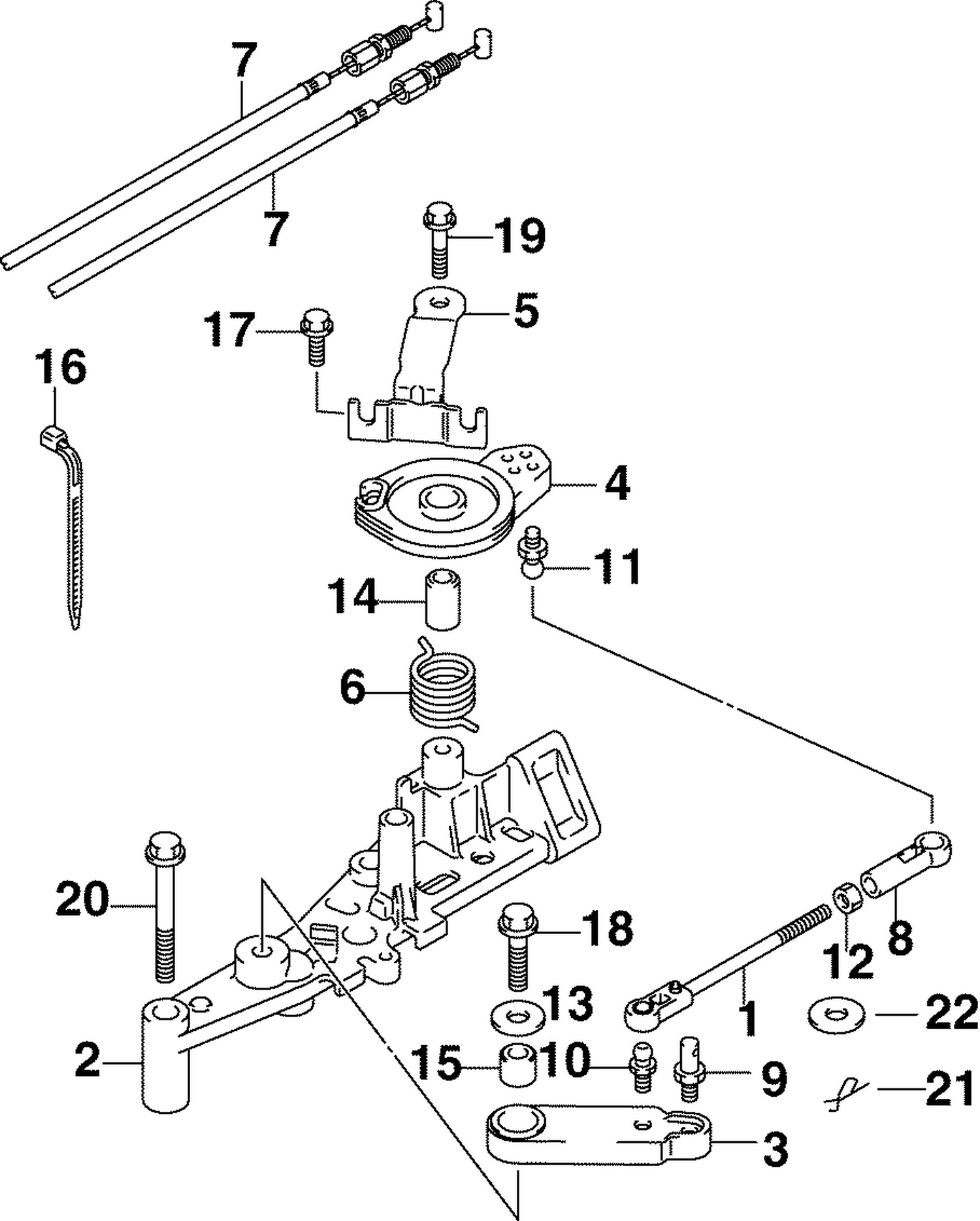

THROTTLE LINKAGE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034970 | ROD, THROTTLE NO.1 |
| 2 | 5035059 | HOLDER, THROTTLE LEVER |
| 3 | 5035060 | LEVER, THROTTLE NO.1 |
| 4 | 5035061 | DRUM, THROTTLE |
| 5 | 5035062 | BRACKET, THROTTLE CABLE |
| 6 | 5035063 | SPRING, THROTTLE LEVER |
| 7 | 5035203 | CABLE, THROTTLE |
| 9 | *5032289 | PIN,CONNECTOR |
| 10 | 5030403 | BOLT |
| 11 | 5030340 | PIVOT, THROTTLE DRUM |
| 13 | 5035243 | WASHER, THROTTLE LEVER |
| 14 | 5031236 | SPACER |
| 15 | 5035272 | ENTRETOISE, levier d'embrayage |
| 21 | *5030575 | CLIP |
