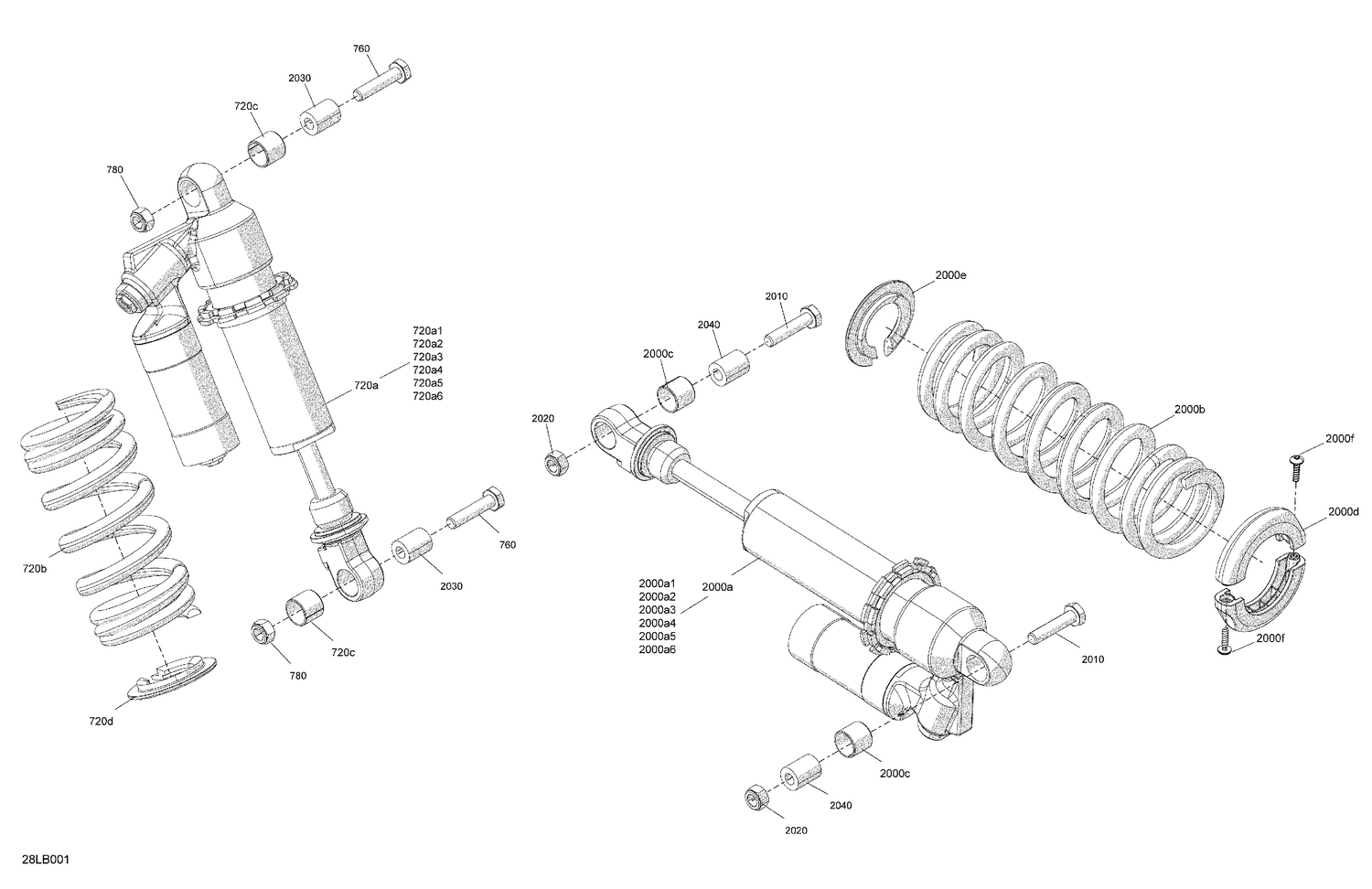

05- Suspension - Rear Shocks
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 720a1 | 415093807 | O-Ring |
| 720a2 | 415093806 | Piston Ring |
| 720a3 | 505070398 | Air Valve |
| 720a4 | 505070399 | Screw |
| 720a5 | 505070400 | O-Ring |
| 720a6 | 415093804 | O-Ring |
| 720b | 503195211 | Black, Spring, 220MM-55N/MM |
| 720c | 503195134 | Glide Bearing |
| 720d | 605354631 | Fjäder stoppare dak dä,päre |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 2000a1 | 415093807 | O-Ring |
| 2000a2 | 415093806 | Piston Ring |
| 2000a3 | 505070398 | Air Valve |
| 2000a4 | 505070399 | Screw |
| 2000a5 | 505070400 | O-Ring |
| 2000a6 | 415093804 | O-Ring |
| 2000b | 503195210 | Black, Spring 280 MM-55 N/MM |
| 2000c | 503195134 | Glide Bearing |
| 2000d | 503196256 | Protection Sleeve |
| 2000e | 605354631 | Fjäder stoppare dak dä,päre |
| 2000f | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
