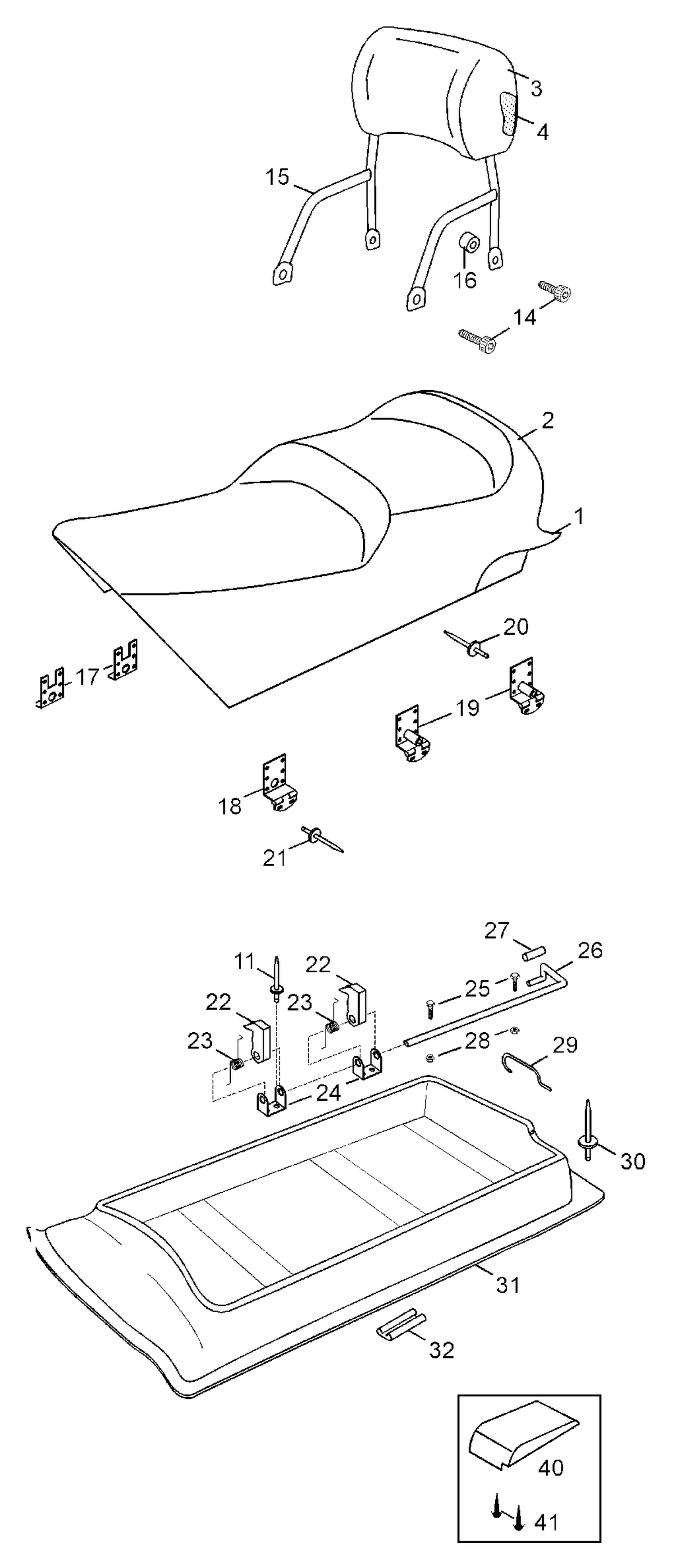

| Ref | Part Number | Description |
|---|
| 1 |
5344705 |
Seat Cover |
| 2 |
5244704 |
Seat |
| 3 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 4 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 11 |
36083 |
Rivet |
| 14 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 15 |
5342100 |
Backrest |
| 16 |
5440665 |
SPACER - Call your local BRP dealership |
| 17 |
5441278 |
Locking plate |
| 18 |
5441918 |
Hinge front |
| 19 |
5441279 |
Hinge rear |
| 20 |
36071 |
Rivet |
| 21 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 22 |
549605 |
Locking device |
| 23 |
5441847 |
Spring |
| 24 |
5441362 |
Using grip support |
| 25 |
40144 |
Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 26 |
539875 |
Locking lever |
| 27 |
28019 |
Cap |
| 28 |
33008 |
Nut elastic M4 |
| 29 |
5441849 |
Limiter |
| 30 |
36036 |
Rivet |
| 31 |
5242664 |
Seat box |
| 32 |
5442641 |
Seal rubber |
| 37 |
36009 |
Rivet |
| 40 |
414975300 |
Rear Footrest R.H. |
| 40 |
414975400 |
Rear Footrest L.H. |
