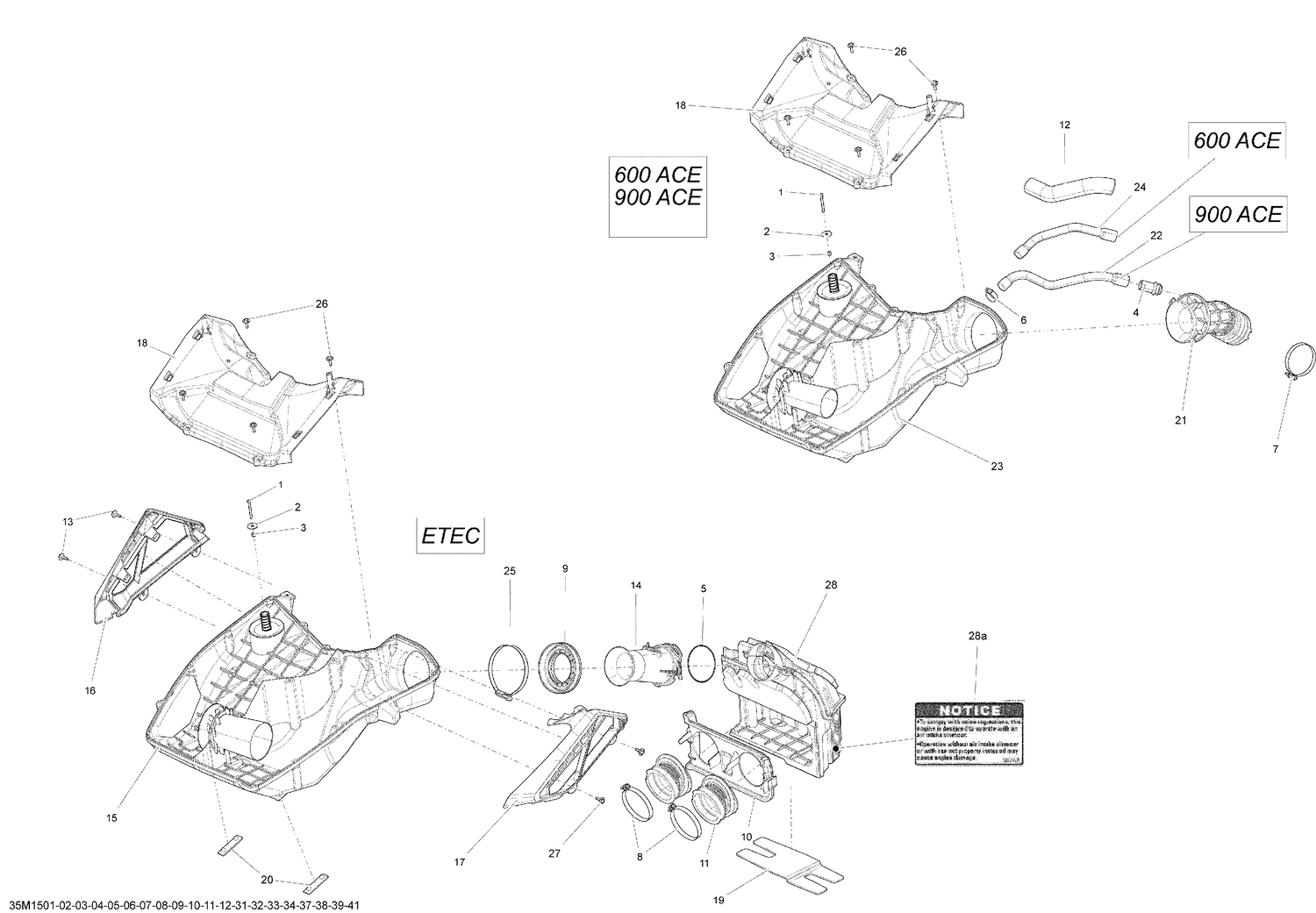

02- Air Intake System _35M1504
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205444086 | Socket Head Screw M4 X 40 |
| 2 | 224060201 | Flat Washer |
| 3 | 232541414 | Elastic Stop Nut M4 |
| 4 | XXX | Not Available As Spare Parts |
| 5 | 293300115 | O-Ring |
| 6 | XXX | Not Available As Spare Parts |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 508000346 | Gemi Clamp |
| 9 | 508000567 | Boot |
| 10 | 508000613 | Plate Adapter |
| 11 | 508000614 | Air Intake Adapter |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 250000725 | Screw M4 X 16 |
| 14 | 508000662 | Flute |
| 15 | 508000722 | Secondary Chamber Ass'y |
| 16 | 508000730 | RH Air Filter |
| 17 | 508000731 | LH Air Filter |
| 18 | 508000732 | Air Duct |
| 19 | 508000739 | Insulated Foam |
| 20 | 508000744 | Stopper |
| 21 | XXX | Not Available As Spare Parts |
| 22 | XXX | Not Available As Spare Parts |
| 23 | XXX | Not Available As Spare Parts |
| 24 | XXX | Not Available As Spare Parts |
| 25 | 514052924 | Norma Clamp |
| 26 | 250000725 | Screw M4 X 16 |
| 27 | 250000725 | Screw M4 X 16 |
