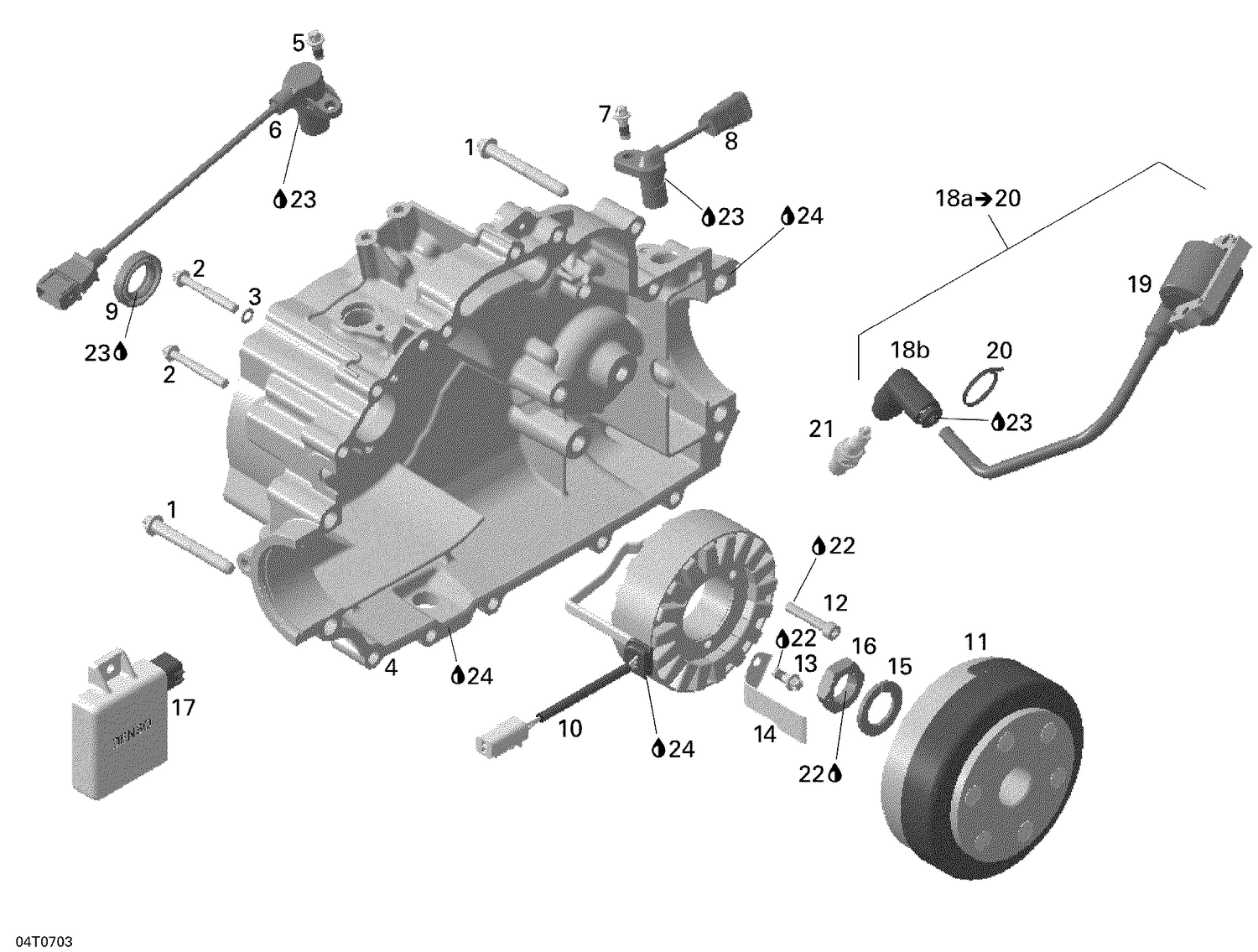

| Ref | Part Number | Description |
|---|
| 1 |
420440402 |
Torx Flange Screw M8 X 65 |
| 2 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 3 |
420230415 |
Seal Washer |
| 4 |
Not |
Available As Spare Part - Magneto Cover |
| 5 |
420440162 |
Torx Flange Screw M6 X 16 |
| 6 |
420966570 |
Crankshaft Position Sensor Ass'y |
| 7 |
420440162 |
Torx Flange Screw M6 X 16 |
| 8 |
420265727 |
Camshft Position Sensor Ass'y This part replaces 420265624. |
| 9 |
420930392 |
Oil Seal |
| 10 |
420684850 |
STATOR ASS'Y - Call your local BRP dealership |
| 11 |
420684045 |
MAGNETO FLYWHEEL - Call your local BRP dealership |
| 12 |
420440274 |
Torx Flange Screw M6 X 35 This part replaces 420440272. |
| 13 |
420440162 |
Torx Flange Screw M6 X 16 |
| 14 |
420251270 |
Inner Cable Cover |
| 15 |
420945759 |
Lock Washer, 22 mm |
| 16 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842237. |
| 17 |
420664285 |
AMPLIFIER BOX - Call your local BRP dealership |
| 18b |
420265248 |
Spark Plug Connector This part replaces 420265240. |
| 19 |
Not |
Available As Spare Part - Ignition Coil |
| 20 |
Not |
Available As Spare Part - Cable Clamp |
| 21 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
293550030 |
Grease, Super Lube |
