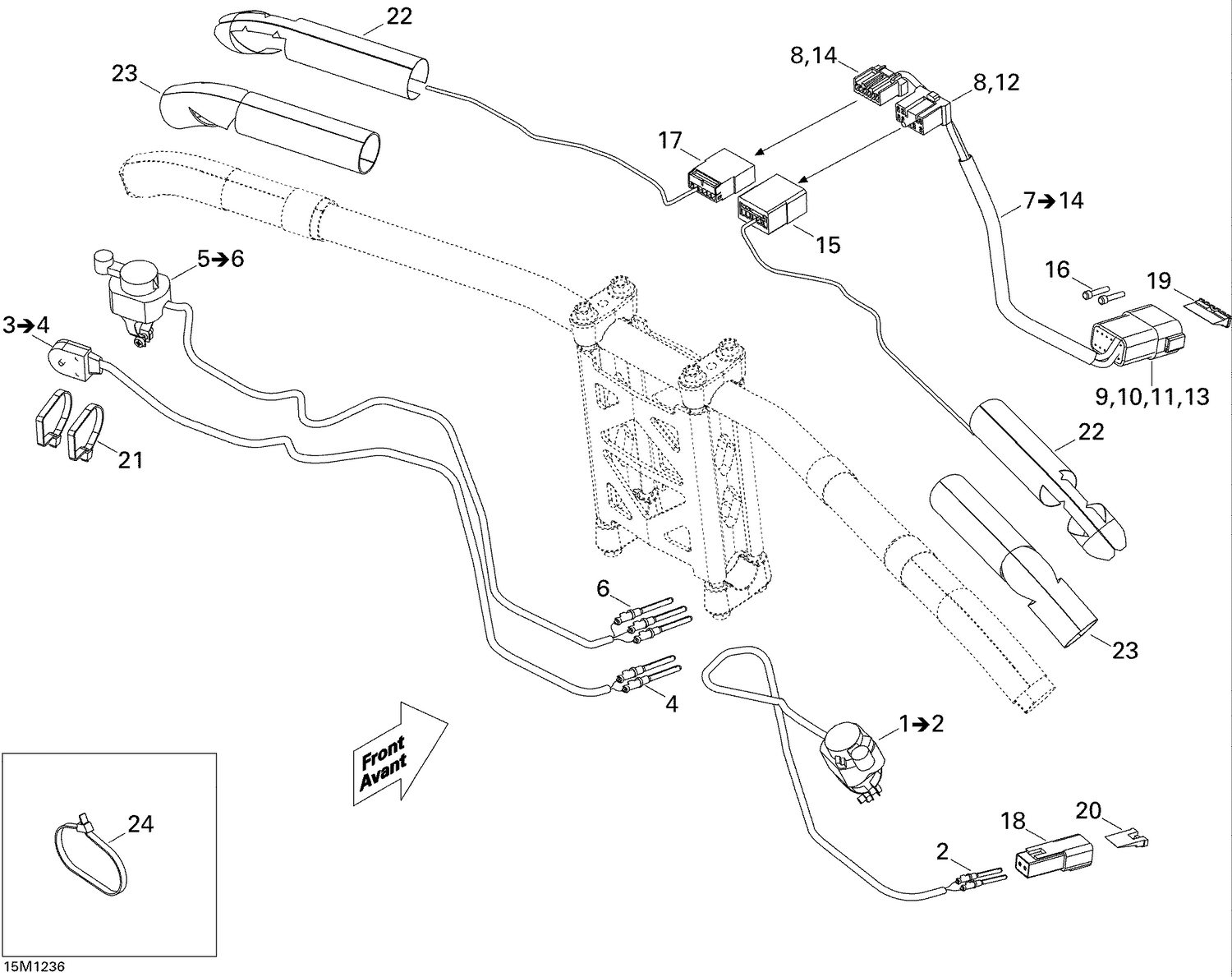

10- Steering Wiring Harness

Ref	Part Number	Description
2	515175768	MALE TERMINAL - Call your local BRP dealership
4	515175768	MALE TERMINAL - Call your local BRP dealership
6	515175768	MALE TERMINAL - Call your local BRP dealership
8	515175231	Female Terminal
9	278000631	Male Terminal
10	409015600	MALE LOCK, 12 CIRCUITS - Call your local BRP dealership
11	293000052	Sealing Cap
12	515175543	Female Terminal Housing, 6 Circuits
13	515175669	MALE HOUSING - Call your local BRP dealership
14	515175819	Female Terminal Housing, 8 Circuits
15	515175817	Male Terminal Housing, 8 Circuits
16	293000052	Sealing Cap
17	515175662	Male Terminal Housing, 6 Circuits
18	515175665	Male Terminal Housing, 2 Circuits
19	409015600	MALE LOCK, 12 CIRCUITS - Call your local BRP dealership
20	409207500	Male Lock, 2 Circuits
21	293750002	Tie Wrap 142 mm
22	506152484	Heating Element 20W
23	506152360	Insulant
24	293750001	Tie Wrap 94 mm
24	293750002	Tie Wrap 142 mm
24	414115200	Tie-Rap 180 mm
