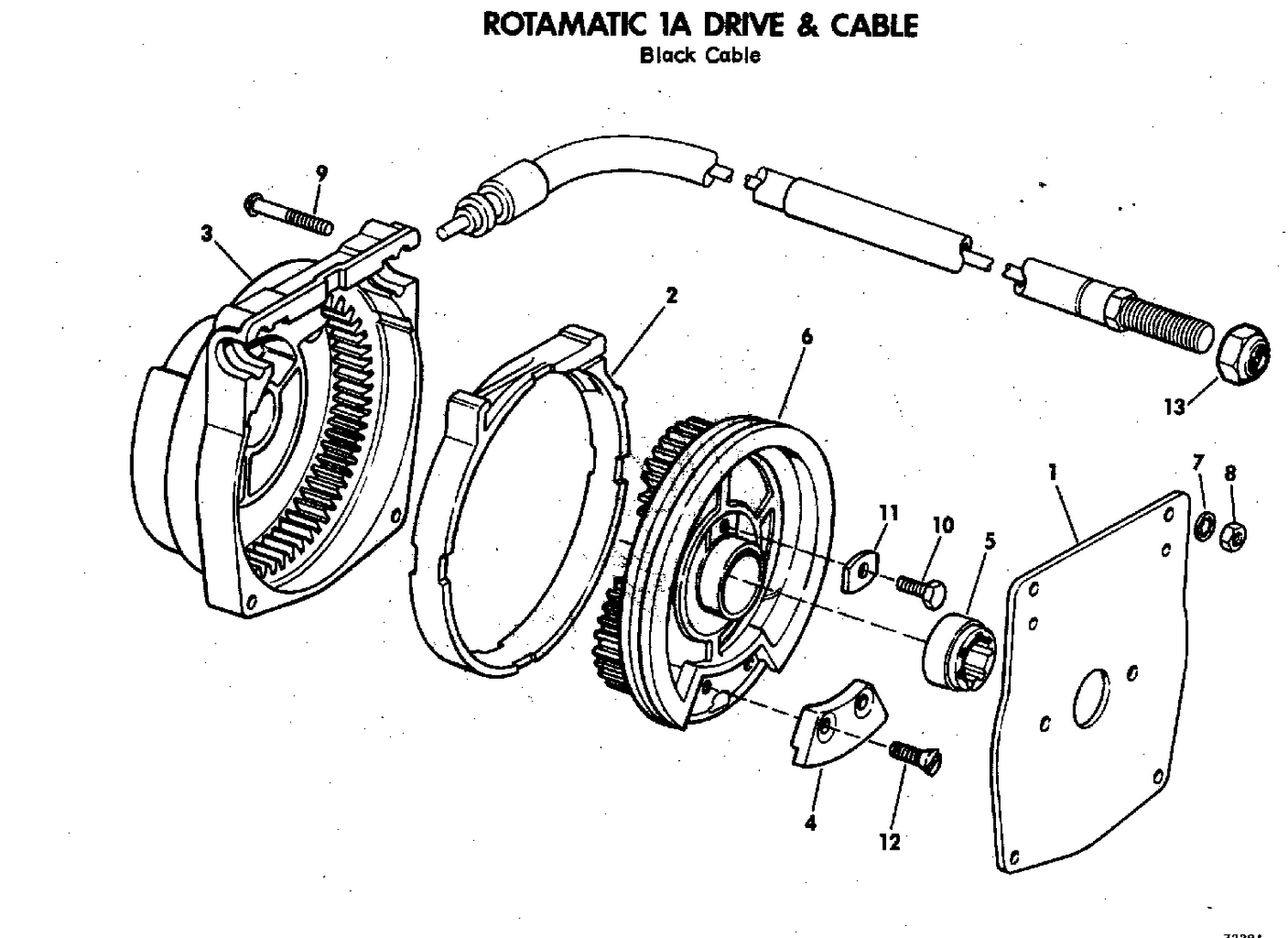

ROTAMATIC 1A DRIVE & CABLE Black Cable
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0122456 | COVER PLATE |
| 2 | 0122457 | RING, Backup |
| 3 | 0122458 | DECAL,Pump unit,johnson |
| 4 | 0122594 | ANCHOR, Cable |
| 5 | 0122460 | BEARING, Pinion |
| 6 | 0172711 | ROTOR ASSEMBLY |
| 8 | 0328742 | NUT This part replaces 0306338. |
| 9 | 0316767 | SCREW, Plate to housing |
| 10 | 0309512 | SCREW, Anchor bracket |
| 11 | 0122595 | WASHER |
| 12 | 0131922 | SCREW, Anchor |
| 0173410 | 0173410 | DRIVE & CABLE ASSY.,10' to |
| 0173440 | 0173440 | DRIVE & CABLE ASSY.,40' |
| 0173441 | 0173441 | DRIVE & CABLE ASSY.,41' to |
| 0173450 | 0173450 | DRIVE & CABLE ASSY.,50' |
