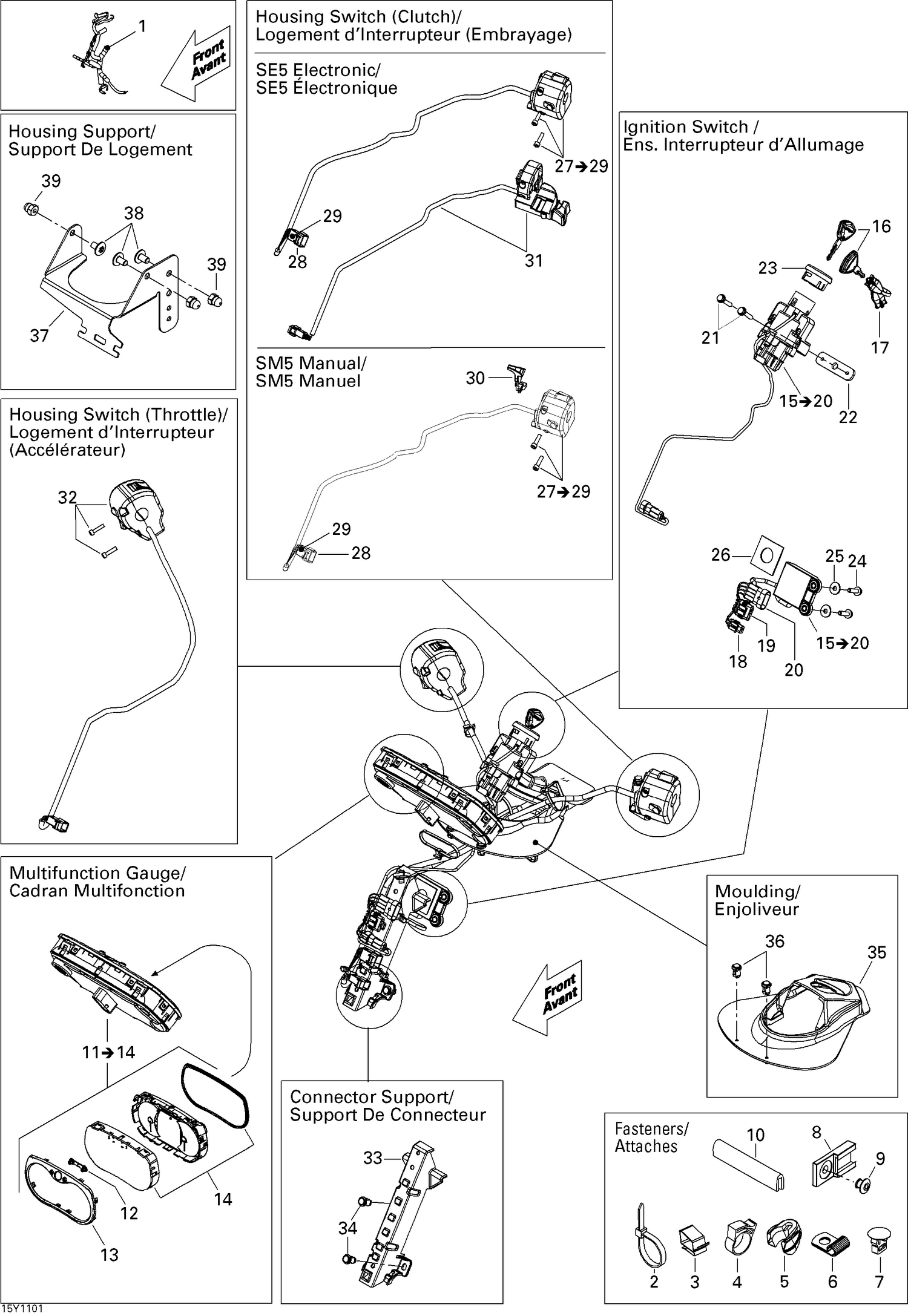

10- Electrical Accessories, Steering SE5
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293750008 | Tie Wrap 368 mm |
| 2 | 414115200 | Tie-Rap 180 mm |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 293650082 | Clamp |
| 5 | 710001452 | WIRE BRACKET - Call your local BRP dealership |
| 6 | 415052400 | Bracket |
| 7 | 293750044 | Tie Rap Mount |
| 8 | 270000141 | Clip |
| 9 | 390402400 | Pop Rivet 3/16" |
| 10 | 219704354 | Trim 1000Mm Long |
| 12 | 415129355 | Speedometer Button |
| 13 | 415129348 | Gauge Ring |
| 14 | 415129349 | Lens |
| 16 | 710002969 | Key Set with Cover (1 key) This part replaces 710001211. |
| 17 | 710003597 | Key Sleeve This part replaces 710001102. |
| 18 | 409209500 | Female Housing, 2 Circuits |
| 19 | 409209700 | Female Housing, 4 Circuits |
| 20 | 710000576 | HOUSING, 4CIRCUITS - Call your local BRP dealership |
| 21 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 22 | 710001365 | Switch Support |
| 23 | 710001194 | SWITCH COVER - Call your local BRP dealership |
| 24 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 25 | 234062410 | Flat Washer 6 mm |
| 26 | 293830091 | Rubber Bumper |
| 28 | 710001148 | HOUSING - Call your local BRP dealership |
| 29 | 710001149 | LOCK - Call your local BRP dealership |
| 30 | XXX | Not Available As Spare Parts |
| 32 | 710001488 | HOUSING SWITCH - Call your local BRP dealership |
| 33 | 710001328 | Connector Support |
| 34 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 35 | 710002074 | MOULDING - Call your local BRP dealership |
| 36 | 390402400 | Pop Rivet 3/16" |
| 37 | 705202289 | HOUSING SUPPORT - Call your local BRP dealership |
| 38 | 250000349 | Torx Truss Screw M6 X 10 |
