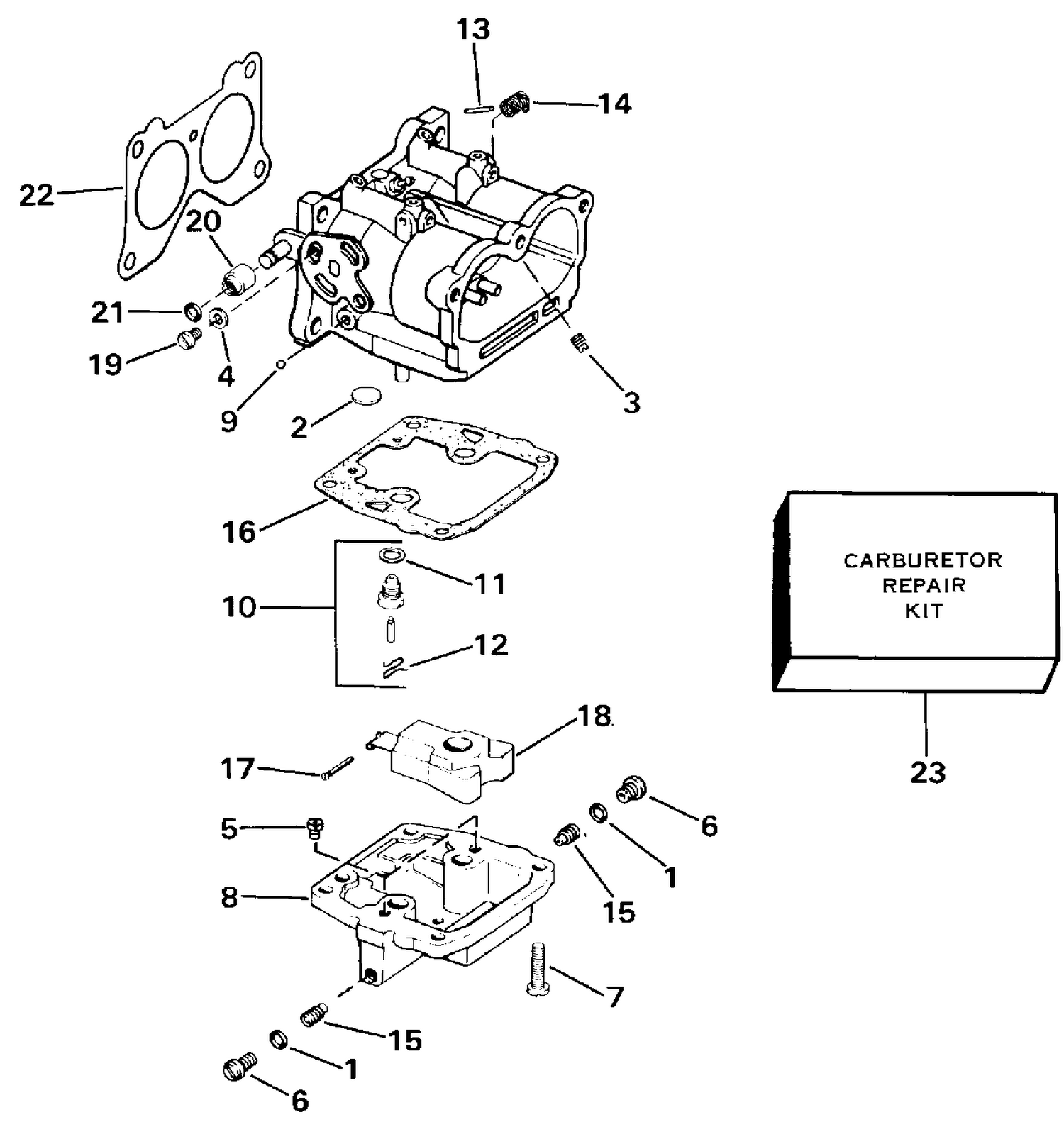

| Ref | Part Number | Description |
|---|
| 3 |
0282936 |
ORIFICE, Idle air bleed, No. 28 |
| 6 |
0330131 |
CLAMP, Fuel filter |
| 7 |
0319682 |
VIS, capteur vers plaque |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. This part replaces 0393784. |
| 12 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 15 |
0324389 |
ORFICIE PLUG 175 only |
| 16 |
0338884 |
GASKET, Float bowl This part replaces 0323784. |
| 18 |
0383437 |
FLOAT ASSEMBLY |
| 20 |
0330056 |
ROLLER, Cam follower |
| 21 |
0308776 |
O-RING |
| 22 |
0327707 |
GASKET, Air silencer |
| 0393775 |
0393775 |
CARB ASSY., Lower |
| 0393776 |
0393776 |
CARB ASSY., Middle |
