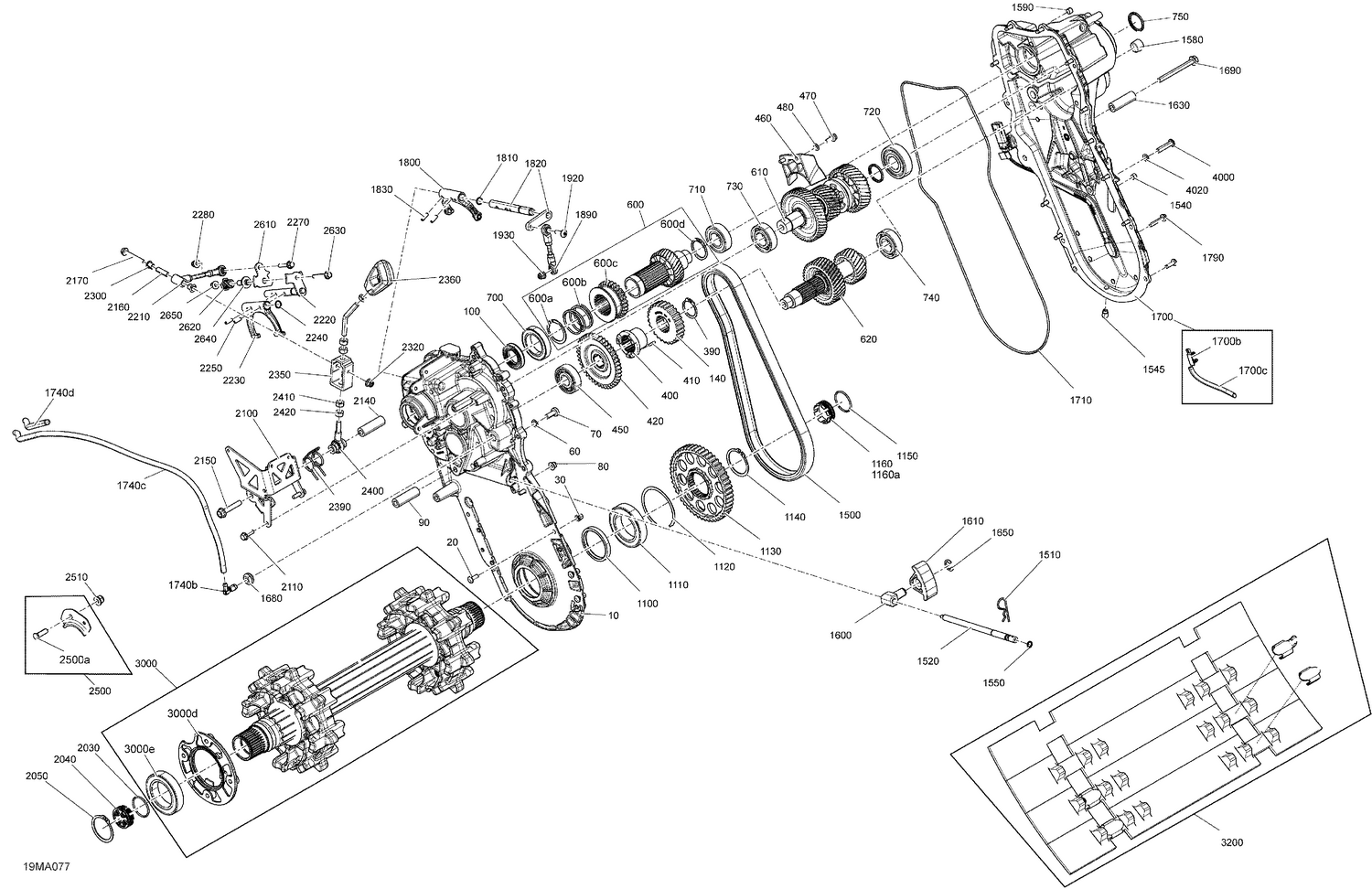

04- Drive - System
Parts (99)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 504154091 | Gearbox Case Ass'y |
| 20 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 30 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 60 | 504082900 | Washer |
| 70 | 250001052 | Torx Screw Button Head M8 x 70 |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 90 | 504153929 | Spacer |
| 100 | 293200168 | Oil Seal |
| 140 | 504153665 | Sprocket 21 Teeth |
| 390 | 293370133 | External Snap Ring |
| 400 | 504153650 | Sleeve Coupling |
| 410 | 570048600 | Alignement Rod |
| 420 | 504154003 | Gear Straight 41 Teeth Ass'y |
| 450 | 293350131 | Ball Bearing |
| 460 | 504153793 | Oil Deflector |
| 470 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 480 | 234061410 | Flat Washer 6 mm |
| 600a | 293370055 | Circlip |
| 600b | 504153690 | Spring Return |
| 600c | 504153502 | Sliding Gear 27 Teeth Machined |
| 600d | 293370183 | External Retaining Ring |
| 610 | 504154126 | Shaft Gearbox Selection Ass'y |
| 620 | 504154127 | Shaft Gearbox Out Ass'y |
| 700 | 293350053 | Ball Bearing |
| 710 | 293350115 | Ball Bearing |
| 720 | 293350117 | Ball Bearing |
| 730 | 504153165 | Ball Bearing |
| 740 | 504153165 | Ball Bearing |
| 750 | 504154145 | Cap |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1130 | 504153997 | Sprocket 51 Teeths |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160a | 504154043 | Cap |
| 1500 | 504152570 | Drive Chain 100 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153627 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1580 | 267000469 | Black, Plastic Plug |
| 1590 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1600 | 504153559 | Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1630 | 504153929 | Spacer |
| 1650 | 293370105 | Circlip |
| 1680 | 414036300 | Grommet |
| 1690 | 230584044 | Hex Flange Screw Din.6921 S.Grip |
| 1700b | 515178223 | Clip Connector |
| 1700c | 415130141 | Braided Sleeve |
| 1710 | 293300288 | O-Ring Seal This part replaces 293300197. |
| 1740b | 414580700 | Male Connector |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 1740d | 503195447 | Protector Tube |
| 1790 | 250001015 | Hex. Flange Screw M6 X 35 |
| 1800 | 504154097 | Fork Ass'y |
| 1810 | 293300202 | O-Ring |
| 1820 | 504154099 | Reverse Axle |
| 1830 | 250400045 | Spring Pin M5 X 16 |
| 1890 | 504153658 | Ball Joint |
| 1920 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 1930 | 233261434 | Flange Elastic Nut M6 |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2100 | 504154146 | Speed Selector Support |
| 2110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 2140 | 504153929 | Spacer |
| 2150 | 207589534 | Hex. Flange Screw Scotch Grip |
| 2160 | 504153648 | Spacer |
| 2170 | 207664544 | Hex. Flange Screw M6 X 45 |
| 2210 | 504154246 | Actuating Rod Ass'y This part replaces 504153994. |
| 2220 | 504154100 | Axle Fork |
| 2230 | 504154101 | Fork |
| 2240 | 293300202 | O-Ring |
| 2250 | 250400045 | Spring Pin M5 X 16 |
| 2270 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 2280 | 233261434 | Flange Elastic Nut M6 |
| 2300 | 504153735 | Bushing |
| 2320 | 233261434 | Flange Elastic Nut M6 |
| 2350 | 504153664 | Extrusion |
| 2360 | 504154138 | Lever & Rod Ass'y |
| 2390 | 504153984 | Lever Arm Spring |
| 2400 | 504153977 | Ball Joint |
| 2410 | 232081414 | Hex. Nut M8 |
| 2420 | 232081414 | Hex. Nut M8 |
| 2500a | 250300028 | Clinch Stud, M8 X 25 |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2610 | 504153980 | Plate |
| 2620 | 707000310 | Spring |
| 2630 | 207664044 | Hex. Flange Screw M6 X 40 |
| 2640 | 504153981 | Sapcer |
| 2650 | 233261434 | Flange Elastic Nut M6 |
| 3000d | 504153886 | Retaining Ring |
| 3000e | 293350059 | Ball Bearing |
| 3200 | 504154206 | Track 24 X 154 X 1,5 |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
